Bellows Sealed Gate Valves, DIN 3352, A216 WCB, DN80, PN25

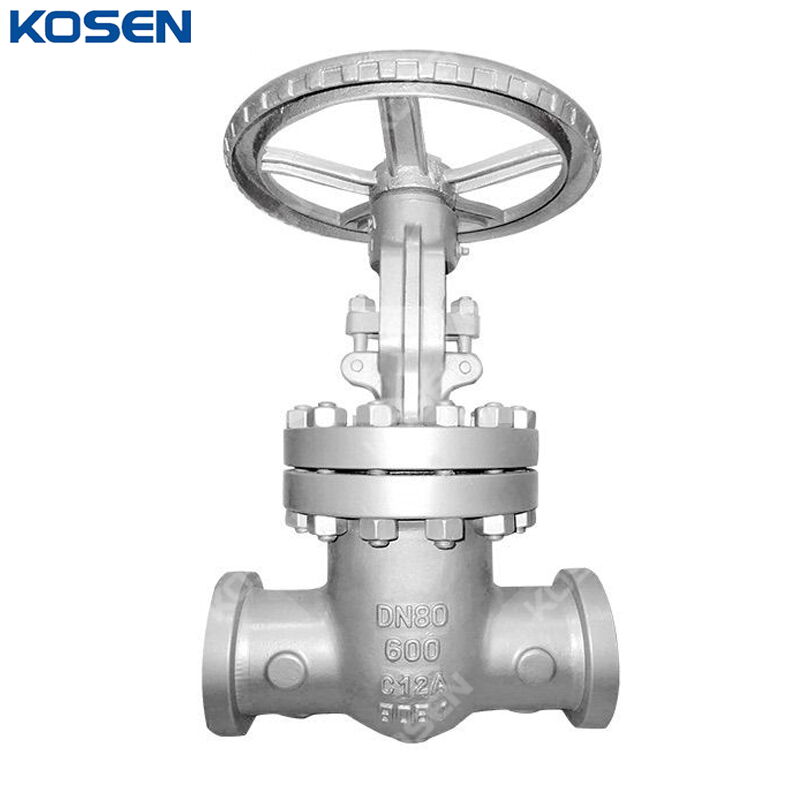

The Bellows Sealed Gate Valves Manufacturer produces high-performance valves designed according to DIN 3352 standards. These valves feature a cast carbon steel body made from ASTM A216 WCB material, ensuring robustness and durability. With a DN80 (3-inch) size and a pressure rating of PN25 (Class 300 LB), they are suitable for demanding industrial applications. The valves are equipped with RF (Raised Face) flanged ends for secure and reliable connections. They are manually operated via a handwheel, providing easy control.

Product Name: Bellows Sealed Gate Valves
Design Standard: DIN 3352
Body Material: ASTM A216 WCB
Size: DN80, 3 Inch
Pressure: PN25, Class 300 LB
End Connection: RF Flanged
Operation: Handwheel
Medium: Water, Oil, Gas, etc
Temperature Range: -29°C to 595°C

Wedge Gate Valves are engineered and produced to guarantee volatile organic compound (VOC) leakage below 100 ppm (parts per million). Extensive baseline laboratory testing, including both static and cycle tests, has established essential design parameters to achieve effective low-emission sealing in the stem packing and bonnet gasket areas. Additionally, a rigorous in-house testing procedure is regularly conducted to ensure that the standard design and manufacturing processes consistently deliver Wedge Gate Valves with VOC leakage not exceeding 100 ppm before shipment.

Technical Specifications

» Product Type: Wedge Gate Valve
» Nominal Diameter: DN50 to DN1000
» Design Pressure: PN6 to PN25
» Body / Bonnet / Wedge Materials: Carbon Steel (EN 1.0619), Stainless Steel (EN 1.4308, EN 1.4408), Alloy Steel (EN 1.7335/ASTM A217 WC6)
» Stem Material: X20Cr13 (EN 1.4021), Stainless Steel (EN 1.4308, EN 1.4408)
» Seat Material: 13Cr, 18Cr, Stellite
» End Connections: Raised Face (RF) Flange, Groove Flange, Butt Weld (BW)
» Operation Modes: Handwheel, Bevel Gear, Electric Actuator, Pneumatic Actuator
» Structural Design: BB-BG-OS&Y (Bolted Bonnet, Outside Stem & Yoke)
» Design Standard: DIN 3352
» Face-to-Face Dimension: EN 558-1, Series 15 (DIN 3202 F5)
» Flanged Ends: DIN 2543–2547, EN 1092-1, GOST 12815 / 12819
» Butt Welded Ends: EN 12627
» Testing & Inspection: DIN 3230

Product Features

» Anti-Friction Ball Thrust Bearing: Minimizes friction between mating components to ensure smooth and reliable operation.
» Grub Screw: Securely fastens the yoke nut within the bonnet for enhanced structural integrity.
» Grease Nipple: Facilitates easy lubrication of moving parts, supporting long-term performance.
» OS&Y Design (Outside Stem and Yoke): Provides clear visual indication of valve position and improves maintenance access.
» Metal-Seated Design: Available in multiple trim configurations, including Trim #1, #5, #8, #10, and others, to suit various service conditions.
» Optional Locking Device or Stem Extension: Enhances operational safety and accessibility.
» ISO 5211 Direct Mounting Option: Allows for direct actuator installation without the need for intermediate brackets.
» Full Port Design: Ensures unrestricted flow and minimizes pressure drop across the valve.
