ASTM A182 F316 Wafer Check Valve, API 594, 2 Inch, CL1500

The ASTM A182 F316 Wafer Check Valve features a dual plate design in accordance with API 594 standards, ensuring efficient and reliable operation. The valve has a stainless steel body made from high-quality ASTM A182 F316 material, offering excellent corrosion resistance and durability. With a size of 2 inches (DN50) and a pressure rating of 1500 LB, equivalent to PN250, it is designed for high-pressure applications.

Product Name: ASTM A182 F316 Wafer Check Valve, Dual Plate
Design Standard: API 594
Body Material: ASTM A182 F316
Size: 2 Inch, DN50
Pressure: Class 1500 LB, PN250
End Connection: Wafer

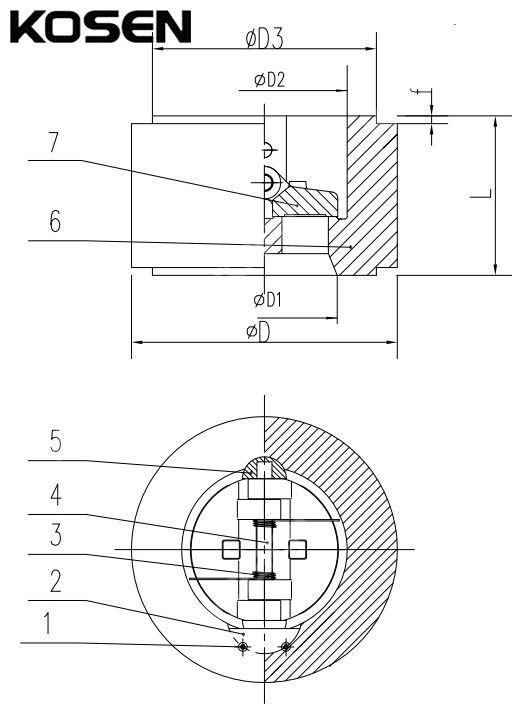

We specialize in manufacturing wafer check valves featuring a center vertical pin shaft design. When the valve is open, the fluid’s resultant force acts on the center of the disc's sealing face, while the counter spring support force acts at the disc's center. This design causes the root of the disc to open first, minimizing wear on the sealing surface, which is a common issue in older conventional valves. The wafer check valve operates automatically, opening and closing in response to the medium's flow, and is used to prevent reverse flow.

Technical Specifications

» Nominal Diameter: NPS 2–60 Inch (DN50–DN1500)
» Design Pressure: Class 150–2500 (PN10–PN420)
» Materials: ASTM A216 WCB, WCC, A217 WC6, WC9, C5, C12A, A352 LCB, LCC, A351 CF8, CF8M, CF3M, CF8C
» End Connections: Wafer, Lug, Clamp, Flanged
» Design and Manufacture Standards: API 594, API 6D, JB/T 8937
» Face-to-Face (End-to-End): API 594, API 6D, JB/T 8937, DIN 3202
» Flanged Connection Standards: ANSI B16.5, DIN 2543–48, JB/T 9112–24
» Butt Welded End Standards: ANSI B16.25
» Test and Inspection Standards: API 598, DIN 3230, JB/T 9092
» Temperature Range: -29°C to 595°C
» Medium: Water, gas, oil, etc.

Product Features

» Light and compact design for easy installation and space-saving
» Zero leakage sealing with soft-seated technology for reliable performance
» Non-slam design to prevent damage from sudden closure
» Bubble-tight shut-off for excellent sealing and leak prevention
» Discs open up to 85° to ensure low pressure drop and smooth flow
