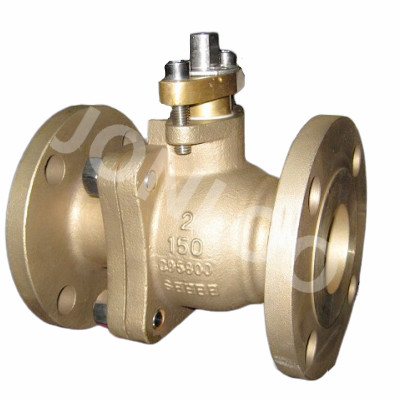

Al-Bronze Floating Ball Valve, API 6D, C95800, 4*3 IN, CL150

The Aluminum Bronze Floating Ball Valve is a high-performance valve designed for seawater, offshore, and marine applications. Constructed from ASTM B148 C95800 aluminum bronze, it offers exceptional corrosion resistance and durability in harsh environments. This reduced port, 4 * 3 inch valve complies with API 6D standards and operates at a Class 150 LB pressure rating. Ideal for fluid control in critical systems, it ensures reliable performance in marine and offshore installations.

Product Name: Aluminum Bronze Floating Ball Valve, Reduced Port
Type: Floating Ball Valve
Design Standard: API 6D
Body Material: ASTM B148 C95800
Size: 4 * 3 Inch, DN100*DN80
Pressure: Class 150 LB, PN20
End Connection: RF Flanged
Operation: Lever
Application: Seawater, Offshore and Marine

Product Description

The Cast Floating Ball Valve is a high-quality valve designed to provide reliable fluid control. The valve features a floating ball supported by two PTFE seats, one on the upstream side and the other on the downstream side. When the upstream pressure acts on the ball, it compresses the downstream seat, ensuring a complete shut-off of fluid flow. All Cast Floating Ball Valves are manufactured with high-quality castings and are certified for fire safety according to BS 6755, API 607, and API 6FA. They also meet all applicable ASME standards. Available in One Piece Uni-body, Two Piece Split Body, and Three Piece Bolted Body configurations, these valves are designed and manufactured to the latest international standards, including API 6D, ASME B16.34, and BS 5351 or their equivalents. Standard features include Fire Safe, Anti-static, and Blow-out prevention.

Technical Specification

» Product: Cast Floating Ball Valve
» Size Ranges: NPS 1/2-10 Inch (DN15-DN250)
» Temperature Range: -46°C to 120°C
» Design Pressure: Class 150 - 600 LB (PN10-PN100)
» Materials: ASTM B148 C95400, C95500, C95800, ASTM B150 C63000, C63200
» Trim Materials: Monel K500, Duplex Stainless Steel
» Seat Materials: NYLON, RPTFE, PEEK
» End Connections: FF and RF Flange
» Operation: Handle, Worm Gear, Electric, Pneumatic
» Design and Manufacture: API 6D, BS 5351, ASME B16.34
» Face to Face (End to End): ASME B16.10
» Flanged Connection: ASME B16.5
» Test and Inspection: API 598, API 6D
» Fire Safety: API 607, API 6A

Product Features

» Low Operating Torque: Ensures easy operation and reduced wear.
» Emergency Sealing Device: Provides additional security in case of emergencies.
» Fireproof Structure Design: Certified to API 607 and API 6A for fire safety.
» Anti-static Structure: Prevents the buildup of static electricity.
» Reliable Seat Sealing Structure: Ensures tight shut-off and long service life.
» Special Structure for Automatic Pressure Relief Towards Upstream: Enhances safety by relieving excess pressure.
» Blow-out Proof Stem: Features a stem flyout prevention structure for added safety.
» Corrosion Resistance and Sulfide Stress Resistance: Ensures durability in harsh environments.
» Optional Locking Device or Stem Extension: Provides additional control and security options.
» Optional Direct Mounting to ISO 5211: Allows for easy integration with actuation systems.
» Full Port or Reduced Bore: Offers flexibility in flow control and system design.
