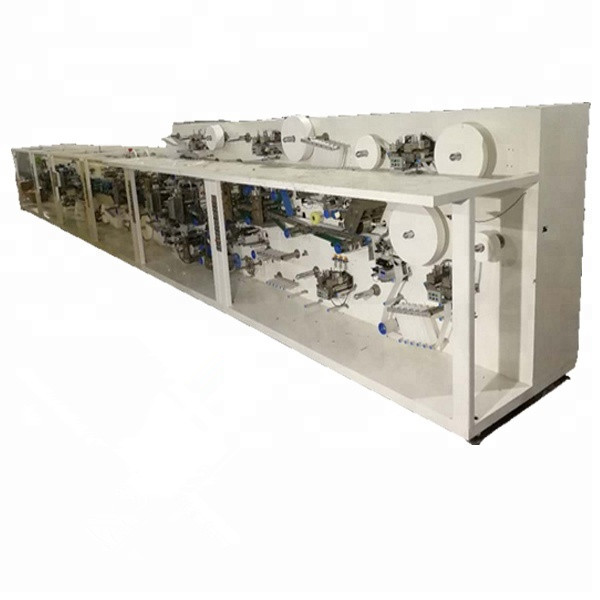

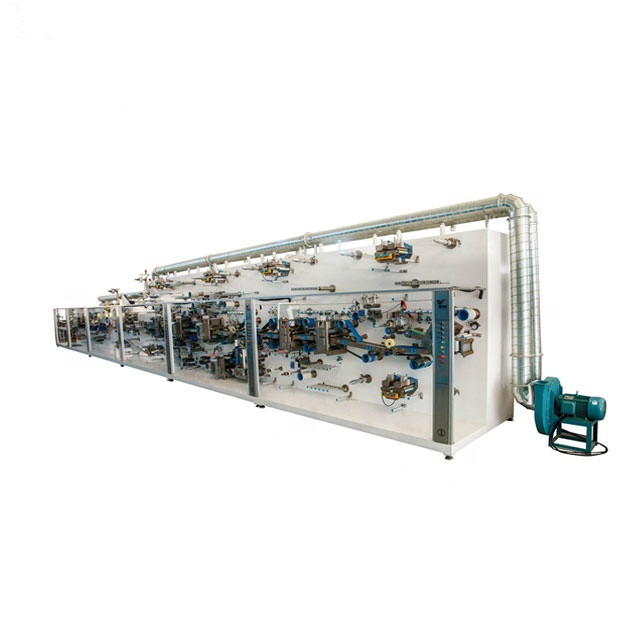

Affordable and Functional Sanitary Napkin Production Line

Name: Affordable and Functional Sanitary Napkin Production Line
SKU: HM-231018-SNM-17
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Experience affordability and functionality with our Sanitary Napkin Production Line. Capable of reaching a maximum design speed of 1200 pieces per minute, these machines feature a full-servo auto-controlling system and user-friendly PLC operation for efficient production.

Request a quote

Detail Information

Affordable and Functional Sanitary Napkin Production Line

Subject	Parameter
Stable Working Speed	600-1200pcs/min (By order)
Pass Percentage	≥98%
Operating Rate	≥85%
Power Supply	380V 50Hz
Electrical Supply	380V ±5%, 50Hz Three-phase four-wire + ground wire
Power Installed	About 180KW (Not included hot melt glue machine)
Supply Pressure	0.6-0.8Mpa
Machine Sizes (L× W× H )	22.0m× 5.5m× 3.5m(L× W× H )(Only for reference)
Main Engine Sizes (L× W× H )	32m× 9.0 5.0m (L× W× H ) ( Only for reference)
Machine Color	Customerized

Key Features:

Full-servo auto-controlling system ensures high automation. The machine can be upgraded to meet specific customer requirements.
Precision Spare Parts: Many spare parts are precisely processed using numerical control, and key mechanical components undergo CNC processing. The main outsourced parts feature world-famous brands.
User-Friendly Interface: The operating interface utilizes industry-standard PLC with user-friendly design, including optional features for collecting production records.
Camera Monitoring: The equipment is compatible with a camera monitoring system, enabling online size checks, location inspections, missing item detection, stain spot scanning, and more.
Vertical Output Option: The machine offers a vertical output design for added flexibility.

Automation Configuration:

Dual-Layer Backside Drive: Size adjustments require replacing only 2 timing belts.
Controlled Material Holders: Each raw material holder includes a frequency-controlled motor for winding and unwinding with constant tension control. The release paper holder, wing release paper holder, and easy tape holder do not feature frequency-controlled motors. (There are 12 sets of frequency-controlled motors for raw materials).
Temperature Regulation: Temperature is controlled by sensors and temperature controllers.
Synchronized Heating Rollers: The heating roller cylinders operate in sync with the machine.
Safety Measures: Safety units are incorporated for all cutting tools.
