JIS F7313 Marine Globe Valve, JIS SC480, 32A, 20K, 1-1/4 IN

Product Name: JIS F7313 Marine Globe Valve
Design Standard: JIS F7313
Body Material: Cast Steel JIS SC480
Size: JIS 32A, 1-1/4 Inch
Pressure: JIS 20K
End Connection: RF
Operation: Handwheel

Product Range

Port Size: JIS 32A-250A (1-1/4 to 10 Inch)
Pressure: JIS 20K
Structure: Upper Threaded Stem Stop Valve
Temperature Range: -29°C to 345°C
Body Material: SC480
Connection: RF Flange
Medium: Sea Water, Fresh Water, Oil, etc.

A marine globe valve is a critical component used to control the pressure, flow rate, and direction of fluids within ship pipelines, ensuring the system adapts to the unique environmental conditions of marine vessels. This type of valve functions as a control device, allowing for the regulation of fluid flow by starting or stopping it, changing its direction, adjusting pressure and flow rate, and protecting the overall integrity and operation of pipeline equipment. Its design is ideal for precise flow control in marine applications.

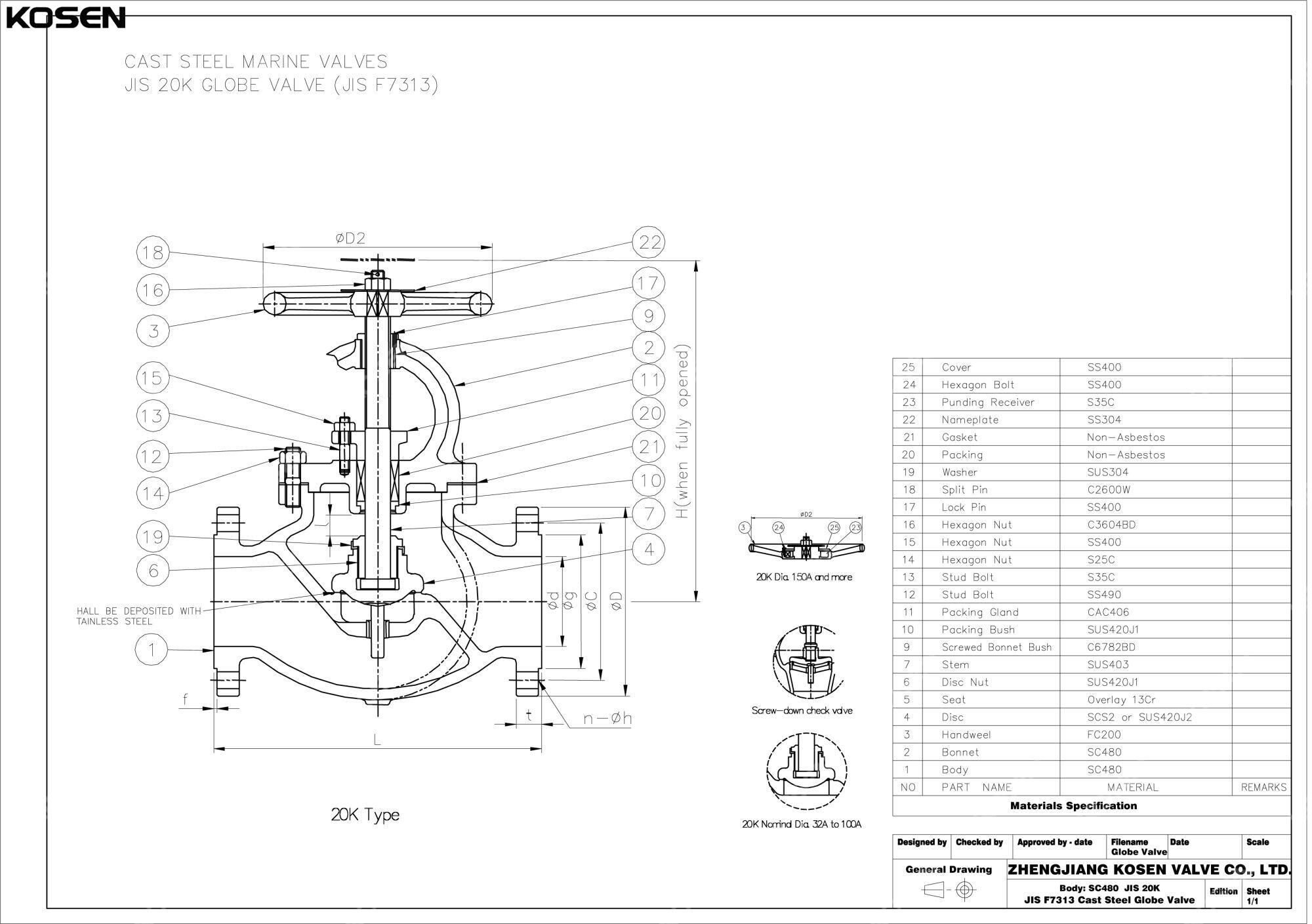

Materials of Main Parts
