JIS SC480 Globe Valve, JIS F7317, 80A, 40K, 3 Inch, SDNR, RF

The JIS SC480 Marine Globe Valve is designed for marine and industrial applications, featuring a screw-down non-return structure for reliable flow control. Built in accordance with JIS F7317, this 3-inch (JIS 80A) valve operates at JIS 40K pressure ratings. It is equipped with RF flanged ends for secure and easy installation, and is manually operated using a handwheel for precise control.

Product Name: Cast Steel Globe Valve, SDNR
Structure: Screw Down Nom Return
Design Standard: JIS F7317
Body Material: SC480
Size: JIS 80A, 3 Inch
Pressure: JIS 40K
End Connection: RF Flanged
Operation: Handwheel

Product Range

Structure: Screw Down Non-Return (SDNR)
Port Size: JIS 32A-150A, 1-1/4 Inch - 6 Inch
Pressure: JIS 30K, JIS 40K
Temperature Range: -29°C to 345°C
Body Material: SC480
Connection: RF Flange
Medium: Sea water, fresh water, oil, etc.

Marine valves are crucial devices used to regulate the pressure, flow rate, and direction of fluids within ship pipelines, tailored to the specific environmental conditions encountered at sea. These valves serve as control devices in fluid systems, with core functions that include starting or stopping the flow, altering the flow direction, adjusting pressure and flow rate, and ensuring the safe and efficient operation of pipeline equipment.

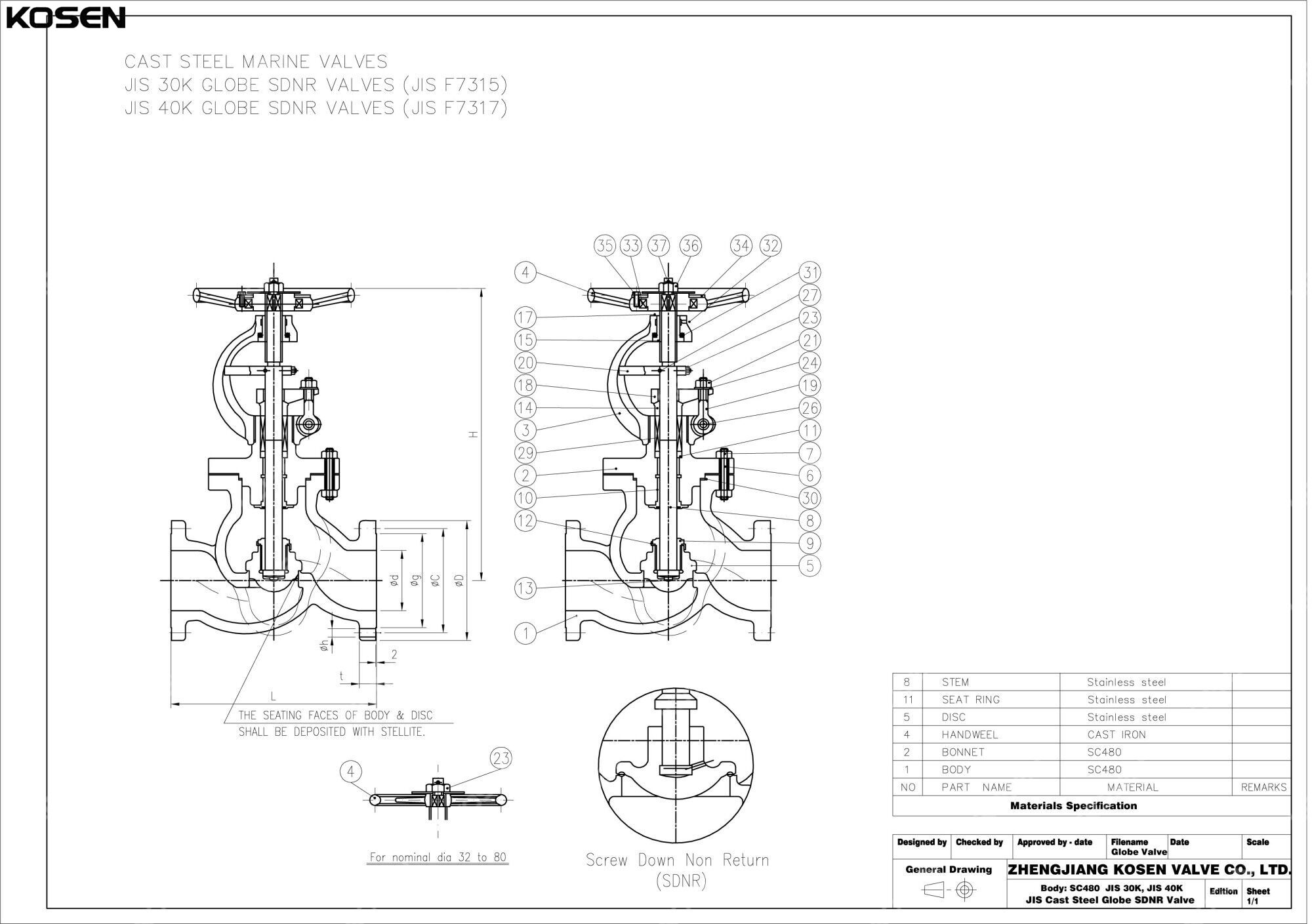

Materials of Main Parts
