Understanding the Globe 3-Way Control Valve: Functionality, Configurations, and Industrial Applications

Introduction

In complex process control systems across industries such as chemical processing, HVAC, power generation, and water treatment, precise regulation of fluid flow is essential for efficiency and reliability. One key component that facilitates this level of control is the Globe 3-Way Control Valve. Designed for mixing or diverting fluid flow, this valve plays a crucial role in maintaining process stability and optimizing system performance.

This article explores the working principles, configurations, benefits, and applications of Globe 3-Way Control Valves, offering a comprehensive overview for engineers, plant operators, and procurement professionals.

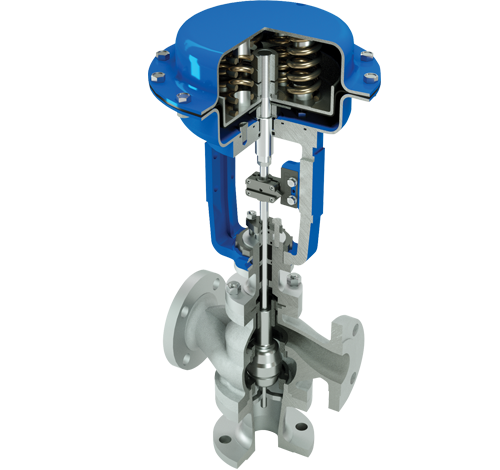

What Is a Globe 3-Way Control Valve?

A Globe 3-Way Control Valve is a type of control valve featuring three ports, typically labeled as A, B, and AB (or sometimes M for "Mix"). Unlike traditional two-way globe valves that allow flow in a single direction from inlet to outlet, the three-way variant introduces flexibility by allowing the flow to be split, diverted, or mixed, depending on the operational requirements.

Its internal design includes a plug or disc and a guiding mechanism that controls the passage of fluids through different paths. These valves are often used in temperature control loops, mixing stations, or systems requiring alternating flow paths.

Main Configurations of Globe 3-Way Control Valves

Globe 3-way valves are categorized based on how they handle fluid flow:

1. Mixing Valve Configuration

In the mixing configuration, two separate streams of fluid enter through ports A and B and mix within the valve body. The blended fluid then exits through the common port AB. This setup is ideal for applications such as:

Mixing hot and cold water in HVAC systems

Blending two different process fluids

Controlling temperature-sensitive equipment

The degree of mixing can be precisely regulated by adjusting the valve plug’s position, which determines how much fluid enters from each inlet.

2. Diverting Valve Configuration

In this setup, fluid enters through the common port AB and is diverted to either port A or B based on the position of the internal plug. The diverting design is commonly used in:

Routing fluid between two destinations

Switching between heat exchangers

Controlling flow in parallel processing lines

This configuration provides a clean, efficient way to alternate between two flow paths.

3. Universal Valve Configuration

The universal or "combination" design offers the most flexibility. It allows both diverting and mixing functions within the same valve, making it highly adaptable for changing process needs. This configuration can:

Mix flows and send them to a single outlet

Divert a single inlet to multiple outlets

Be reconfigured to act as a mixing or diverting valve as needed

This versatility is particularly valuable in modular or dynamic systems.

Working Principle of Globe 3 Way Control Valve

The operation of a globe 3-way valve is based on the movement of a plug or disc within a valve body, guided by a stem and actuator. Here’s how the system functions:

Flow Paths

Port A and Port B: Serve as inlets or outlets depending on configuration

Port AB (or M): The common port connected to the valve chamber

The plug moves within the chamber to open or close specific flow paths, regulating the amount of fluid passing through each port.

Flow Regulation

By adjusting the plug’s position:

In a mixing valve, the plug modulates the flow from A and B to ensure precise blending before discharge through AB.

In a diverting valve, the plug shifts flow from AB to either A or B.

In a universal valve, it performs both tasks based on demand.

Actuation and Control Mechanisms

Three-way globe control valves are typically automated using:

Pneumatic actuators: Air pressure moves the valve plug via a diaphragm or piston.

Electric actuators: An electric motor positions the plug with high accuracy.

Hydraulic actuators: Used in high-force applications where liquid pressure offers better control.

These actuators are integrated with a controller that receives process signals (temperature, pressure, flow rate) and adjusts the valve position accordingly for optimal performance.

Advantages of Globe 3-Way Control Valves

Three-way globe control valves offer a suite of operational and maintenance benefits:

Versatile Flow Control: Capable of diverting, mixing, or a combination of both.

Compact System Design: Eliminates the need for multiple valves, reducing space and complexity.

Enhanced Precision: Equal percentage or linear flow characteristics allow accurate regulation.

Low Leakage: Tight shut-off capabilities help minimize losses.

Robust Guidance System: Provides excellent plug alignment and reduces wear.

Ease of Maintenance: All trim parts are accessible and removable without disturbing pipework.

Emissions Control: Low-emission stem packing options meet stringent environmental standards.

Materials and Construction

To suit a wide range of industrial environments, globe 3-way control valves are constructed from various materials:

Body Materials: Carbon steel, stainless steel (304/316), bronze, ductile iron, or exotic alloys like Hastelloy and Monel

Trim Materials: Hardened stainless steel, stellite, or tungsten carbide for erosion resistance

Seals and Packing: PTFE, graphite, or other advanced polymers for high-temperature or chemical resistance

Each material selection depends on the process fluid’s temperature, pressure, and chemical properties.

Applications Across Industries

The globe 3-way control valve’s ability to manage complex flow paths makes it indispensable in various sectors:

HVAC Systems

Used in chilled water systems, hot water loops, and air handling units to mix or divert water based on demand, improving energy efficiency.

Chemical and Petrochemical

Allows blending of process chemicals or switching flow paths during batch processing. Also used for temperature-sensitive reactions.

Power Generation

In turbine cooling or lubrication systems, the valves help mix or reroute fluids to maintain optimal equipment performance.

Food and Beverage

Enables safe and hygienic mixing of fluids during production and CIP (clean-in-place) procedures.

Pharmaceutical and Biotech

Used in sterile fluid handling where contamination must be avoided. Materials are often compliant with FDA or USP standards.

Installation and Maintenance Tips

Proper installation and regular maintenance are key to long-term valve performance:

Installation

Ensure correct flow direction based on valve marking

Use proper gaskets and torque to avoid leaks

Mount actuators according to the manufacturer’s alignment guides

Consider accessibility for future servicing

Maintenance

Periodic inspection of trim components for wear or scaling

Lubrication of moving parts where applicable

Testing actuators for responsiveness and range

Replacing stem seals to prevent fugitive emissions

A well-maintained globe 3-way control valve can operate reliably for years with minimal downtime.

Choosing the Right Control Valve for Your Process

When selecting a globe 3-way control valve, consider:

Flow characteristics (linear or equal percentage)

Pressure and temperature ratings

Material compatibility with process fluids

End connections (flanged, threaded, welded)

Actuation method (manual, pneumatic, electric)

Certifications (API, ASME, ISO)

Customizable options such as jacketed bodies, anti-cavitation trims, or smart positioners can further enhance performance.

Conclusion

The Globe 3-Way Control Valve is a powerful tool in the modern industrial landscape. With its ability to mix and divert flow paths efficiently, its robust design, and high level of precision, it provides unmatched control for complex fluid systems. Whether you're engineering a sophisticated HVAC network or fine-tuning a chemical process line, choosing the right three-way globe valve can significantly impact your operation’s efficiency, safety, and sustainability.

As industries continue to push for smarter, more flexible process solutions, the Globe 3-Way Control Valve remains a cornerstone of modern flow management—reliable, adaptable, and indispensable.
