API 599 Orbit General Valve, ASTM A216 WCB, 16 Inch, 300 LB

Product Name: Orbit General Valve, Twin Seal Plug Valve
Design Standard: API 599
Body Material: ASTM A216 WCB
Size: 16 Inch, DN400
Pressure: Class 300 LB, PN25
End Connection: RF Flange
Operation: Handwheel

When the twin seal orbit valve is fully open, the plug channel aligns with the valve body channel, ensuring minimal pressure drop. Rotating the handwheel causes the plug to move towards the valve, which in turn drives the valve disc to rotate 90 degrees. As the handwheel continues to turn, the plug is pressed down, forcing the valve disc against the valve seat to close. Rotating the handwheel in the opposite direction first raises the plug to release the valve disc from the seat. Continued rotation of the handwheel rotates the valve disc 90 degrees, aligning the plug channel with the valve body channel, leaving the valve fully open.

Technical Specifications

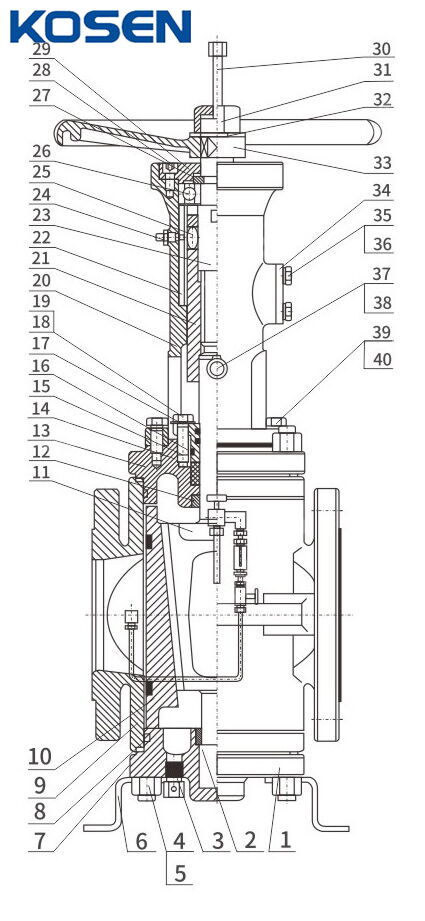

Structure: Twin Seal Orbit Plug Valve
Nominal Diameter: NPS 2-36 Inch (DN50-DN900)
Design Pressure: Class 150-900 LB, PN20-PN150
Materials: ASTM A216 WCB, WCC, A217 WC6, WC9, C5, A352 LCB, LCC, A351 CF8, CF8M, CF3M, CF8C
Design Standard: API 6D, API 599
Face to Face: ASME B16.10
Connection Ends: RF, RTJ
Test Standard: API 598, ISO 5208
Design Temperature: -46°C to +300°C
Applicable Mediums: Water, Steam, Oil, Gas, etc.
Operation Types: Lever, Gear Box, Electric, Pneumatic, Hydraulic

Product Features

» Reliable Sealing: The valve features a well-designed structure with reliable sealing achieved through sealing rings around the valve disc.
» Enhanced Protection: It incorporates unique protection with wallow-tailed sink and fixed sealing rings for improved durability.
» Double-Direction Flow: The valve's double-direction flow design simplifies installation and operation.
» Customizable Configuration: The materials and flange sizes can be tailored to meet specific operational conditions or customer requirements, ensuring versatility for various engineering applications.
» Excellent Performance & Appearance: The valve combines strong performance with an aesthetically pleasing design.
