ASTM A182 F51 Trunnion Ball Valve, API 6D, 10 IN, 1500 LB

Key Specifications / Features

Model No.: Hits: 21

DSS ASTM A182 F51 Trunnion Ball Valve Supplier: Forged Duplex Stainless Steel ASTM A182 F51 Trunnion Mounted Ball Valves, API 6D, 10 Inch, 1500 LB, RF Ends.
Request a quote Share

Detail Infomation

Forged Steel A182 F51 Ball Valve, API 6D, Full Bore, Trunnion Mounted Ball, PEEK SEAT, Flange Ends, 1500 LB, 10 Inch

Name: API 6D Ball Valve
Size: 10 Inch
Class: 1500 LB
Constuction: Full Bore
Connection Ends: Flanged RF
Material: DSS ASTM A182 F51
Standard: API 6D

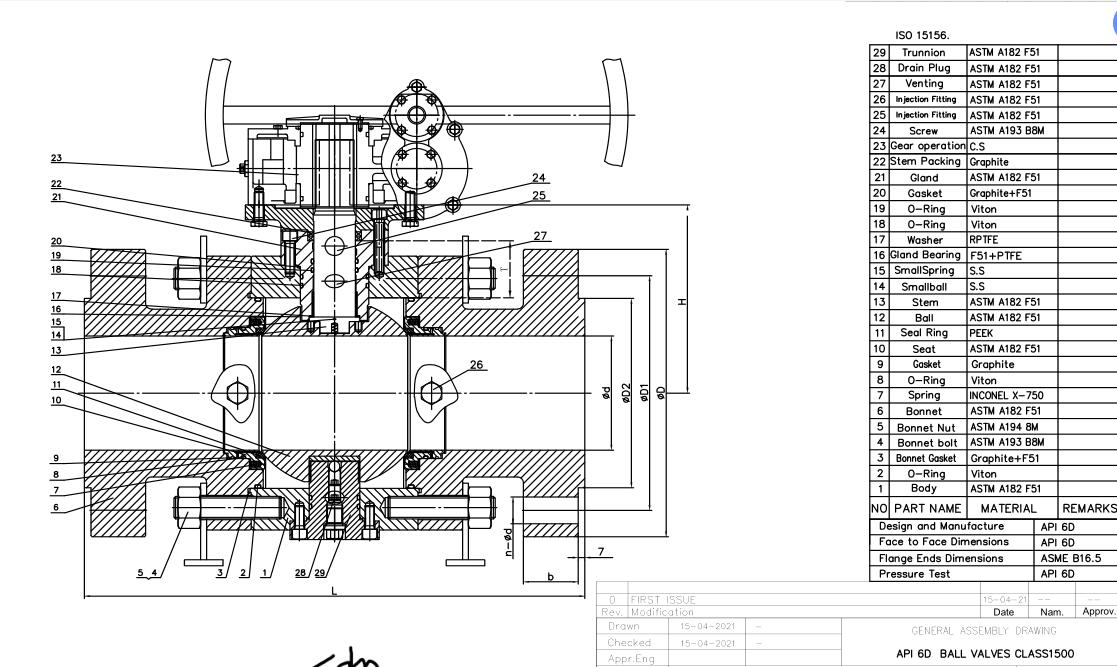

Technical drawing:
Technical Drawing
