What Is a Bellows Gate Valve and How Does It Work?

Introduction

Bellows gate valves are a specialized type of industrial valve designed to eliminate fluid leakage, especially in critical applications where toxic, hazardous, or high-purity media is involved. They play a vital role in systems that demand zero emissions and high sealing integrity—such as petrochemical processing, power generation, pharmaceuticals, and natural gas transport.

Unlike standard gate valves, bellows gate valves are engineered with a flexible metallic bellows welded to the valve stem and bonnet. This key design feature ensures hermetic sealing and prevents process fluids from escaping into the environment through the stem area. Their reliable performance and environmental safety make bellows seal valves an essential component in fluid handling systems that involve dangerous or sensitive media.

This article explores the construction, working principles, material choices, applications, and types of bellows used in gate valves.

What Is a Bellows Gate Valve?

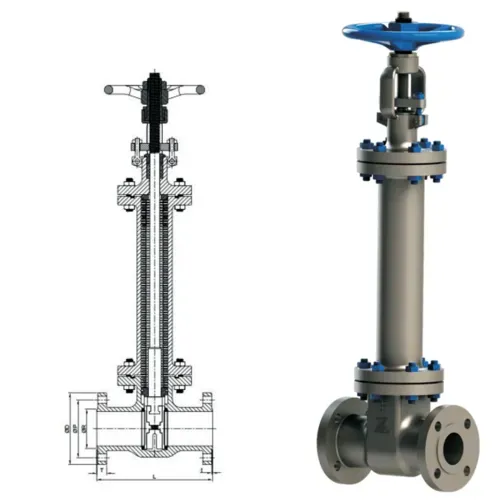

A bellows gate valve is a linear-motion valve used to start or stop the flow of fluid in a pipeline. It incorporates a metallic bellows element to provide a zero-leakage stem seal. The bellows is a cylindrical, accordion-like component that expands and contracts with the movement of the valve stem, maintaining a tight seal and preventing the escape of fluid, even under high pressure or temperature conditions.

The valve's structure includes:

Valve body

Gate (wedge)

Stem

Bellows unit (welded to stem and bonnet)

Bonnet

Handwheel or actuator

This design eliminates the need for conventional stem packing, which can wear out and leak over time, especially under demanding operating conditions. The double-sealing system often consists of the bellows as the primary seal and conventional packing as a backup, offering enhanced operational safety.

How Does a Bellows Gate Valve Work?

The operation of a bellows gate valve is similar to that of a traditional gate valve. Turning the handwheel (or operating the actuator) moves the valve stem and the gate (wedge) up or down inside the valve body to allow or stop the flow of media.

However, in a bellows gate valve, the stem is encased within a welded metal bellows. This bellows expands and contracts with the stem’s movement, maintaining an effective seal without any rotational or sliding movement along the sealing surfaces. This eliminates the risk of process media leaking through the stem packing.

Step-by-Step Operation

Valve Opening:

The handwheel or actuator rotates, lifting the stem upward. As the stem rises, the bellows expands vertically while remaining completely sealed to both the stem and bonnet. The gate (or wedge) lifts off the seat, allowing fluid to flow through the valve.

Valve Closing:

Reversing the motion causes the stem to move downward. The bellows compresses, and the gate is pressed back onto the seat, stopping the fluid flow. The bellows prevents leakage along the stem throughout the process.

This design minimizes friction between moving parts and sealing surfaces, making bellows gate valves suitable for applications involving frequent operation, high-cycle usage, or high-pressure environments.

Material Selection for Bellows Gate Valves

Bellows gate valves are manufactured using a variety of metals based on the requirements of the application. The selection of materials is crucial to ensure durability, corrosion resistance, temperature stability, and mechanical integrity.

Common Materials

Valve Body Materials:

Carbon Steel: Suitable for general-purpose, non-corrosive applications.

Stainless Steel (304, 316, 316Ti): Offers corrosion resistance for aggressive fluids.

Duplex and Super Duplex Stainless Steel: Suitable for high-pressure and highly corrosive media.

Alloy Steels (e.g., WC6, WC9): Used in high-temperature steam or thermal oil systems.

Bellows Materials:

316Ti Stainless Steel: Good corrosion resistance and elevated temperature performance.

Inconel 625 (Alloy 625): Excellent fatigue resistance and oxidation protection.

Hastelloy C276: High resistance to acids and harsh chemical environments.

Incoloy and Monel: For extreme corrosion resistance in acidic and alkaline media.

The mechanical and fatigue properties of the bellows material are especially important. Higher strength and elasticity ensure the bellows can withstand thousands of compression-expansion cycles without failure.

Applications of Bellows Gate Valves

Bellows gate valves are widely used in systems where stem leakage can result in serious environmental, safety, or operational consequences. Their robust sealing performance makes them the valve of choice in the following industries:

1. Chemical and Petrochemical Plants

Used to handle toxic, corrosive, or volatile chemicals such as chlorine, ammonia, and sulfuric acid. These applications demand complete stem sealing to protect workers and the environment.

2. Oil and Gas Pipelines

Deployed in upstream and downstream systems for media such as natural gas, hydrogen, and other hydrocarbons. Preventing fugitive emissions is a critical concern in this sector.

3. Power Generation

Bellows valves are used in high-pressure steam systems in thermal and nuclear power plants. The bellows ensure tight sealing under rapid temperature and pressure changes.

4. Pharmaceutical and Food Industries

Used where product purity and zero contamination are mandatory. Stainless steel bellows valves maintain cleanliness and ensure sterile conditions.

5. Vacuum and Cryogenic Systems

Bellows gate valves are ideal in ultra-high vacuum applications where even minor leaks can ruin the vacuum environment. They are also employed in cryogenic systems handling liquid nitrogen or oxygen.

Benefits of Using Bellows Gate Valves

Bellows gate valves offer several advantages over traditional valves, particularly in high-demand applications. Key benefits include:

Zero Leakage Along the Stem: Eliminates the possibility of stem packing leakage.

Environmental Protection: Reduces fugitive emissions that can be harmful or polluting.

Enhanced Worker Safety: Prevents exposure to toxic or flammable process media.

Long Service Life: Bellows are designed for thousands of operational cycles.

Low Maintenance: No frequent adjustment or replacement of packing is needed.

Compact and Efficient Design: Suitable for installation in tight or hazardous spaces.

Reliable Sealing Performance: Especially under high-pressure, high-temperature, or high-vacuum conditions.

Construction and Types of Bellows

The bellows itself is the heart of the valve. It determines the seal's reliability and the valve’s service life. There are two main types of bellows used in gate valves:

1. Formed Bellows

Made from thin sheet metal (foil) rolled into a tube and longitudinally welded.

Mechanical or hydrostatic methods are used to form the bellows into an accordion-like shape.

Often multi-layered (multi-ply) to improve fatigue strength and pressure resistance.

Cost-effective and suitable for many industrial applications.

2. Welded Bellows

Consist of stacked, washer-like diaphragms welded together at both their inner and outer edges.

Offer higher precision and strength for demanding conditions.

Typically used in vacuum or ultra-clean applications.

Formed bellows are more common in general industrial use, while welded bellows are preferred in applications requiring ultra-tight tolerances and superior performance.

Installation and Maintenance Considerations

Proper installation and routine maintenance are vital for the reliable operation of bellows gate valves. Here are some key points to consider:

Correct Orientation: The valve must be installed upright with the flow direction aligned according to the manufacturer’s guidelines.

System Cleanliness: Foreign particles can damage the bellows. Ensure clean pipelines before installation.

Avoid Over-Tightening: Excess torque during operation can damage the bellows.

Inspection Schedule: Periodic inspection of the bellows’ integrity is recommended, especially in cyclic or high-stress operations.

Backup Packing: Many bellows valves include backup gland packing in case of bellows failure. This acts as a secondary seal to prevent total leakage.

Conclusion

Bellows gate valves are a vital innovation in valve technology, specifically designed to prevent leakage in highly sensitive or hazardous fluid systems. Their unique construction, centered on a metal bellows seal, delivers unmatched stem sealing performance and enhances operational safety.

Whether handling dangerous gases, high-temperature steam, or aggressive chemicals, bellows gate valves provide long-lasting, leak-free operation. Their ability to withstand extreme conditions while protecting both people and the environment makes them indispensable in modern industrial applications.

As environmental standards become increasingly stringent and the demand for zero-emission systems rises, bellows gate valves will continue to play a critical role in maintaining system integrity and safety.
