Wall-Mounted AC Charging Pile: A Convenient and Efficient Solution for EV Owners

Introduction

As electric vehicles (EVs) continue to gain popularity worldwide, the demand for reliable, efficient, and user-friendly charging infrastructure is growing rapidly. Among the many charging options available today, wall-mounted AC charging piles have emerged as a practical and efficient solution for residential, commercial, and fleet-based applications.

Unlike portable EV chargers that require frequent handling and relocation, wall-mounted AC chargers are fixed units designed for long-term use. They offer a seamless charging experience by being easy to install, convenient to operate, and compatible with most electric vehicles on the market. With the rising need for home-based and workplace charging infrastructure, wall-mounted AC charging piles provide a dependable method to keep EVs charged and ready for use while optimizing energy efficiency and reducing electricity costs.

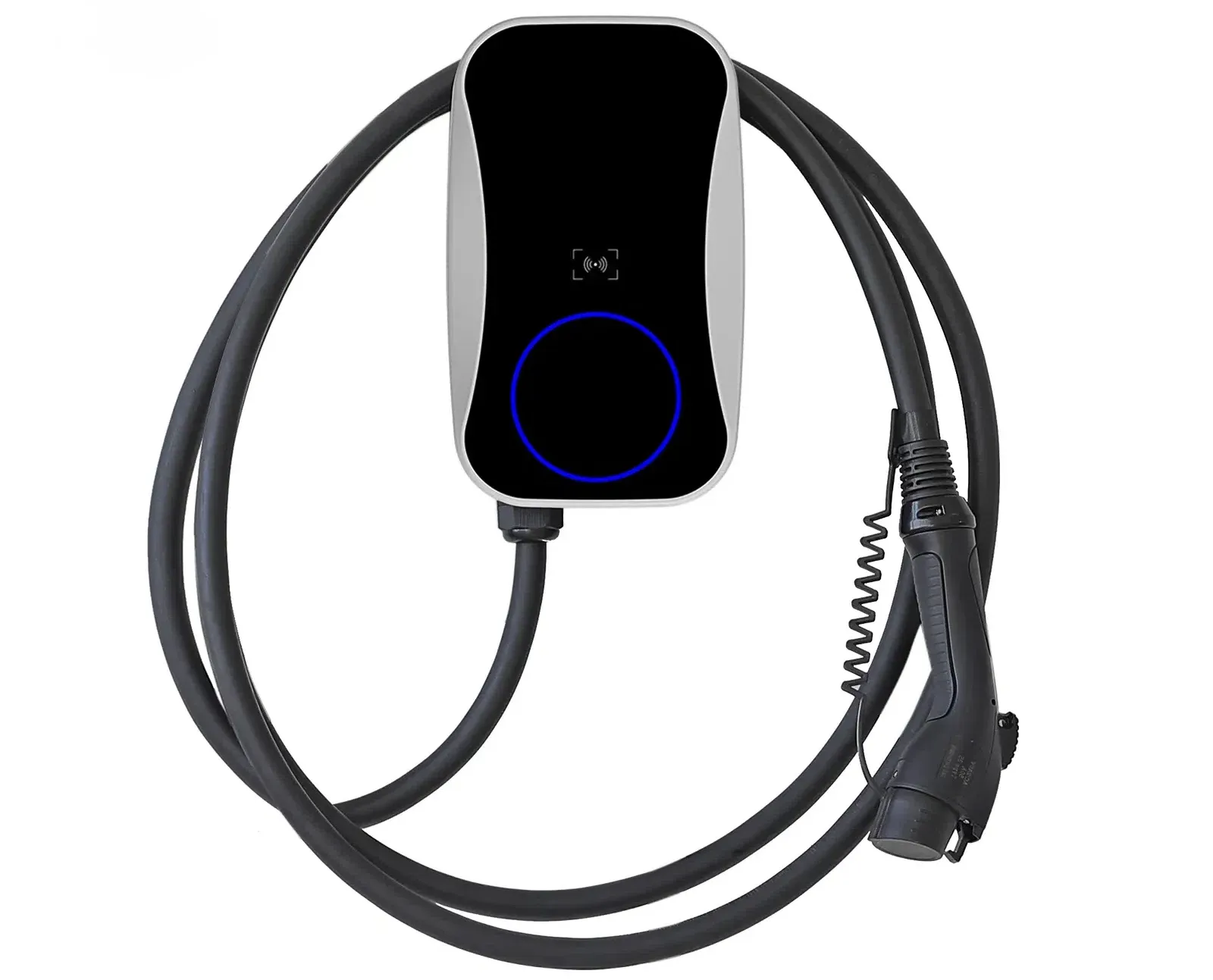

What Is a Wall-Mounted AC Charging Pile?

A wall-mounted AC charging pile is an electric vehicle charger that is affixed to a wall or mounted on a pedestal. It uses alternating current (AC) from the local power supply to charge an EV’s onboard battery management system (BMS). These devices are often designed for Level 2 charging (typically between 6 kW and 11.5 kW), providing faster charging than a standard 120V home outlet but with less complexity and cost than high-power DC fast chargers.

They are suitable for a variety of locations, including:

Residential garages and driveways

Apartment and condo complexes

Office parking lots

Public garages

Commercial fleet depots

This type of EV charger provides a fixed, always-ready charging solution and eliminates the hassle of using portable chargers, especially for daily charging needs.

Key Features of Wall-Mounted AC Charging Piles

Modern wall-mounted chargers are equipped with features that enhance usability, safety, and performance. Below are some of the standout features:

1. Power Output and Performance

Wall-mounted AC charging piles typically offer output power ranging from 6 kW to 11.5 kW, depending on the model and the local power grid. This power range ensures that EVs can be charged at a reasonable speed—typically providing 25–50 kilometers of driving range per hour of charging, depending on the vehicle.

Faster charging times are particularly beneficial for:

Overnight home charging

Quick turnaround for fleet vehicles

Daytime top-up charging at workplaces

2. User-Friendly Interface

Equipped with an intuitive 4.3-inch touchscreen, LED indicator lights, and user guidance functions, these chargers make monitoring and managing charging sessions easy. Users can track real-time charging status, energy consumption, fault alerts, and session history, all at a glance.

Whether for personal use or fleet management, this kind of interface makes the charging experience more transparent and less technically daunting.

3. Advanced Safety Features

Safety is a critical factor in any EV charging infrastructure. Wall-mounted AC chargers come with comprehensive protection systems, including:

Overvoltage protection

Overcurrent protection

Short-circuit protection

Leakage protection

Over-temperature detection

Ground fault detection

With IP65 (dust-tight and water-resistant) and IK08 (impact resistance) ratings, these chargers are built for both indoor and outdoor environments. This makes them highly adaptable, even in regions with challenging weather conditions.

4. Connectivity and Smart Management

Connectivity is a core feature of today’s EV charging infrastructure. Wall-mounted AC charging piles are equipped with Ethernet, Wi-Fi, Bluetooth, and 4G LTE modules, enabling remote control, firmware updates, and energy data reporting.

Support for OCPP 1.6 (Open Charge Point Protocol) ensures interoperability with a wide range of charging platforms and back-end systems. This is especially useful for commercial fleet operations or public charging networks, where centralized control and billing systems are required.

5. Durable Construction

Durability is essential for long-term reliability. These chargers are constructed from high-grade polycarbonate (PC) and ABS (Acrylonitrile Butadiene Styrene) blends—materials known for their mechanical strength, flame resistance, and resistance to UV degradation. This ensures that the unit remains functional and safe even under prolonged exposure to sun, rain, and temperature extremes.

Installation and Usability

One of the greatest strengths of wall-mounted AC chargers is their ease of installation. These units can be installed in a variety of configurations:

Wall-mounted: Ideal for garages, building exteriors, or walls near parking spaces.

Pedestal-mounted: When wall space is unavailable, these chargers can be installed on steel pedestals anchored to the ground.

Installation flexibility makes them ideal for both new construction and retrofits.

Charging Options

Plug-and-charge: Automatically starts when the EV is connected.

RFID Card Swiping: For controlled access in public or shared environments.

Password-Protected Charging: Additional security for residential or commercial settings.

Whether you’re an individual homeowner or a business operator, this plug-and-play setup offers a hassle-free charging experience.

Essential Safety Guidelines for Installation

Although these chargers are designed to be user-friendly, proper installation is crucial to ensure safety and performance. Below are key safety tips to consider:

1. Evaluate Your Electrical Capacity

Before installing a wall-mounted AC charging pile, you must determine whether your existing electrical system can handle the added load. This includes:

Verifying breaker panel capacity

Ensuring correct voltage and current ratings

Evaluating circuit wiring and grounding

In most cases, a dedicated 32A or 50A circuit is required. Always consult with a licensed electrician before installing a charging pile to assess the home or facility’s electrical infrastructure.

2. Choose the Right Location

The location of your charger plays a big role in its longevity and safety:

The unit should be placed in a well-ventilated, dry, and accessible area.

If outdoors, make sure it's protected from direct rain, snow, or extreme heat.

Avoid installing the charger in high-traffic zones or where it might be damaged by vehicles.

Typical locations include:

Garages

Carports

Side walls of buildings

Commercial parking lots

3. Ensure Secure Mounting

Whether mounted to a wall or pedestal, the charger must be securely anchored using recommended brackets and bolts. Loose mounting may lead to:

Device damage

Accidental disconnection

Safety hazards

4. Proper Electrical Insulation

Incorrect wiring and poor insulation are leading causes of electrical hazards. Insist on:

Proper grounding

High-quality, insulated wiring

Weatherproof enclosures for outdoor use

If you're uncertain at any stage, seek assistance from a qualified professional to avoid costly mistakes or unsafe conditions.

Why Choose a Wall-Mounted AC Charging Pile?

Here are a few reasons why wall-mounted AC chargers have become the go-to option for EV owners:

Application Scenarios

Residential EV Charging: Homeowners benefit from a convenient and secure solution that charges vehicles overnight.

Apartments & Condos: Shared charging stations with RFID or app-based access control systems.

Workplace Charging: Allows employees to top up their vehicles while parked for extended hours.

Commercial Fleet Operations: Businesses can track, monitor, and manage the charging of multiple vehicles in real-time.

Public Charging Infrastructure: With OCPP support, these chargers can integrate into broader smart city grids and payment systems.

Conclusion

As electric vehicles become a central part of sustainable transportation, wall-mounted AC charging piles offer a future-ready charging solution. They combine the best of power efficiency, smart technology, safety, and durability—making them ideal for homes, businesses, and public spaces.

Whether you are looking to install a private charger at home or set up an entire fleet management system, wall-mounted AC chargers provide the flexibility, reliability, and performance needed to support the growing shift toward electrified mobility.

Investing in this solution not only ensures your vehicle stays charged but also supports a cleaner, smarter energy future.
