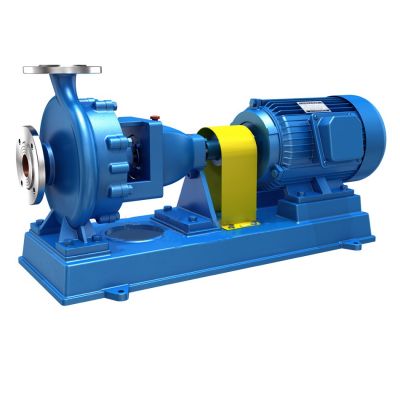

IH Chemical Stainless Steel Centrifugal Pump, Anti-corrosion

Introduction:
IH stainless steel chemical centrifugal pump is a single-stage single-suction (axial suction) corrosion-resistant centrifugal pump for the delivery of no solid particles, corrosive, viscosity similar to water liquid. The temperature of the medium is -20°C ~ 150°C, and the temperature can be higher if cooling measures are used when necessary.

 It is mainly composed of pump body, pump cover, impeller, shaft, seal ring, shaft sleeve and suspension bearing parts. IH stainless steel chemical centrifugal pump body and pump cover part, is divided from the back of the impeller, which is usually referred to as the rear door structure. Its advantage is convenient maintenance, maintenance does not move the pump body, suction line, discharge line and motor, just remove the lengthening coupling in the middle of the coupling, you can exit the rotor parts for maintenance.

Performance Range:
Type:  Horizontal, Single-stage single suction
Flow: 3.2 - 400 m3/h
Delivery Head: 5-132 m
Size.: DN50-DN200 mm
Working Pressure (Max): 1.6 Mpa
Liquid Temperature: 20 -150 C

Application:
Widely used in petroleum, chemical industry, metallurgy, synthetic fibre, pharmacy, food, synthetic fiber and other departments for alkaline corrosion medium, acid and alkali corrosive medium  pipeline also can be used in the industrial, urban water supply, water drainage can also be used in farmland, orchard irrigation and drainage, for conveying water or physical and chemical properties similar to water other liquid.



Model	Speed	Flow Capacity		Head	Eff	Shaft Power	Motor Power			NPSH	Weight
							Medium density
		(m3/h)	(L/S)	(m)	(%)	(Kw)	1	1.35	1.85	(m)	(kg)
IH50-32-125	2900	12.5	3.47	20	51	1.33	2.2	3	4	2	45
	1450	6.3	1.74	5	45	0.19	0.55	0.55	0.55	2	45
IH50-32-160	2900	12.5	3.47	32	46	2.37	3	4	5.5	2	49
	1450	6.3	1.74	8	40	0.34	0.55	0.75	1.1	2	49
IH50-32-200	2900	12.5	3.47	50	39	4.36	5.5	7.5	11	2	59
	1450	6.3	1.74	12.5	33	0.65	1.1	1.1	1.5	2	59
IH50-32-250	2900	12.5	3.47	80	33	8.25	11	15	18.5	2	93
	1450	6.3	1.74	20	27	1.27	2.2	2.2	3	2	93
IH65-50-125	2900	25	1.53	2	62	2.2	3	4	5.5	2	47
	1450	12.5	6.94	5	55	0.31	0.55	0.55	0.75	2	47
IH65-50-160	2900	25	2.78	32	57	3.82	5.5	7.5	11	2	53
	1450	12.5	6.94	8	51	0.53	0.75	1.1	1.5	2	53
IH65-40-200	2900	25	2.92	50	52	6.55	11	11	15	2	63
	1450	12.5	6.94	12.5	46	0.93	1.5	2.2	2.2	2	63
IH65-40-250	2900	25	2.92	80	46	46	15	3	30	2	99
	1450	12.5	6.94	20	39	39	2.2	37	4	2	99
IH65-40-315	2900	25	3.06	125	39	39	30	5.5	55	2	116
	1450	12.5	6.94	32	33	33	5.5	5.5	7.5	2	116
IH80-65-125	2900	50	13.9	20	69	3.95	5.5	7.5	11	3	52
	1450	25	6.94	5	64	0.53	0.75	1.1	1.5	2.5	52
IH80-65-160	2900	50	13.9	32	67	6.5	11	11	15	2.3	57
	1450	25	6.94	8	62	0.88	1.5	1.5	2.2	2.3	57
IH80-50-200	2900	50	13.9	50	63	10.8	15	18.5	30	2.5	65
	1450	25	6.94	12.5	54	0.83	1.1	1.5	2.2	2	65
IH80-50-250	2900	50	13.9	80	58	18.8	30	37	45	2.5	103
	1450	25	6.94	20	52	2.62	4	5.5	7.5	2	103
IH80-50-315	2900	50	13.9	125	52	32.73	45	55	75	2	121
	1450	25	6.94	32	48	4.54	7.5	7.5	11	2	121
IH100-80-125	2900	100	27.8	20	73	7.47	11	15	18.5	4.5	57
	1450	50	13.9	5	68	1	1.5	2.2	3	3.5	57
IH100-80-160	2900	100	27.8	32	73	11.9	15	22	30	4.3	87
	1450	50	13.9	8	69	1.58	2.2	3	4	3.4	87
IH100-65-200	2900	100	27.8	50	72	18.9	30	37	45	3.9	96
	1450	50	13.9	12.5	68	2.5	3	4	5.5	2.5	96
IH100-65-250	2900	100	27.8	80	68	32	45	55	75	3.6	115
	1450	50	13.9	20	63	4.3	5.5	7.5	11	2.5	115
IH100-65-315	2900	100	55.6	125	62	54.9	75	90	132	3.2	166
	1450	50	27.8	32	58	7.5	11	15	18.5	2	166
IH125-100-200	2900	200	55.6	50	77	35.4	45	55	90	5	99
	1450	100	27.8	12.5	73	4.66	7.5	11	15	2.9	99
IH125-100-250	2900	200	55.6	80	75	58.1	11	110	132	4.5	151
	1450	100	27.8	20	72	7.56	132	15	18.5	2.3	151
IH125-100-315	2900	200	55.6	125	72	94.56	18.5	160	220	4.5	166
	1450	100	27.8	32	65	13.41	18.5	22	30	2.8	166
IH125-100-400	1450	100	27.8	50	55	14.74	18.5	30	37	2.5	211
IH150-125-250	1450	200	55.6	20	77	14.1	30	30	37	2.5	165
IH150-125-315	1450	200	55.6	32	75	23.2	30	37	55	2.8	196
IH150-125-400	1450	200	55.6	50	70	38.9	55	75	90	2.8	238
IH200-150-250	1450	400	111.1	20	77	28.3	37	55	75	2.5	195
IH200-150-315	1450	400	111	32	79	44.1	55	75	110	4	269
IH200-150-400	1450	400	111	50	78	39.8	90	132	160	3.5	290
