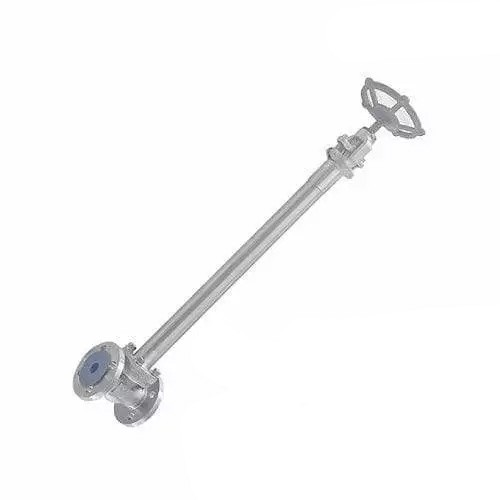

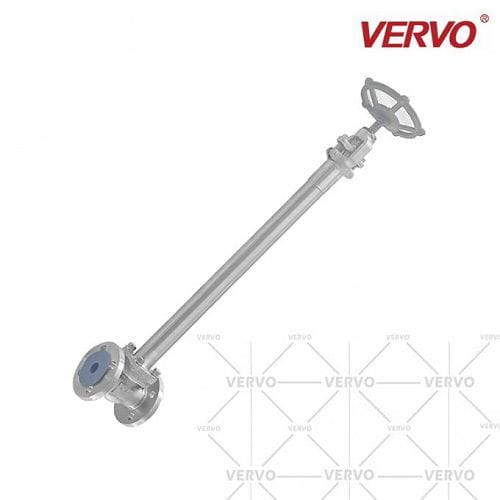

Cryogenic Globe Valve, API 602, ASTM A182 F304, 2 IN, CL300

This Cryogenic Globe Valve, supplied by a leading China manufacturer, is designed to meet API 602 standards. Constructed from stainless steel ASTM A182 F304, it features a 2-inch (DN50) size and supports Class 300 LB and PN50 pressure ratings. With RF flanged ends for secure installation and handwheel operation for precise manual control, this valve is ideal for cryogenic applications, ensuring reliable flow regulation even in extreme temperature conditions.

Product Name: Cryogenic Globe Valve
Design Standard: API 602
Body Material: ASTM A182 F304
Size: 2 Inch, DN50
Pressure: Class 300 LB, PN50
End Connection: RF Flanged
Operation: Handwheel

Forged Steel Globe Valves are meticulously designed and manufactured to meet international standards such as API 602, ASME B16.34, DIN 3202, or their equivalents. These valves feature a compact yet extremely robust design, making them ideal for high-pressure and high-temperature applications.
The optional solid CoCr alloy wedge ensures low friction and extended service life. The packing rings are precompressed to 4000 psi, providing a highly reliable seal. For welded bonnet valves, the bonnet is threaded in and torqued to an engineered torque value, and the body-bonnet joint is strength-welded, offering double protection against leakage (body, bonnet threads, and strength-weld).
The fully guided wedge reduces wear on seating surfaces, enhancing durability. Optional designs are available with double packing, leak-off connections, live-loading, and a packing blowout feature, making it easy to remove old packing.

Technical Specifications

» Size Range: NPS 1/2-2 Inch (DN15-DN50)
» Design Pressure: Class 150-2500 LB (PN10-PN420)
» Materials: Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel, and others such as ASTM A105N, A350 LF2, A182 F11, F22, F304, F304L, F316, F316L
» Trim Materials: 13% Cr, ASTM A182 F11, F22, SS 304, SS 304L, SS 316, SS 316L, etc.
» End Connections: SW, FNPT, BW, RF, RTJ, Grooved
» Design and Manufacture: ASME B16.34, API 602
» Face-to-Face (End-to-End): ANSI B16.10
» Flanged Connection: ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt-Welded End: ANSI B16.5
» Threaded Ends: ASME B1.20.1
» Socket-Weld Ends: ASME B16.11
» Temperature Range: -29°C to 595°C
» Medium: Water, gas, oil, etc.

Product Features

» Corrosion Resistance: The forged steel materials used in our valves undergo fine processing, resulting in excellent corrosion resistance. This makes them suitable for a wide range of corrosive media, significantly extending the service life of the valves.
» Compact Design: Forged steel globe valves are designed to be compact, with a smaller footprint and minimal space requirements. This makes them easy to install and use, particularly in applications where space is limited.
