Soft Seal vs. Hard Seal Ball Valves: Key Differences Explained

Introduction

Ball valves are essential components in modern fluid control systems, widely used in pipelines across oil and gas, chemical processing, power generation, water treatment, and other critical industries. One of the most important considerations when selecting a ball valve is the type of sealing mechanism it employs. In general, ball valve sealing mechanisms fall into two main categories: soft seal and hard seal.

While both serve the purpose of controlling fluid flow and ensuring tight shut-off, their differences in design, sealing materials, applications, manufacturing requirements, and performance characteristics make them suitable for very different operating conditions. Understanding these differences is crucial for engineers, operators, and maintenance teams when selecting the right valve for specific service conditions.

1. Structural and Mechanical Differences

The primary structural difference between soft seal and hard seal ball valves lies in the contact surfaces between the valve seat and the ball.

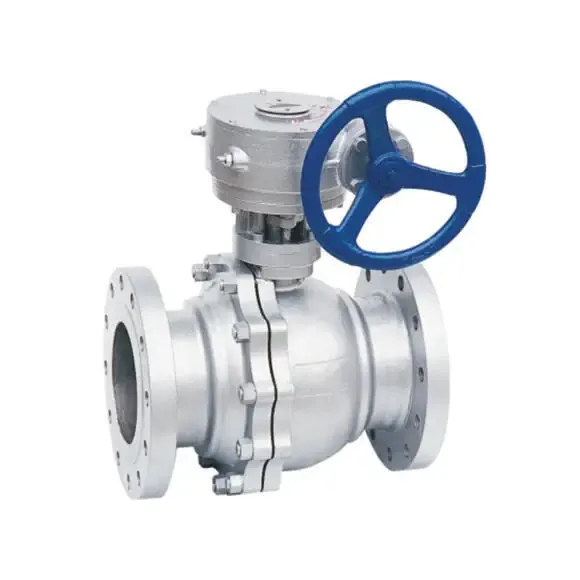

Hard Seal Ball Valve

A hard seal ball valve utilizes a metal-to-metal sealing mechanism, where both the valve seat and the ball are made of metallic materials such as stainless steel, Stellite alloy, or other hardened metals. This type of construction is ideal for harsh environments involving:

High pressure (typically above 35 MPa)

High temperatures

Abrasive or corrosive fluids

The sealing is achieved through precision machining and grinding, ensuring tight metal contact and minimal leakage. Because metal components lack elasticity, perfect alignment and surface finishes are critical for effective sealing.

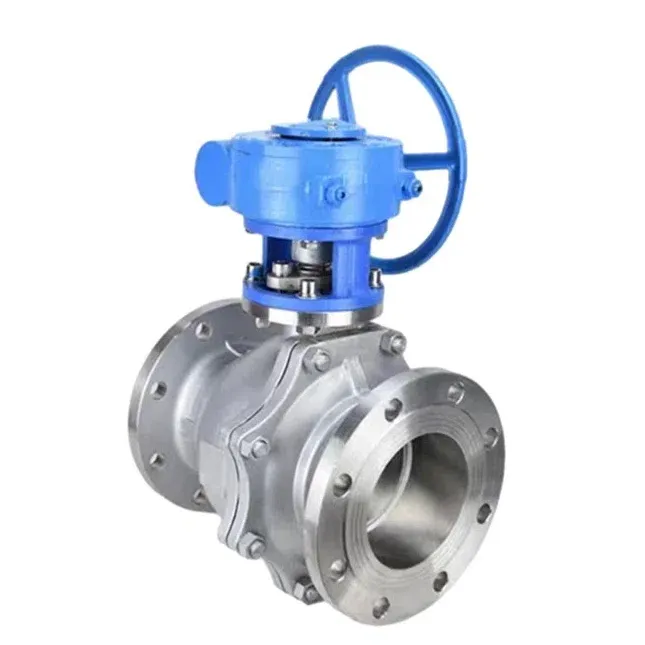

Soft Seal Ball Valve

In contrast, a soft seal ball valve has one non-metallic sealing surface—typically the seat is made from materials like PTFE (Polytetrafluoroethylene), nylon, PEEK, or other elastomers—while the ball remains metallic. These materials are chosen for their chemical resistance, flexibility, and ability to conform to the ball’s surface under pressure, forming a tight seal with less stringent machining tolerances.

Soft seals are particularly advantageous in lower-pressure and non-extreme temperature conditions, where a bubble-tight shut-off is needed with minimal wear on the valve components.

2. Differences in Sealing Materials

The performance of a ball valve greatly depends on the materials used for its sealing surfaces. These materials directly influence the valve’s pressure and temperature tolerance, chemical compatibility, wear resistance, and service life.

Materials Used in Hard Seal Ball Valves

Stainless Steel (304, 316, etc.): Offers corrosion resistance and strength.

Hard Alloy (Stellite, Inconel, etc.): Provides excellent wear and erosion resistance.

Tungsten Carbide Coating: Enhances durability in high-pressure or abrasive environments.

Hard seals must undergo heat treatment, surface hardening, and precision lapping to achieve the required level of sealing performance. Manufacturing a reliable hard seal requires tight control over tolerances and surface finishes.

Materials Used in Soft Seal Ball Valves

PTFE (Teflon): Chemically resistant and suitable for temperatures up to 200°C.

RTFE (Reinforced PTFE): Improved wear resistance with added fillers.

Nylon, UHMWPE, PEEK: Suitable for different chemical and temperature profiles.

Soft materials offer elastic deformation, allowing the seat to conform to the ball’s surface. This makes sealing more forgiving and reduces the manufacturing complexity. However, soft seals degrade under high heat, mechanical load, or chemical attack beyond their design limits.

3. Differences in Operating Conditions and Applications

The suitability of soft or hard seal ball valves is dictated by the operating conditions of the system they are used in.

Soft Seal Ball Valves – Ideal For

Low to medium pressure systems

Non-abrasive and clean fluid media

Ambient to moderate temperatures

HVAC, water distribution, food-grade fluids, general-purpose chemicals

Soft seals offer excellent sealing performance at low torque and are perfect for applications that prioritize bubble-tight shut-off. However, they are not suitable for high-temperature services due to potential softening or decomposition of the non-metallic seat material.

Hard Seal Ball Valves – Ideal For

High-pressure applications (>35 MPa)

High-temperature services (up to 500°C and beyond)

Abrasive, viscous, or corrosive fluids

Steam, oil, gas, slurry, and power plant applications

These valves are built to withstand extreme service conditions but typically require higher torque for actuation and are more expensive due to the complex manufacturing and material selection.

Fire Safety Consideration

Soft seal valves are vulnerable in fire-prone environments, as non-metallic materials may burn or melt, causing leakage. Fire-safe designs usually incorporate a secondary metal-to-metal backup seal. Hard seal ball valves, being metal throughout, inherently provide better fire safety and are often chosen for critical isolation duties.

4. Cost, Manufacturing, and Maintenance Considerations

The construction differences between soft and hard seal ball valves also influence their costs, complexity, and maintenance requirements.

Soft Seal Ball Valves

Easier to manufacture, thanks to lower tolerance demands

Lower initial cost due to less expensive materials and processing

Easier to repair or replace seat inserts

Shorter lifespan in challenging environments

Not suitable for abrasive or high-pressure service without additional design modifications

Hard Seal Ball Valves

Higher manufacturing complexity involving lapping, grinding, and hardening

Higher cost, both in terms of raw materials and labor

Longer lead time due to machining requirements

Extended service life in high-demand applications

More challenging maintenance due to the need for precise component matching

Despite higher upfront costs, hard seal ball valves provide excellent long-term value in tough conditions where frequent maintenance or leakage would be unacceptable.

5. Differences in Manufacturing Standards and Design Challenges

Though both soft and hard seal ball valves generally follow the same manufacturing standards (such as API 6D, ASME B16.34, or ISO 17292), the technical challenges differ significantly.

Soft Seal Ball Valve Production

Seat rings are machined and often pressed into the valve body

No metal-to-metal finishing required

Simplified testing for seat leakage

Standard CNC processes are sufficient

Hard Seal Ball Valve Production

Requires multi-step precision machining

Ball and seat must be lapped to achieve tightness

Often involves hard-facing alloys applied via welding or thermal spray

Sealing effectiveness depends on surface hardness, roundness, and lapping finish

Subjected to rigorous testing to meet leakage and pressure class certifications

Because hard sealing surfaces lack elasticity, the alignment, surface roughness, and angle of contact must be manufactured to high tolerances to ensure tight shut-off. This makes hard seal valves not only more costly but also more skill-intensive to produce.

6. Summary Table: Key Differences

Conclusion

Selecting the right type of ball valve—soft seal or hard seal—is crucial to the reliability, safety, and efficiency of any industrial system. While soft seal ball valves are excellent for applications requiring tight shut-off, lower pressure, and moderate temperatures, they are not suitable for high-temperature or abrasive environments.

Hard seal ball valves, although more expensive and complex to manufacture, excel in demanding service conditions where durability, fire safety, and long-term performance are critical. They are the preferred choice in power plants, petrochemical facilities, refineries, and high-pressure steam systems.

Ultimately, the choice between a soft seal and hard seal ball valve should be based on a thorough analysis of operating temperature, pressure, fluid properties, required durability, and fire safety standards.
