How Does a Wafer Butterfly Valve Work?

Introduction

In today’s world of industrial fluid control, the wafer butterfly valve stands out as one of the most practical and widely used flow control devices. Its compact profile, straightforward design, and cost-effectiveness make it indispensable in pipelines where tight shut-off, quick operation, and space-saving installation are required. From water treatment plants and chemical processing lines to HVAC systems and building services, the wafer butterfly valve delivers reliable performance in diverse applications.

This comprehensive overview explores what a wafer butterfly valve is, how it works, its design principles, key operational mechanisms, advantages, limitations, and common use cases across industries. If you’ve ever wondered why this valve is so prevalent in flow control systems, you’re about to find out.

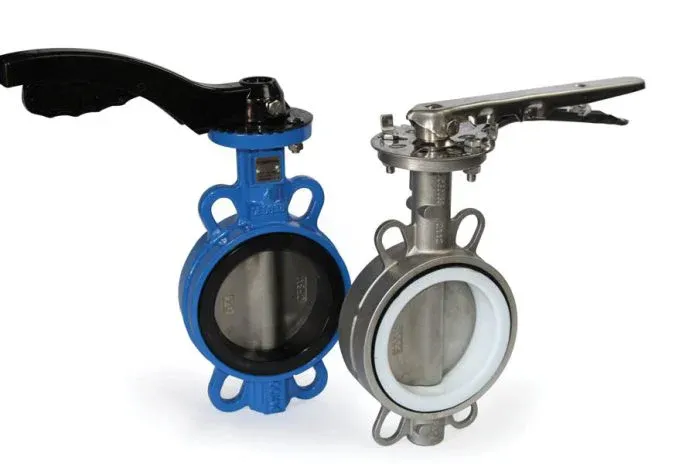

What Is a Wafer Butterfly Valve?

A wafer butterfly valve is a quarter-turn valve used to regulate or isolate fluid flow. It gets its name from the wafer-style body that fits between two flanges on a pipeline, held in place by bolts that run through the flanges and around the valve body itself. Unlike a lug-style butterfly valve, which has threaded inserts for bolting directly to flanges at each end, the wafer design relies on the surrounding pipe flanges and bolts to stay secure in the line.

The defining feature of any butterfly valve is the disc — a flat, circular plate mounted on a rotating shaft. When the disc turns parallel to the flow, the valve is fully open, and when the disc is rotated perpendicular, it seals against the valve seat to shut off flow completely.

What makes the wafer butterfly valve unique is its ability to maintain a bi-directional seal. It prevents backflow in either direction, which is crucial for systems designed for uni-directional flow but occasionally exposed to pressure fluctuations or flow reversals.

Basic Components and Design

A typical wafer butterfly valve includes several main parts:

Valve Body: The wafer body is thin and designed to fit snugly between two pipe flanges, secured by bolts.

Disc: The disc acts as the closure element. Its streamlined shape allows fluid to pass with minimal pressure drop when fully open.

Stem/Shaft: The disc is mounted on a central shaft or stem, which passes through the body and connects to an actuator or handle.

Seat: The internal seat forms a tight seal with the disc edge to stop flow when closed. Common seat materials include elastomers like EPDM, nitrile, or PTFE for chemical resistance.

Actuator/Operator: This can be a manual lever, gear operator, or an automated actuator (electric, pneumatic, or hydraulic) that controls the disc’s rotation.

How Does a Wafer Butterfly Valve Work?

At its core, the wafer butterfly valve’s operation is simple yet highly effective. Its working mechanism can be broken down into three main modes: open, throttling, and closed.

1. Open Position

When fully open, the disc rotates so it aligns parallel to the direction of the fluid flow. This streamlined position presents minimal resistance, allowing fluid to pass through almost unobstructed. Compared to other valve types, such as gate or globe valves, butterfly valves create less head loss due to their short face-to-face dimension and efficient disc design.

2. Closed Position

To shut off flow, the actuator or handle turns the stem, rotating the disc 90 degrees until it sits perpendicular to the pipeline. The disc edge compresses tightly against the resilient seat, forming a reliable seal that stops fluid passage. This quick quarter-turn action enables fast isolation, making the wafer butterfly valve ideal for applications that demand frequent shut-off and opening cycles.

3. Throttling Position

While wafer butterfly valves are primarily designed for on/off service, they can also be used for throttling — controlling the flow rate by partially opening or closing the disc. By adjusting the disc to various angles between fully open and closed, operators can fine-tune flow. However, it’s worth noting that compared to specialized throttling valves like globe valves, butterfly valves offer less precise flow control. Excessive throttling can also increase wear on the disc and seat, shortening valve life.

Actuation and Control of Wafer Butterfly Valve

The stem or shaft of a wafer butterfly valve can be operated manually or automated for remote control and integration into larger process systems.

Manual Operation

Small-diameter butterfly valves often use a simple lever handle for quick manual actuation. For larger sizes, a gearbox operator is typically employed to provide mechanical advantage, reducing the effort needed to turn the disc.

Automated Operation

When remote or precise control is required, wafer butterfly valves can be fitted with electric, pneumatic, or hydraulic actuators. These actuators receive signals from a control system, allowing automated open/close or throttling functions, which is essential in process industries and building automation systems.

Sealing and Bi-Directional Flow Control

A major advantage of the wafer butterfly valve is its ability to maintain a tight seal, even under bi-directional pressure differentials. This is achieved through carefully engineered sealing mechanisms, including:

Precision-Machined Valve Seats: Ensure uniform contact with the disc edge for effective shut-off.

O-Rings and Gaskets: Enhance sealing at the stem and body interfaces.

Elastomeric Liners: Many wafer butterfly valves have a full-body liner that provides additional sealing and corrosion protection, especially in aggressive media.

This design helps prevent backflow, a critical feature in applications where reverse flow could damage equipment or compromise product quality.

Common Applications of Wafer Butterfly Valve

Wafer butterfly valves are found in a wide range of industries and systems, including:

Water Treatment and Distribution: For isolating or regulating water flow in pipelines and treatment plants.

HVAC Systems: To manage chilled or hot water flow in heating and cooling networks.

Chemical Processing: Handling various process fluids with appropriate seat and disc materials for chemical compatibility.

Food and Beverage: Sanitary designs with stainless steel bodies and PTFE seats ensure hygienic flow control.

Power Generation: For cooling water, condensate systems, and auxiliary services.

Their compact design is especially valued in confined spaces where larger gate or ball valves may be impractical.

Advantages of Wafer Butterfly Valves

The widespread adoption of wafer butterfly valves is no coincidence — their benefits are numerous:

Compact and Lightweight

Compared to other valve types, wafer butterfly valves are thinner and lighter, making them easier to handle, install, and support with smaller flanges and pipe hangers.

Cost-Effective

With a simple design and fewer components, these valves are generally more affordable, especially in larger sizes.

Quick Operation

The quarter-turn mechanism allows rapid opening and closing with minimal torque, ideal for applications requiring frequent operation.

Low Pressure Drop

When fully open, the streamlined disc design minimizes flow resistance, preserving system efficiency.

Bi-Directional Shut-Off

The resilient seat ensures a reliable seal against flow from either direction, providing protection against backflow.

Versatility

Suitable for a wide range of media, including water, air, chemicals, and slurries, provided materials are compatible.

Disadvantages of Wafer Butterfly Valves

Despite their many benefits, wafer butterfly valves do have limitations:

Limited Throttling Precision

While capable of flow control, they are less precise than globe valves for throttling applications. Excessive throttling can cause turbulence and accelerated wear.

Flow Obstruction

Even when fully open, the disc remains in the flow path, which can cause a small but unavoidable pressure drop.

Maintenance Considerations

In many cases, butterfly valves are replaced or overhauled off-site rather than repaired in-line, which can increase downtime.

Pigging Limitations

Pigs (pipeline cleaning tools) cannot pass through butterfly valves due to the disc in the flow path.

Tips for Selecting a Wafer Butterfly Valve

Choosing the right wafer butterfly valve involves considering several factors:

Operating Pressure and Temperature: Ensure the valve’s pressure and temperature ratings meet your system requirements.

Media Compatibility: Select seat, disc, and body materials that resist corrosion or chemical attack.

Flow Characteristics: Understand whether the valve will primarily be used for isolation or throttling to choose the appropriate disc design and actuation method.

Installation Environment: Consider available space, flange types, and whether maintenance access is practical.

Conclusion

The wafer butterfly valve represents a smart balance between performance, economy, and versatility. Its streamlined disc, reliable bi-directional sealing, and simple quarter-turn operation have made it a staple in industries ranging from water treatment to chemical processing.

Understanding how a wafer butterfly valve works — from its core design to its flow control capabilities — empowers operators, engineers, and maintenance teams to deploy these valves effectively and maintain them for long-term service. When selected and operated correctly, they can deliver decades of dependable flow control, protecting critical systems and optimizing process efficiency.

As industries continue to demand compact, reliable, and cost-effective solutions for fluid control, the wafer butterfly valve will no doubt remain a key player in the world of modern flow management.
