Forged Floating Ball Valve: A Reliable Choice for Industrial Flow Control

Introduction

In the complex world of industrial fluid control, forged floating ball valves play a vital role due to their robust design, dependable sealing capabilities, and versatile applications. These valves are part of the quarter-turn valve family and utilize a floating ball mechanism—a simple yet effective engineering solution that delivers reliable shutoff in a wide range of industries.

Forged floating ball valves are designed to manage fluid flow using a hollow, perforated ball that pivots within the valve body. Unlike fixed or trunnion-mounted balls, the floating ball is not anchored but instead suspended between two elastomeric or metallic seats. As pressure builds upstream, it pushes the ball into the downstream seat, thereby creating a tight, leak-proof seal. This design is particularly advantageous for low- to medium-pressure applications where tight shutoff and operational simplicity are required.

These valves operate by rotating the ball 90 degrees via a handle or actuator. When the hole in the ball aligns with the pipeline, the valve is open. A simple quarter-turn pivots the ball perpendicular to the flow path, effectively closing the valve and blocking the passage of fluid. This straightforward actuation mechanism, combined with the valve's internal simplicity and excellent sealing performance, makes it a trusted solution in various fluid handling systems, from chemical processing and water treatment to oil and gas distribution.

Structural Components of a Forged Floating Ball Valve

The reliability and performance of a forged floating ball valve are derived from its carefully engineered components. Let’s break down the key parts:

1. Forged Body

The valve body is forged rather than cast, which ensures a uniform grain structure, higher mechanical strength, and increased resistance to stress and pressure. Common materials include:

ASTM A105 (carbon steel),

ASTM A182 F304 and F316 (stainless steels),

Other specialty alloys depending on the media and application.

Forging eliminates many of the structural weaknesses often found in cast valves, such as porosity, slag inclusion, and sand holes. This results in a body that can endure high operating pressures and resist corrosion more effectively over time.

2. Floating Ball

The floating ball is the core sealing component. It is not rigidly fixed, allowing slight lateral movement under pressure. This mobility enables the ball to press firmly against the downstream seat, ensuring a tight seal even under fluctuating conditions. Full-port designs (where the ball bore matches the pipeline diameter) are common, minimizing pressure drop and allowing pigging in pipeline applications.

3. Valve Stem

The stem connects the actuator or handle to the ball, transmitting rotational motion. A blowout-proof design—where the stem is inserted from inside the valve body—ensures safety even under high internal pressure. The stem is typically made from the same material as the body or with superior alloys for added strength and durability.

4. Seats

Valve seats are the critical sealing surfaces where the floating ball makes contact during valve closure. Materials vary depending on the application:

PTFE (Teflon) for chemical resistance and low-friction sealing,

Metal seats for high-temperature or abrasive media.

High-quality seats contribute significantly to leak prevention and valve longevity.

5. End Connections

Forged floating ball valves can be fitted with various end connections based on installation needs:

Threaded (NPT/BSP) for smaller valve sizes or low-pressure systems,

Socket-welded for compact and secure installation,

Flanged for larger diameters and easy maintenance access.

Working Principle: How a Forged Floating Ball Valve Operates

The operational principle of a forged floating ball valve is elegant in its simplicity:

Open Position: When the valve handle is turned 90 degrees, the ball rotates so that its hollow core aligns with the pipeline, allowing unimpeded flow.

Closed Position: When rotated back, the ball turns perpendicular to the flow path. The upstream line pressure pushes the ball against the downstream seat, achieving a bubble-tight seal without requiring additional force from the actuator.

This self-sealing behavior means the valve performs exceptionally well in both unidirectional and bidirectional flow applications. The valve’s design also includes features for pressure relief within the body cavity, improving safety and operational stability under fluctuating pressures.

Advantages of Forged Floating Ball Valves

Forged floating ball valves are widely chosen due to a number of critical performance benefits:

Superior Sealing Integrity

The valve's design ensures tight shutoff due to the pressure-activated sealing between the ball and downstream seat. This makes them suitable for applications where leakage is unacceptable.

Robust Forged Construction

Forged valve bodies exhibit better mechanical properties than cast versions, including resistance to impact, fatigue, and corrosion. This makes them ideal for demanding environments.

Compact and Lightweight Design

Floating ball valves, especially in forged steel, offer a more compact footprint compared to gate or globe valves with similar pressure ratings. Their low weight simplifies installation, especially in overhead or confined spaces.

Cost-Effective and Easy Maintenance

With fewer components and a straightforward mechanism, these valves are easier and less expensive to maintain. Two-piece and three-piece designs allow for seat and ball replacement without removing the valve body from the pipeline.

Fire-Safe and Anti-Static Features

Many forged floating ball valves are built to API 607 fire-safe standards, ensuring operational safety during fire exposure. Anti-static devices also protect against static discharge caused by fluid friction or high-speed flow.

Low Operating Torque

The smooth surface of the ball and precision-machined seats contribute to low friction operation, minimizing torque requirements. This makes the valves suitable for manual and automated actuation.

Flexible Mounting and Actuation

Valves can be configured with ISO 5211 mounting pads for direct actuator installation. Locking devices and visual position indicators enhance safety and control in critical applications.

Design Options and Custom Features

Forged floating ball valves are available in a range of configurations to meet specific industrial requirements:

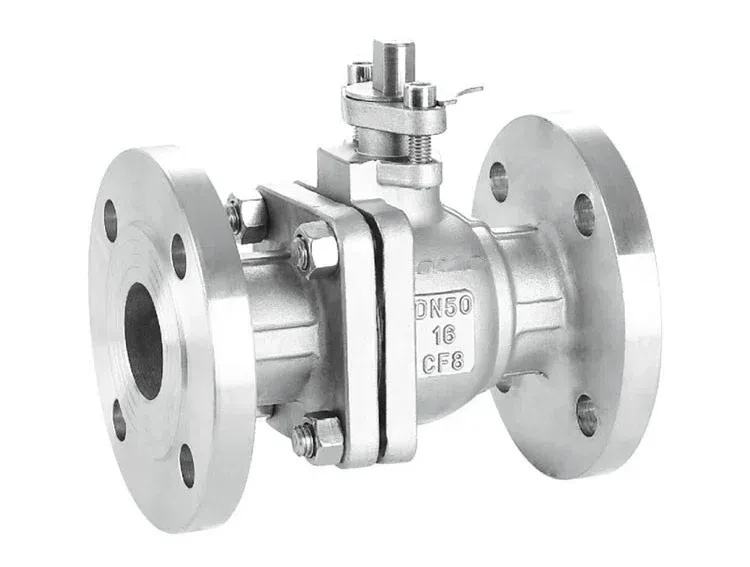

Two-Piece or Three-Piece Body Design

Two-piece designs are more compact and economical.

Three-piece valves allow easier maintenance without full removal from the pipeline.

Split Body or Bolted Body Construction

Offers ease of disassembly for repair and inspection.

Full Bore or Reduced Bore

Full bore designs are preferred when minimizing flow restriction is crucial. Reduced bore designs may be used for cost or weight savings where appropriate.

Soft-Seat or Metal-Seat Options

Based on temperature, pressure, and media compatibility.

Cryogenic and High-Temperature Variants

For specialty applications in energy and chemical sectors.

Limitations and Application Considerations

While forged floating ball valves provide many advantages, certain limitations must be considered:

Size Limitations

In larger diameters, the increased surface area means higher line pressure forces acting on the ball. Eventually, the seats can no longer support the ball effectively. For sizes typically above 4 inches or Class 600 and above, trunnion-mounted ball valves are a better alternative.

Not Ideal for Throttling

Floating ball valves are designed for on/off operation only. Using them for throttling can damage the seats and lead to premature failure.

Pressure-Relief Design Must Be Considered

In applications with trapped cavities, pressure relief mechanisms are needed to prevent dangerous buildup inside the body.

Typical Industrial Applications

Thanks to their simple design, cost-efficiency, and reliable performance, forged floating ball valves are widely applied across many industries:

Oil and Gas Pipelines

Petrochemical Refineries

Water and Wastewater Treatment

Power Generation

HVAC and Building Services

Marine and Shipbuilding

General Industrial Processing

They are particularly well-suited for applications requiring frequent operation, rapid shutoff, and consistent sealing performance.

Conclusion

Forged floating ball valves offer a practical and cost-effective solution for a wide range of fluid control applications. Their self-sealing capability, compact size, and forged body integrity make them a preferred choice for industries seeking durable and easy-to-operate shutoff valves.

However, as with any valve type, it’s essential to match the valve specifications with application requirements—especially in terms of pressure, temperature, media compatibility, and valve size. Where properly selected, these valves will provide long-term, leak-free service with minimal maintenance.

In a world that demands efficiency, reliability, and safety in fluid management systems, the forged floating ball valve remains a critical component, ensuring that operations flow smoothly and securely.
