Understanding the Working Principle of a Pneumatic Control Valve Positioner

Introduction

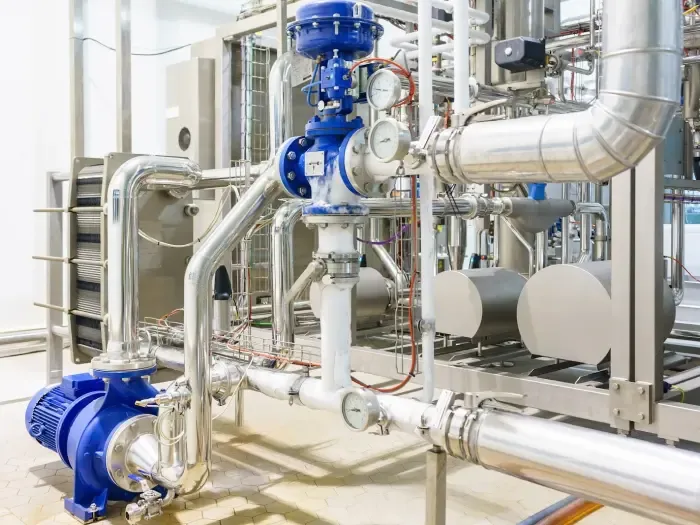

Pneumatic control valves are vital components in numerous industrial applications, where they play a key role in regulating the flow of gases, vapors, and fluids. Operating with compressed air, these valves are integrated into automated control systems across sectors such as oil and gas, chemical processing, water treatment, and power generation.

The accuracy and responsiveness of a control valve are crucial to ensuring process stability and safety. One of the most important accessories that enhance the performance of these valves is the pneumatic valve positioner. This device ensures that the valve responds precisely to the control signals it receives, minimizing errors caused by system friction, actuator lag, or varying process conditions.

In this article, we’ll take a detailed look at the working principle of a pneumatic control valve positioner, understand how it operates, and explore how it contributes to improved valve performance and process control efficiency.

What is a Pneumatic Control Control Valve Positioner?

A pneumatic control valve positioner is a device mounted on a control valve actuator that ensures the valve reaches the correct position as dictated by a control signal. The primary function of the positioner is to improve the accuracy, speed, and repeatability of the valve’s movement.

When a control system sends a pneumatic signal to the valve, the positioner interprets this signal and compares it to the actual position of the valve stem. If there’s a deviation between the two, the positioner adjusts the actuator’s air supply to align the valve position precisely with the control signal. This closed-loop feedback mechanism is essential for reliable and accurate process control.

Working Principle of Pneumatic Control Valve Positioners

Pneumatic valve positioners operate on the force balance principle. This means they use opposing forces — typically from a control signal and a mechanical feedback system — to achieve and maintain a desired valve position.

1. Force Balance Concept

The control valve positioner receives a pneumatic signal from a controller, typically ranging from 3 to 15 psi (0.2 to 1.0 bar). This signal is applied to a diaphragm within the positioner. The pressure exerted on this diaphragm produces a force that moves a beam or flapper assembly. Meanwhile, a mechanical feedback system (often a cam or lever connected to the valve stem) provides a counteracting force.

The positioner continuously balances these forces: the input signal trying to move the control valve to a new position and the feedback trying to stabilize the position. When these forces are equal, the valve is in the correct position, and the system is at equilibrium.

2. How the Positioner Adjusts Air Supply

Here’s a step-by-step breakdown of the operation:

Signal Reception: The controller sends a pneumatic signal to the positioner. The signal diaphragm in the positioner responds by exerting a force on the flapper-nozzle assembly.

Flapper and Nozzle Mechanism: The movement of the flapper either restricts or opens the nozzle, affecting the backpressure in the relay system. This change in pressure either increases or decreases the actuator pressure.

Supply and Exhaust Valves: If the flapper opens the supply path, compressed air flows into the actuator, increasing pressure and moving the valve stem. If the flapper opens the exhaust path, air is vented, reducing actuator pressure and allowing the stem to move in the opposite direction.

Valve Movement and Feedback: As the actuator diaphragm expands or contracts, it moves the valve stem. This movement is mechanically fed back to the positioner via a cam or lever. Once the stem reaches the target position, the feedback force balances the input signal force, closing both the supply and exhaust paths and stabilizing the system.

Components of a Pneumatic Control Valve Positioner

Understanding the key components of a positioner helps in visualizing how the system works:

1. Diaphragm

Receives the pneumatic control signal and converts it into mechanical force.

2. Flapper-Nozzle Assembly

This is the heart of the force balance system. It controls air pressure based on the position of the flapper relative to the nozzle, regulating the output pressure to the actuator.

3. Relay System

Boosts and modulates the air pressure to ensure the actuator receives enough force to move the valve stem effectively.

4. Feedback Cam or Lever

Connected to the control valve stem or shaft, this mechanism provides real-time mechanical feedback to the positioner, ensuring closed-loop control.

5. Range Spring

This spring balances the feedback force against the input signal force to maintain valve stability.

How the Positioner Improves Valve Performance

Without a positioner, control valves may suffer from several limitations:

Lag in response due to actuator friction

Inaccuracy from varying supply pressures

Non-linear movement due to mechanical hysteresis

The positioner compensates for these issues by:

Accelerating valve response to control signals

Reducing deadband and hysteresis

Ensuring precise valve positioning despite external forces

Improving stability in modulating control applications

As a result, the use of a positioner significantly enhances overall control loop performance.

Pneumatic vs. Electro-Pneumatic Positioners

While this article focuses on pneumatic positioners, it's useful to understand how they compare with electro-pneumatic positioners, which convert an electrical signal (typically 4-20 mA) into a pneumatic output.

Electro-pneumatic positioners offer integration with digital control systems, including HART or FOUNDATION Fieldbus, allowing for advanced diagnostics and remote calibration.

Maintenance of Pneumatic Control Valve Positioners

To ensure long-term performance and reliability, regular maintenance of pneumatic positioners is essential. Key practices include:

1. Periodic Inspection

Check air lines for leaks or blockages

Inspect flapper-nozzle assemblies for dirt or clogging

Verify diaphragm integrity

2. Calibration

Over time, the positioner may drift due to wear or environmental changes. Calibrating the positioner ensures accurate valve positioning in response to the input signal.

3. Cleaning

Dust and debris can interfere with nozzle operation. Use dry compressed air to clean components periodically.

4. Lubrication

Some mechanical components like cams and levers may need periodic lubrication to prevent friction and wear.

Common Problems and Troubleshooting

Applications of Pneumatic Control Valve Positioners

Pneumatic control valve positioners are widely used in:

Oil and Gas Refineries: For controlling flow rates and pressure levels in pipelines and separators

Chemical Plants: Managing reactions, mixing, and flow balancing in reactors

Water Treatment Facilities: Controlling water flow and chemical dosing

Power Generation: Regulating steam and cooling water circuits

Pharmaceuticals: Ensuring precise fluid flow in production lines

Anywhere precision and reliability are critical, pneumatic valve positioners contribute to safe and efficient operations.

Conclusion

Pneumatic control valve positioners play an essential role in modern industrial automation, offering precise control over valve positioning through a robust, mechanical feedback system. By operating on the force balance principle, these devices correct deviations, overcome actuator friction, and ensure that valves respond quickly and accurately to control signals.

Whether you’re designing a new system, upgrading an existing one, or troubleshooting valve performance issues, a strong understanding of how pneumatic positioners work is critical. Regular maintenance, correct calibration, and proper installation will ensure that your control valves deliver long-lasting, high-performance operation.

By mastering the principles behind pneumatic control valve positioners, engineers and technicians can significantly enhance system reliability and process efficiency — making these unsung devices key to successful industrial control systems.
