What Is a Motorized Ball Valve Used For?

Introduction

In an age where automation and precision play pivotal roles across industries, the motorized ball valve stands out as a crucial innovation in fluid control technology. Whether you're managing a sophisticated industrial system or improving efficiency in a residential setup, this electrically actuated valve offers a reliable and efficient solution for regulating the flow of liquids and gases.

But what exactly is a motorized ball valve, and where is it used? In this article, we’ll explore its working principle, real-world applications, and maintenance best practices, providing you with a comprehensive understanding of this essential device.

What Is a Motorized Ball Valve?

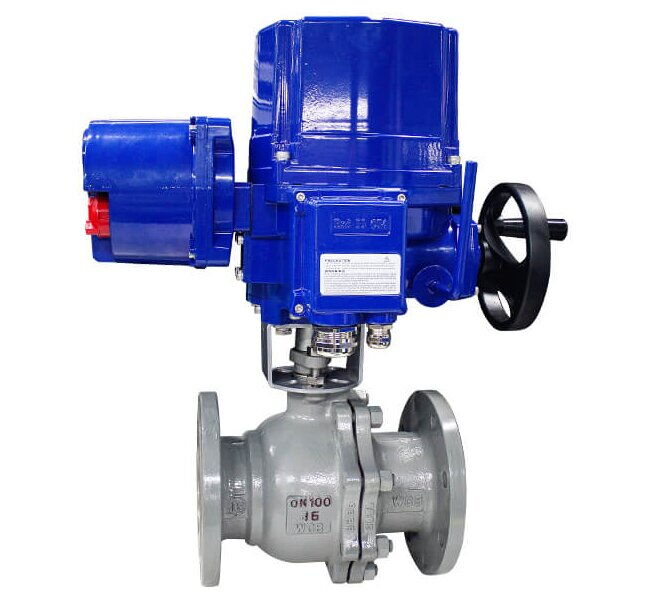

A motorized ball valve, also referred to as an electric ball valve, is a type of quarter-turn valve that utilizes an electric actuator to open or close the valve. At its core is a perforated, pivoting ball that rotates to allow or block the flow of a medium—such as water, gas, oil, or slurry—through the pipeline.

Unlike manual ball valves, which require human intervention for operation, motorized versions are automated and programmable. This allows for remote control, timed operation, and seamless integration with industrial control systems such as SCADA (Supervisory Control and Data Acquisition) or PLC (Programmable Logic Controller) networks.

These valves are available in various sizes, materials, and configurations to suit diverse environmental and operational needs—from small residential water systems to high-pressure industrial applications.

Key Features and Benefits of Motorized Ball Valve

Motorized ball valves are prized for several distinct features that make them ideal for automated flow control:

Fast and precise operation: The electric motor enables quick and accurate actuation.

Leak-proof design: The quarter-turn mechanism ensures a tight seal, minimizing leaks.

Remote and automated control: Easily integrated into building management or industrial automation systems.

Durability: Built to withstand harsh operating conditions, including corrosive media and high-pressure environments.

Low maintenance: Requires little upkeep compared to other valve types, particularly pneumatic or hydraulic options.

Common Applications of Motorized Ball Valves

Motorized ball valves are used across a wide spectrum of applications, from household appliances to complex industrial systems. Let’s take a closer look at how and where they are typically deployed:

1. Heating, Ventilation, and Air Conditioning (HVAC) Systems

In residential and commercial heating systems, motorized ball control valves regulate the flow of hot water or steam to radiators and underfloor heating circuits. By automating flow based on temperature sensors or time-of-day settings, these valves help maintain consistent indoor temperatures and improve energy efficiency.

In large HVAC systems, such as those used in office buildings or hospitals, motorized valves enable zoning—dividing a building into separate areas with individual temperature controls. This enhances both comfort and energy savings.

2. Agricultural Irrigation Systems

Efficient water usage is crucial in modern agriculture. Motorized ball valves are widely used in drip and sprinkler irrigation systems to control water flow across different fields and crops. Integrated with soil moisture sensors and irrigation controllers, these valves open or close automatically based on real-time data, reducing water wastage and optimizing crop yield.

Some advanced systems even use IoT-enabled valves that farmers can monitor and control from their smartphones, improving operational efficiency and sustainability.

3. Industrial Automation and Process Control

Industries such as chemical processing, pharmaceuticals, food and beverage, pulp and paper, and oil and gas rely heavily on precise flow control. In these settings, motorized ball valves are used to:

Handle hazardous or corrosive fluids without human intervention.

Operate in high-pressure, high-temperature environments.

Automate complex production sequences where timing and consistency are critical.

For instance, in a beverage manufacturing plant, a motorized valve might be used to regulate the flow of ingredients like water, syrup, or CO₂ during the bottling process. In chemical plants, these valves can control the mixing of reactive compounds with precision and safety.

4. Water and Wastewater Treatment Plants

Motorized ball valves are integral to the monitoring and treatment of municipal and industrial water supplies. They are used to control the flow of water and treatment chemicals during various stages such as filtration, chemical dosing, disinfection, and sludge handling.

These systems often operate around the clock, and motorized valves enable automated control, reducing the need for manual oversight and minimizing the risk of human error.

5. Residential and Commercial Plumbing Systems

In smart homes, motorized ball valves are used in automated plumbing systems for appliances such as washing machines, dishwashers, and water heaters. These valves can be programmed to shut off automatically during specific hours or in case of leakage detection, preventing water damage and enhancing safety.

Commercial properties may also use them in backflow prevention systems, water metering units, or emergency water shutoff systems.

6. Fire Protection and Emergency Systems

In fire suppression systems, such as sprinkler networks or foam-delivery setups, motorized ball valves are used to regulate and isolate water or foam flow. In emergency situations, these valves can be controlled remotely to activate or shut down specific areas of a system, contributing to both safety and compliance with fire regulations.

Control Options and Integration

Motorized ball valves can be configured with several control options, including:

On/Off Control: The most common type, ideal for simple open/close operations.

Modulating Control: Allows the valve to be partially open, controlling flow rate precisely based on a control signal (usually 0–10V or 4–20mA).

Fail-Safe Features: Some valves return to a default open or closed position upon power failure, enhancing system safety.

These valves can be integrated into building automation systems (BAS) or industrial control panels, often using communication protocols such as Modbus, BACnet, or Ethernet/IP.

Materials and Valve Configurations

Motorized ball valves are available in a variety of materials and configurations to suit different applications:

Valve Body Materials: Brass, stainless steel, PVC, bronze, and carbon steel.

Seal Materials: PTFE, EPDM, Viton, or NBR depending on chemical compatibility.

Connection Types: Threaded (NPT/BSP), flanged, socket weld, or tri-clamp for sanitary applications.

Enclosure Ratings: IP65, IP67, or IP68 for water resistance; explosion-proof models are also available for hazardous environments.

Maintenance Requirements: Are Motorized Ball Valves Low Maintenance?

Motorized ball valves are generally designed for low maintenance and long service life, especially when properly selected for the application and operating environment. However, routine inspection and preventive maintenance are still recommended to ensure optimal performance.

Here are some common maintenance practices:

1. Regular Visual Inspection

Check for any visible signs of corrosion, leakage, or unusual wear. Confirm that the actuator and valve body are securely mounted and free of obstructions.

2. Seal and Gasket Replacement

While most valves come with long-lasting PTFE seals, environments with abrasive media or high cycling may require occasional seal replacement to maintain leak-proof operation.

3. Electrical Connection Checks

Inspect wiring, terminal blocks, and control signal pathways for signs of damage, corrosion, or loosening. Secure all connections to prevent signal loss or electrical faults.

4. Lubrication (If Applicable)

Some motorized valves—especially larger, industrial-grade models—may require periodic lubrication of internal components. Use only manufacturer-approved lubricants to avoid damaging seals or electrical contacts.

5. Testing and Calibration

In modulating valve systems, recalibration may be required to maintain accuracy. Many actuators feature diagnostic LEDs or communication interfaces that can provide insight into operation history and fault conditions.

6. Environmental Protection

Ensure that the actuator housing remains sealed, especially in outdoor or corrosive environments. If the system is located in a hazardous zone, explosion-proof enclosures should be maintained according to safety codes.

7. Fail-Safe Verification

If your valve includes a fail-safe mechanism (such as spring return or battery backup), test it periodically to confirm proper operation in the event of a power loss.

Choosing the Right Motorized Ball Valve

When selecting a motorized ball valve, several factors should be considered:

Medium type: Water, air, gas, chemicals, or slurry.

Operating pressure and temperature: Must match or exceed system requirements.

Power supply: Common voltages include 12V DC, 24V AC/DC, 110V AC, and 220V AC.

Control signal: On/off or modulating.

Certifications and standards: NSF, UL, CE, ATEX for industry-specific compliance.

Environmental conditions: Corrosive environments, explosion zones, or underwater applications demand specialized valve configurations.

Investing in high-quality valves from a reputable manufacturer or supplier ensures reliability, compliance, and long-term cost savings.

Conclusion

Motorized ball valves have revolutionized the way we manage fluid flow across countless applications. From home automation and agriculture to high-stakes industrial processes, these valves offer a perfect blend of precision, reliability, and efficiency.

While they require minimal maintenance compared to other valve types, following best practices for inspection and care ensures longevity and optimal performance. Whether you're upgrading an existing system or designing a new one, integrating motorized ball valves is a smart move toward modern, automated flow control.

For best results, always consult with a trusted valve supplier who can guide you in selecting the right model based on your specific application needs.
