How to Correctly Select Electric Butterfly Valve Actuators: A Comprehensive Guide

Introduction

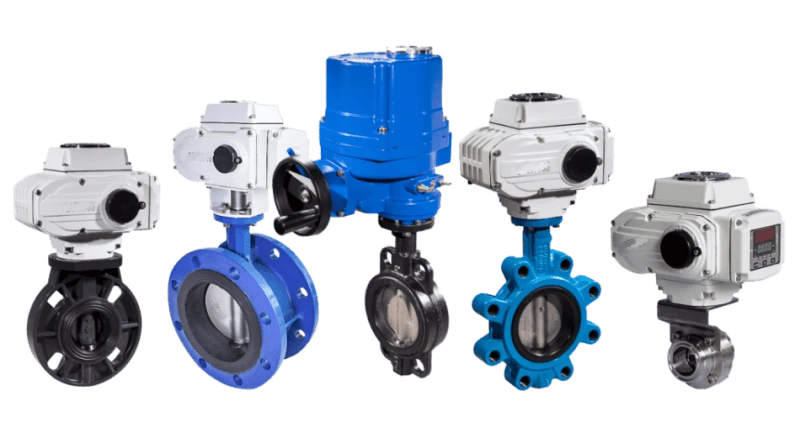

In modern industrial systems, electric butterfly valves have become indispensable components for regulating fluid flow in pipelines across diverse sectors, including water treatment, oil and gas, power generation, chemical processing, HVAC, and more. As automated process control demands grow, the performance of these valves hinges not just on the valve body itself but also on the electric actuator that drives it.

Choosing the correct electric actuator for a butterfly valve is more than just matching power ratings — it involves a deep understanding of torque requirements, valve design, medium characteristics, environmental conditions, and operational cycles. An improperly sized or unsuitable actuator can lead to incomplete valve closure, frequent breakdowns, excessive energy consumption, or even catastrophic system failures.

This detailed guide will help engineers, maintenance managers, and procurement specialists understand how to correctly select electric butterfly valve actuators, step by step. We’ll cover the fundamental principles, essential factors to consider, and practical recommendations to ensure smooth and efficient valve operation.

Why Proper Actuator Sizing Matters

The actuator is essentially the “muscle” behind the valve’s operation. It converts electrical energy into mechanical motion to open, close, or modulate the valve’s disc position. If the actuator is undersized, it may fail to generate enough torque to overcome system resistance, resulting in the valve sticking or leaking. Conversely, an actuator that’s excessively oversized may increase costs, energy usage, and wear on both the valve and actuator components.

Therefore, correctly sizing and specifying the actuator is critical for ensuring:

Reliable and safe valve operation

Prolonged service life of both valve and actuator

Reduced maintenance frequency and costs

Energy efficiency and lower operational expenses

Compliance with application-specific requirements such as explosion-proof or high-cycle conditions

Key Considerations for Selecting Electric Butterfly Valve Actuators

Let’s break down the major factors that influence the selection process.

1. Understanding Valve Operating Torque

Valve operating torque is the primary determinant when selecting an actuator. It represents the force needed to rotate the butterfly disc from fully closed to fully open, overcoming resistance from the valve seat, fluid pressure, friction, and any deposits that may accumulate.

How is valve torque determined?

It depends on the valve’s size (diameter), type, sealing design, and the working pressure of the pipeline.

Different manufacturers may have varying design tolerances, machining precision, and assembly quality, which means the torque for the same nominal valve size can differ significantly across brands.

Factors such as age, corrosion, and frequency of operation can also affect torque requirements over time.

Rule of thumb:

Always select an electric actuator with an output torque at least 1.2 to 1.5 times the valve’s maximum operating torque to ensure a safe margin. For example, if the calculated valve torque is 80 Nm, choose an actuator with a rated torque of at least 100 Nm to 120 Nm.

2. Valve Size and Type

Butterfly valves come in different sizes and configurations, which directly impact torque needs.

Valve diameter: Larger valves generally require exponentially higher torque. For instance, the torque needed for a DN300 butterfly valve could be more than ten times that of a DN50 valve.

Valve design:

Concentric (midline) butterfly valves usually have higher friction due to the disc constantly contacting the seat.

Double-eccentric and triple-eccentric butterfly valves reduce this friction by design, minimizing seat wear and lowering torque requirements by 30%–50% compared to midline types.

Sealing materials: Soft-seated valves may require less torque than metal-seated valves, especially in high-pressure or high-temperature applications.

Tip: Always consult the valve manufacturer’s torque curve data for precise figures.

3. Medium Characteristics and Process Conditions

The nature of the fluid or gas flowing through the valve significantly affects how much force is needed to operate the valve.

Viscosity:

Highly viscous media such as crude oil, slurries, or thick chemicals create greater resistance. It’s advisable to increase the torque margin by 15%–25% for such applications.

Temperature:

High temperatures (above 80°C) can weaken actuator components or degrade sealing materials. Choose actuators with heat-resistant motors and gaskets for high-temperature environments.

Corrosive media:

For aggressive chemicals, ensure that the actuator’s enclosure and internal components are properly protected, possibly with special coatings or materials.

Pressure fluctuations:

Systems with rapid or frequent pressure changes can increase the operational torque dynamically. Incorporating this into your calculations will help prevent unexpected overloads.

4. Environmental and Safety Requirements

Actuators often need to comply with specific working conditions:

Explosion-proof protection:

For applications in hazardous areas such as oil refineries, chemical plants, or mining, actuators must meet stringent safety standards. Look for certifications like Ex d IIC T6 to ensure the device won’t become an ignition source.

Ingress Protection (IP):

Outdoor or washdown environments may require actuators with high IP ratings (e.g., IP67 or IP68) for dust and water resistance.

Ambient conditions:

Extremely low or high ambient temperatures can impact motor performance. Some actuators come with integrated heaters for cold climates.

Four-Step Method for Actuator Selection

To simplify the process, industry experts recommend a systematic four-step approach.

Step 1: Obtain Accurate Valve Data

Before choosing an actuator, gather the following:

Valve type and model

Nominal diameter (DN)

Pressure rating (PN/Class)

Sealing material (rubber, PTFE, metal)

Type of medium (liquid/gas/corrosive)

Flow conditions and pipeline design

Having precise technical specifications will help ensure you calculate realistic torque figures.

Step 2: Calculate Operating Torque

Use manufacturer-supplied torque curves whenever available. These curves show how torque varies through the valve’s operating cycle, especially if the valve is used for throttling rather than just open/close.

What if data isn’t available?

In the absence of manufacturer data, measure the peak torque manually using a torque wrench during a full open–close cycle. Factor in any known conditions like scaling or high-viscosity media that may increase torque requirements over time.

Step 3: Match Actuator Specifications

Once you have the torque figure:

Multiply by a safety factor (typically ×1.2 to ×1.5) to select the actuator’s rated torque.

Confirm voltage compatibility. Common options include AC 220V/380V or DC 24V, depending on your plant’s electrical system.

Verify control signal requirements:

On/Off (switch type) for simple open-close operations.

Modulating (regulating type) for precise throttling, where the actuator adjusts the valve position proportionally based on an input control signal.

Step 4: Verify Special Working Conditions

Before finalizing your selection:

Check whether explosion-proof certification is required.

Evaluate the expected operational frequency. For high-cycle applications (e.g., valves operating more than 1,200 times per day), choose actuators designed for extended cycle life with additional heat dissipation features.

Confirm environmental protection levels, corrosion resistance, and the availability of manual override mechanisms for emergency operation.

Additional Tips for Optimal Performance

Work with trusted suppliers:

Reputable actuator manufacturers provide technical support, torque calculation assistance, and post-installation training.

Install proper safeguards:

Overload protection, torque limiters, and position feedback sensors help prevent accidental damage and make diagnostics easier.

Plan for maintenance:

Periodically inspect actuator connections, seals, and gear mechanisms. Lubricate moving parts as recommended by the manufacturer.

Consider smart actuators:

Modern intelligent actuators offer features like remote monitoring, data logging, and predictive maintenance, helping you minimize downtime.

Conclusion

Correctly selecting electric butterfly valve actuators is essential to ensure safe, efficient, and reliable flow control in any automated system. While it may seem complex, following a structured approach — understanding valve torque requirements, assessing operating conditions, applying appropriate safety margins, and verifying special working needs — makes the process much more manageable.

By investing the time to get actuator sizing right, you can safeguard your equipment, optimize performance, and reduce operational costs in the long term.
