ASTM A351 CF8 Wedge Gate Valve, API 600, 3 IN, 900 LB

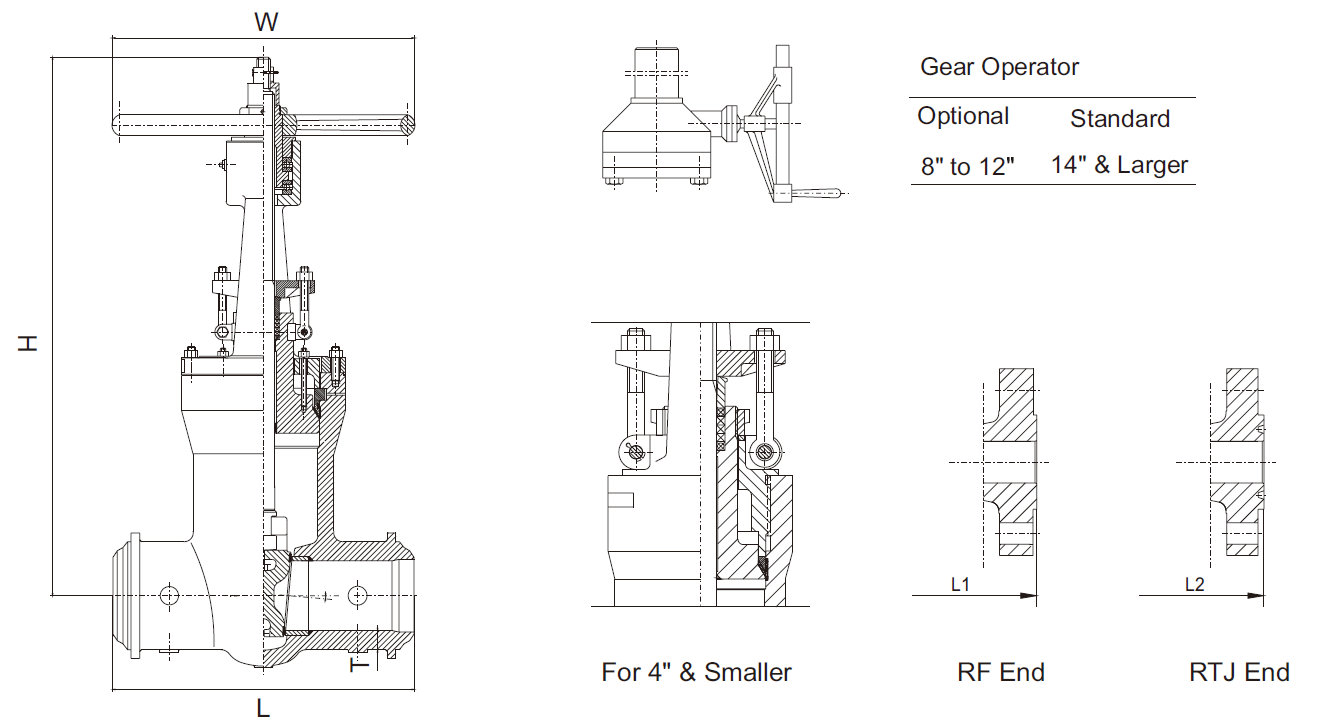

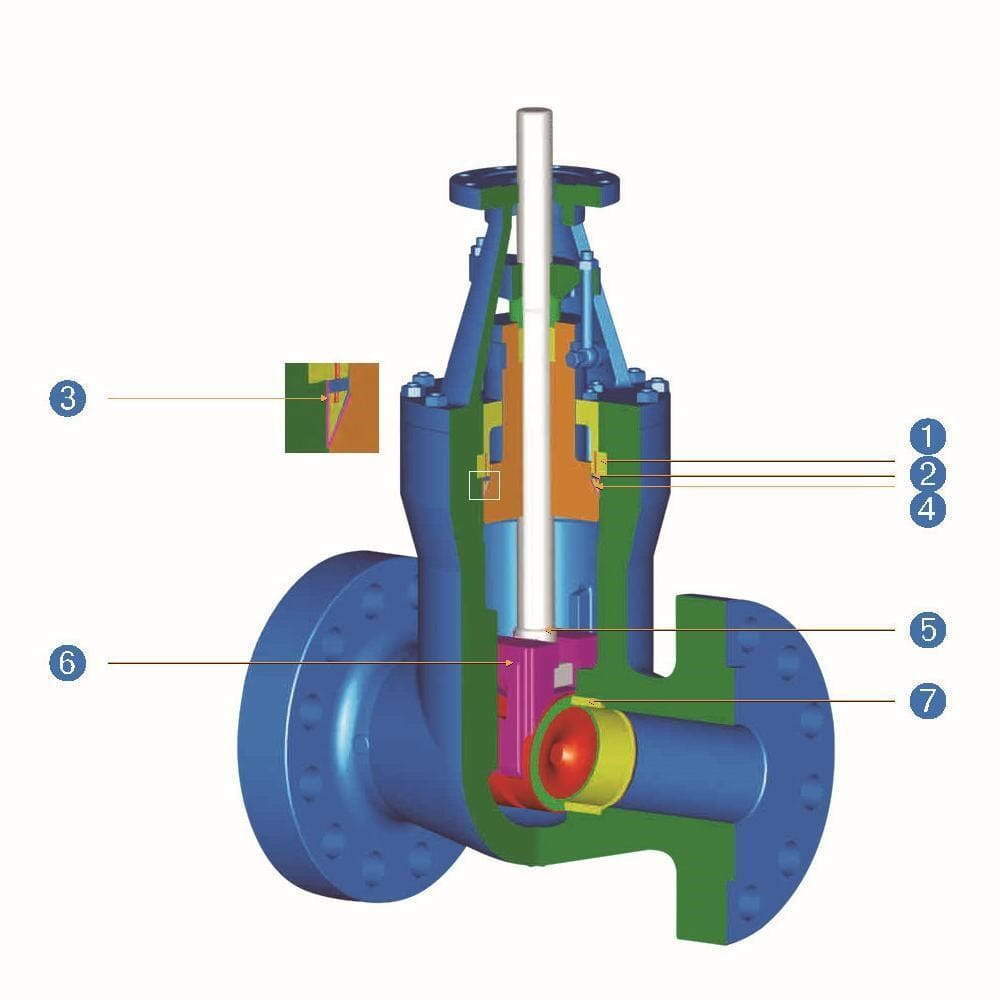

Pressure Seal Bonnet Gate Valve, API 600, ASTM A351 CF8 Body, 3 Inch/DN80, 900 LB, RTJ Flanged End.

Valve Description

1821108 Gate Valve
Design Standard: API 600
Body Material: ASTM A351 CF8, ASTM A890 4A, ASTM A216 WCB, ASTM A890 5A, ASTM A351 CF8M, ASTM A352 LCB, ASTM B148 C95800.
Nominal Size: 3 Inch, DN80
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Class: Class 900 LB, PN150
Bore Type: Standard Bore(API 600)
End Connection: RTJ Flanged
Operation: Handwheel/Gear
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55.
Face to Face: ASME B16.10
Test and Inspection: API 598
Key Features: OS&Y, Screwed-in Back Seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design.

Product Range

Body Material: Carbon Steel, Stainless Steel, Alloy Steel, Aluminum Bronze
Normal Diameter: 2 Inch - 64 Inch (DN50 - DN1600)
Pressure Range: Class 150 LB - 2500 LB
Operation: Handwheel/Gear/Motor
End Connections: RF (Raised Face), RTJ (Ring-Type Joint), BW (Butt Weld)
Working Temperature: -29°C - +400°C
Bonnet Types: Bolted Bonnet, Pressure Bonnet, Welded Bonnet, Bellow Seal.
