API 600 Gate Valve, 2 Inch, 150 LB, ASTM A216 WCB, RF Flanged

ASTM A216 WCB Gate Valve, API 600, 2 Inch/DN50, 150 LB, Handwheel/Gear Operation.

Valve Description

1821043 Gate Valve
Design Standard: API 600

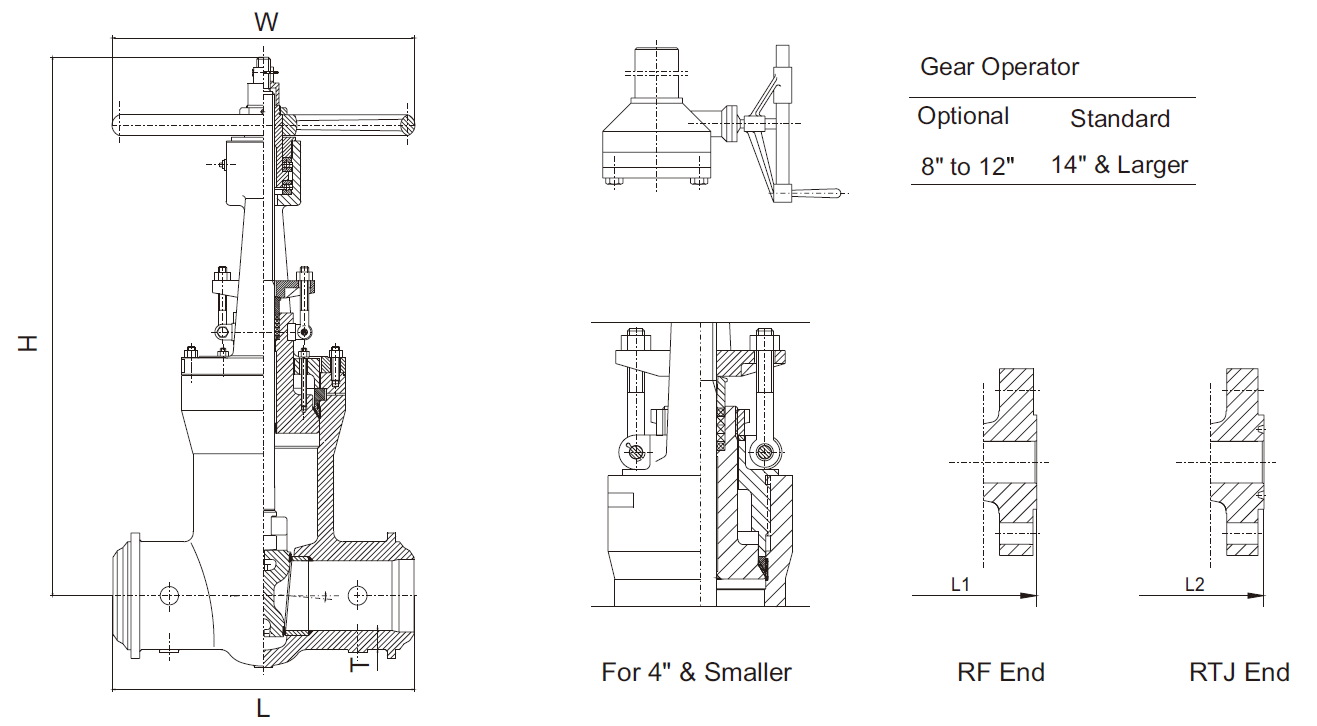

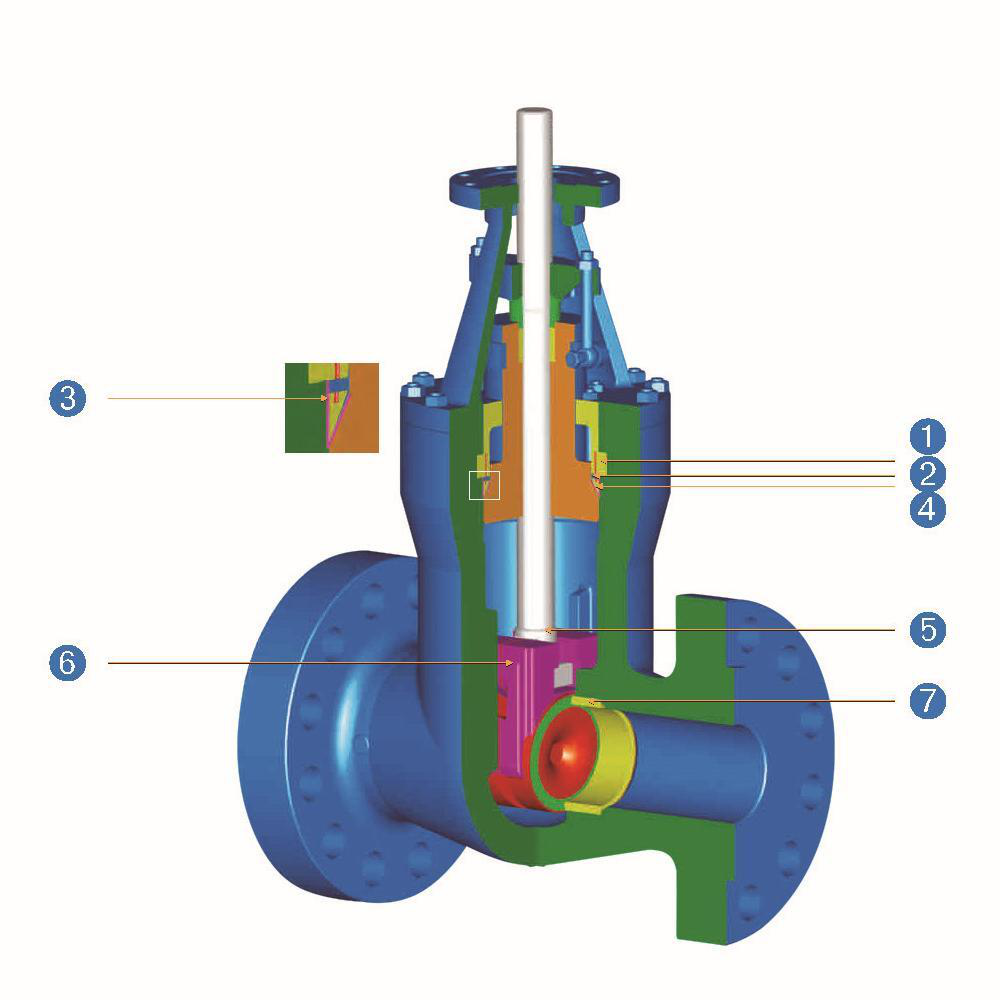

Structure: Bolted Bonnet/Pressure Seal Bonnet
Body Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800.
Nominal Size: 2 Inch, DN50
Nominal Class: 150 LB, PN10
Bore Type: Standard Bore(API 600)
End Connection: RF Flanged
Operation: Handwheel/Gear
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, F51, F53, F55.
Face to Face: ASME B16.10
Test and Inspection: API 598

Key Features

1. OS&Y (Outside Screw and Yoke) design.
2. Screwed-in back seat for added security.
3. Rising stem with the non-rising handwheel.
4. Flexible wedge for improved sealing.
5. Low emission design for environmental compliance.
