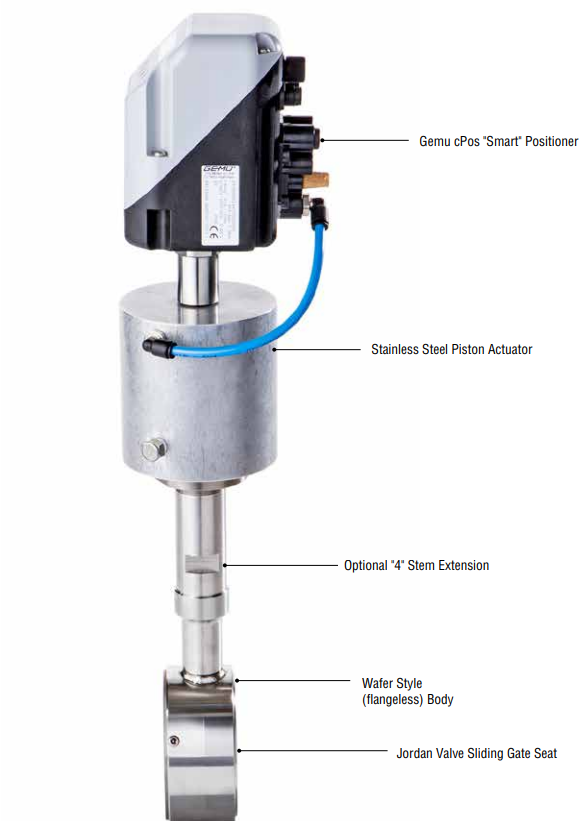

Wafer Style On/off Control Valve, 1-2 IN, Stainless Steel

SPECIFICATIONS

Product Name: Wafer Style Control Valves
Size Range: 1 Inch - 2 Inch, DN25-DN50
Pressure: Class 150 LB - 300 LB
Body Material: Stainless Steel, Carbon Steel
Max Pressure Drop: 125 psi (8,6 bar) with standard piston actuator and spring
Turndown Ratio: 100:1
Shutoff: ANSI Class IV Tightness
End Connection: Wafer
Shutoff: Class IV
Yoke Materials: Ductile Iron, NAMUR Cast Iron
Actuator Case Material: Stainless Steel
Packing Material: Spring loaded Teflon V-Ring to 500°F (260°C), Grafoil above 500°F (260°C)
Action: Direct, Reverse
Turndown Ratio Capability: 100:1

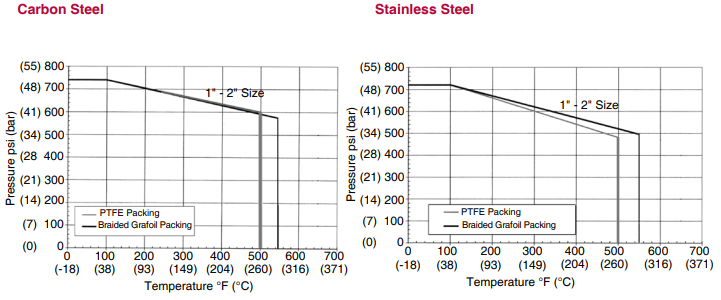

Pressure/Temperature Chart

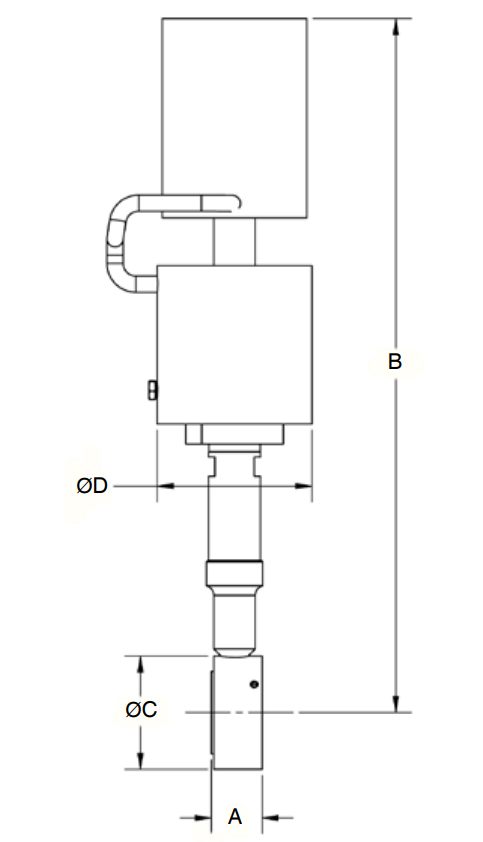

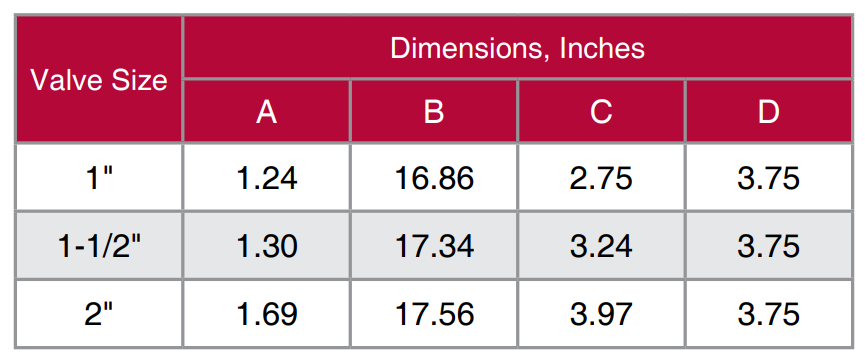

Dimensions
