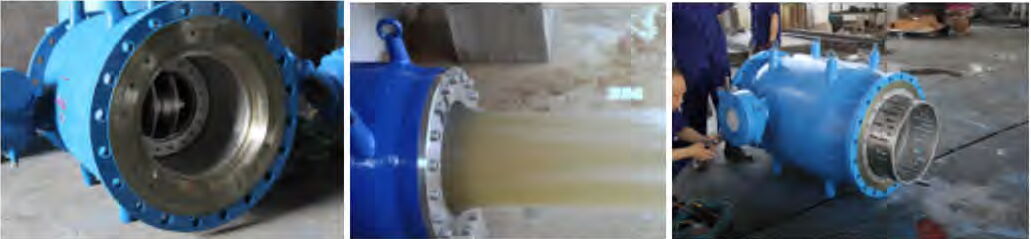

Electric Plunger Flow Control Valve, WCB, 8-64 Inch, 150 LB

SPECIFICATIONS
Product Name: Electric Plunger Flow Control Valves
Key Feature: Electric, Plunger Valve, Fully Closed, Zero Leakage
Body Material: Gray Cast Iron, HT200, HT250, QT450-10, ASTM A216 WCB
Size Range: DN200-DN1600, 8 Inch - 64 Inch
Pressure Rating: PN16-PN25, Class 150 LB
Stem: 2Cr13, 1Cr18Ni9Ti

Features & Benefits:
1. Tailored for sewage clogged chute and fouling scenarios.
2. Automatically maintains conduit medium parameters at preset values with precise accuracy.
3. Resilient against cavitation effects.
4. Integrated electronic circuits ensure compact size, high reliability, sensitivity, and simple installation.
5. Completely sealed for zero leakage.
6. Manual control capability provided.
7. Flexible installation orientation: horizontal or vertical.

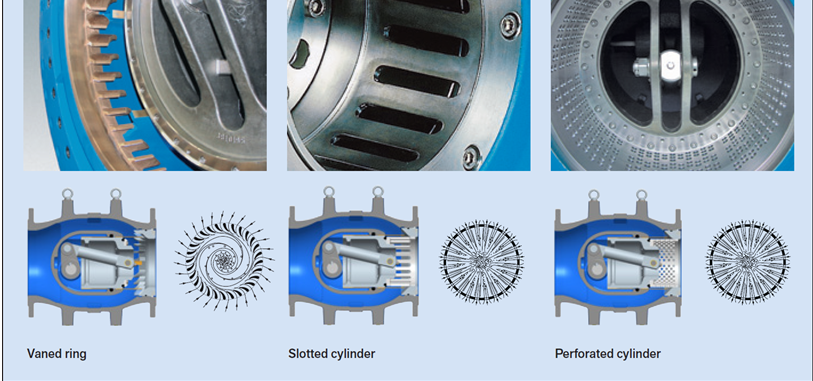

8. Various outlet options available, including vaned ring, slotted, perforated, and more, catering to diverse needs.
