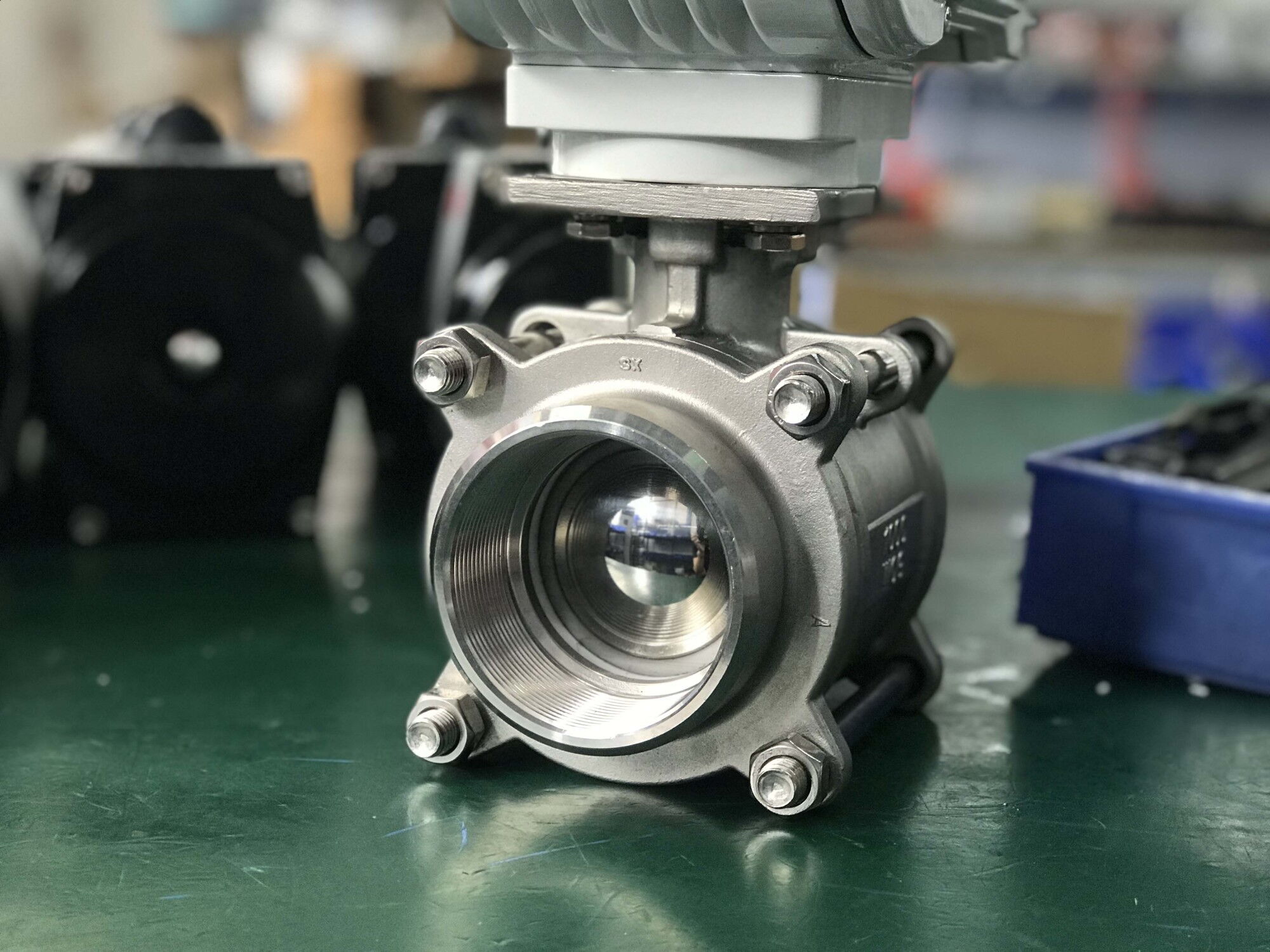

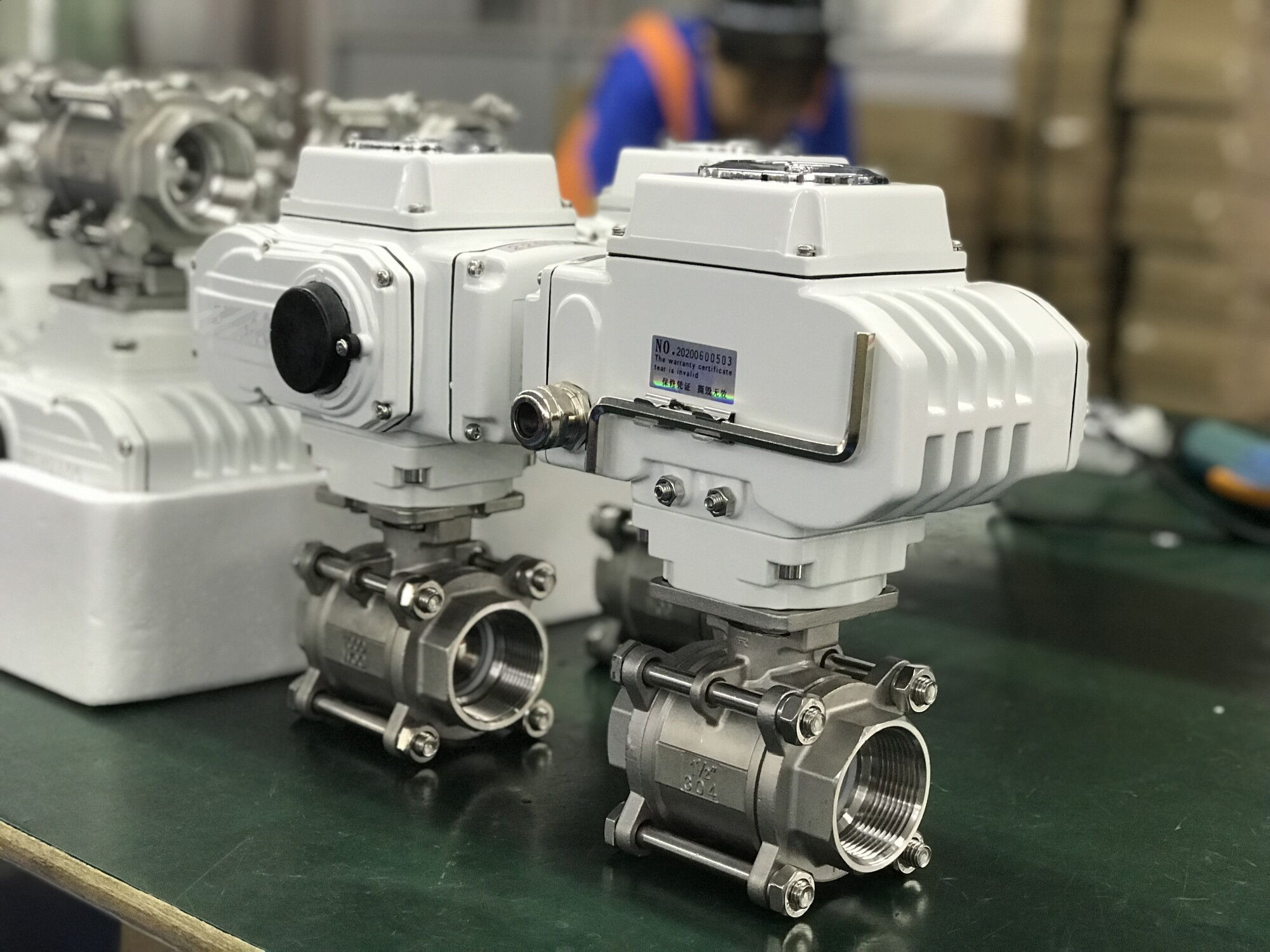

1000 WOG Motorized Ball Control Valve, Stainless Steel, 1/4-4 IN

SPECIFICATIONS
Product Name: 1000 WOG Motorized Ball Control Valve
Key Features: Fire Protection, On/Off, Zero Leakage, Explosion-Proof, 2 Way
Size Range: 1/4 Inch - 4 Inch, DN8-DN200
Pressure Rating: PN16, Class 150 LB
Material: Stainless Steel
Valve Ball: Stainless Steel
Sealing Material: PTFE
Port Size:  2.5 Inch
Applicable Standard: GB
Leakage: Zero leakage, Return difference: ±2.5%
Regulation Type:   Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V
Voltage Optional: AC110-240V 380V 50/60HZ: DC12V, DC24V, Special Voltage Can be Customized
Protection Class:  IP65, Explosion Proof Construction Are Available: EX ll BT4
Temperature of Media:  -10°C to 180°C
Actuator Type: On-Off Control
End Connection:  BSP Thread
