800-1500LB Check Valve, Welded Bonnet, Full Port (Y Type)
Key Specifications / Features
800-1500LB Check Valve Manufacturer: 800-1500LB Check Valve, 1/4-2 Inch, DN5-ND50, Welded Bonnet, Full Port (Y Type), ASME B16.34 Limited Class, BS 5352.
Request a quote
Detail Information
Design Construction:
ASME B16.34 Limited Class, BS 5352
Testing according to API 598
Body bonnet weld to ASME IX
Socket Weld Ends to ASME B16.11
Screwed Ends (NPT) to ASME B1.20.1
Butt Welding Ends to ASME B16.25
Marking MSS SP25
Spring on request only
Ratings:
- carbon steel class 800 2000 psig @ 100°F 138 bar + 38°C
- carbon steel class 1690 4225 psig @ 100°F 291 bar + 38°C

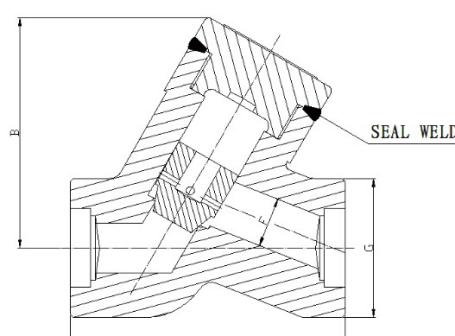

| 800-1500 LB | NPS | (in) | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 |
| DN | mm | 5 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | |
| F | 7 | 10 | 13 | 18 | 24 | 29 | 36.5 | 46.5 | ||
| A | class800 | 98 | 98 | 98 | 98 | 120 | 130 | 140 | 170 | |
| class1500 | 102 | 102 | 102 | 102 | 130 | 150 | 190 | 200 | ||
| H | class800 | 84 | 84 | 84 | 84 | 102 | 114 | 114 | 145 | |
| class1500 | 90 | 90 | 90 | 101 | 125 | 132 | 142 | 203 | ||
| kg | class800 | 3.0 | 2.8 | 2.7 | 3.7 | 6.5 | 9.0 | 10.1 | 11.0 | |
| class1500 | 3.2 | 3.1 | 3.0 | 4.1 | 7.2 | 11.0 | 12.0 | 13.8 | ||
