900-1500 LB Check Valve, Bolted Bonnet, Full & Standard Port
Key Specifications / Features
900-1500 LB Check Valve Manufacturer: 900-1500 LB Check Valve, 1/2-2 Inch, DN15-DN50, Bolted Bonnet, Full & Standard Port, Spiral-Wound Gasket.
Request a quote
Detail Information
Design Construction:
ASME B16.34, BS 5352
Testing according to API 598
Socket Weld Ends to ASME B16.11
Screwed Ends (NPT) to ASME B1.20.1
Butt Welding Ends to ASME B16.25
Marking MSS SP25
Spiral-wound gasket
Spring on request only
Ratings:
- carbon steel class 800 1975 psig @ 100°F 138 bar + 38°C
- carbon steel class 1500 3705 psig @ 100°F 255 bar + 38°C

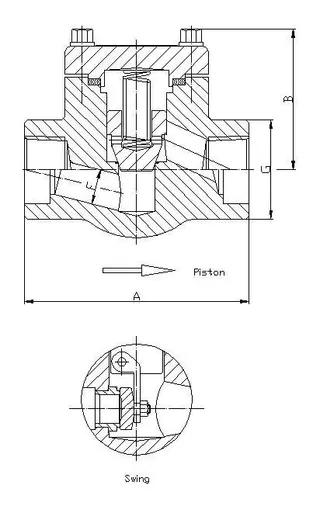

900-1500 LB |
NPS | （in) | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 |
| DN | mm |
15 | 20 | 25 | 32 | 40 | 50 | |
| F | 13 | 18 | 24 | 29 | 36.5 | 46.5 | ||
| A |
lift | 111 | 111 | 130 | 152 | 172 | 220 | |
| swing | 111 | 111 | 120 | 140 | 140 | 162 | ||
| H |
lift | 79 | 97 | 104 | 120 | 139 | 158 | |
| swing | 79 | 97 | 115 | 133 | 149 | 166 | ||
| kg |
lift | 3.4 | 4.8 | 6.9 | 10.7 | 8.8 | 12.3 | |
| swing | 3.6 | 4.3 | 10.7 | 14.6 | 12.6 | 15.5 |
