150LB-800LB Cryogenic Globe Valve, Bolted Bonnet
Key Specifications / Features
150LB-800LB Cryogenic Globe Valve Manufacturer: 150LB-800LB Cryogenic Globe Valve, 1/2-2 Inch, DN15-DN50, Bolted Bonnet, Full & Standard Port.
Request a quote
Detail Information
Design construction:
API 602, ASME B16.34, BS 5352, BS 6364
Testing according to API 598
Face to face according to ASME B16.10
Flanges according to ASME B16.5
Spiral wound gasket
Integral backseat
Marking MSS SP25
Outside Screw and Yoke (OS&Y)
Self aligning two piece packing gland
Welded body- bonnet joint also available
Ratings: stainless steel A182- F316
- class 150 = 275 psig @ 100°F 19 bar + 38°C
- class 300 = 720 psig @ 100°F 49 bar + 38°C

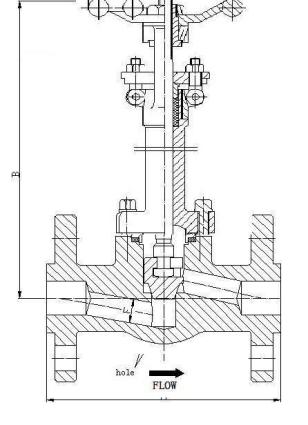

| 150LB-800LB | NPS | (in) | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 |
| DN | mm | 15 | 20 | 25 | 32 | 40 | 50 | |
| D | 13 | 18 | 24 | 29 | 36.5 | 46.5 | ||
| L |
SW:NPT OR RC | 92 | 111 | 120 | 172 | 172 | 200 | |
| CL150;CL300 | 152 | 178 | 203 | 216 | 229 | 267 | ||
| CL600 | 165 | 190 | 216 | 229 | 241 | 292 | ||
| PN1.6-4.0 | 130 | 150 | 160 | 190 | 200 | 230 | ||
| PN6.4-10.0 | 170 | 190 | 210 | 230 | 260 | 300 | ||
| H | 339 | 370 | 410 | 474 | 474 | 546 | ||
| W | 125 | 125 | 160 | 180 | 180 | 200 | ||
| KG |
SW:NPT OR RC | 7.2 | 9.5 | 13.5 | 20.6 | 19.8 | 29.0 | |
| CLASS300 | 8.4 | 10.2 | 15.0 | 23.0 | 22.0 | 33.4 | ||
| CLASS600 | 9.6 | 12.7 | 18.1 | 25.8 | 25 | 36 | ||
