ASME B16.34 Class 150 LB Cast Steel Gate Valve Flanged Ends

Name: ASME B16.34 Class 150 LB Cast Steel Gate Valve Flanged Ends
SKU: SJ-GATE V-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

China Class 150 LB Cast Steel Gate Valve Manufacturer Shinjo Supplies Class 150 LB Cast Steel Gate Valve, ASME B16.34, Flanged Ends, Gear Operator.

Request a quote

Detail Information

Features:
Outside Screw and Yoke (OS & Y), Rising Stem.
Bolted Bonnet.
Flexible Wedge (2" Solid).
Extended Bonnet for Cryogenic Services.
By Pass on Request.
Locking Device Optional.

Specifications:
Design: ASME B16.34/API 600.
Face to Face: ASME B16.10.
End to End: ASME B16.10.
End Flange: ASME B16.5/B16.47.
BW End: ASME B16.25.
Test: API 598.
Special: NACE MR-01-75.

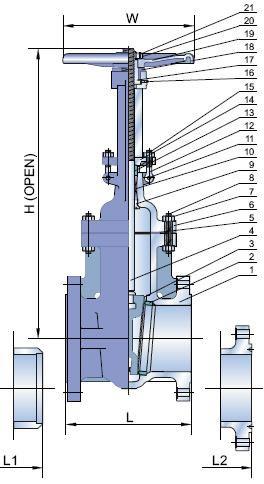

Structure of CL 150 LB Gate Valve

Parts & Materials:
1. Body: ASTM A216 GR.WCB.
2. Seat Ring: ASTM A105+Stellite Faced.
3. Disc: ASTM A216 GR.WCB+13Cr Faced.
4. Stem: ASTM A182 GR.F6.
5. Gasket: Soft Iron + Graphite.
6. Bonnet: ASTM A216 GR.WCB.
7. Bonnet Bolt Nuts: ASTM A194 GR.2H.
8. Bonnet Bolts: ASTM A193 GR.B7.
9. Backseat Bushing: ASTM A276 Type 410.
10. Stem Packing: Braided Graphite & Die formed Graphite Ring.
11. Eyebolt Pins: Carbon Steel.
12. Gland Eyebolts: ASTM A307 GR.B.
13. Gland: ASTM A276 Type 410.
14. Gland Flange: ASTM A216 GR.WCB.
15. Eyebolt Nuts: ASTM A194 GR.2H.
16. Grease Nipple: Carbon Steel.
17. Stem Nut: ASTM A439 GR.D-2.
18. Retaining Nut: Carbon Steel.
19. Hand wheel: Ductile Iron.
20. Hand wheel Nut: Carbon Steel.
21. Screw: Carbon Steel.
22. Yoke: ASTM A216 GR.WCB.
23. Yoke Pan Bolt: ASTM A194 GR.2H.
24. Nuts Yoke Pan Bolts: ASTM A193 GR.B7.
25. Bearing: Steel.
26. Lantern Ring on Request: ASTM A276 Type 410.

Size	in	2	2.5	3	4	6	8	10	12	14	16	18	20	24	28	30	32	36
	mm	50	65	80	100	150	200	250	300	350	400	450	500	600	700	750	800	900
L	in	7.00	7.5	8	9	10.5	11.5	13	14	15	16	17	18	20	24	24	28	28
	mm	178	191	203	229	267	292	330	356	381	406	432	457	508	610	610	711	711
L1	in	8.50	9.5	11.12	12	15.88	16.5	18	19.75	22.5	24	26	28	32	36	36	38	40
	mm	216	241	283	305	403	419	457	502	572	610	660	711	813	914	914	965	1016
L2	in	7.50	8	8.5	9.5	11	12	13.5	14.5	15.5	16.5	17.5	18.5	20.5	-	-	-	-
	mm	191	203	216	241	279	305	343	368	394	419	445	470	521	-	-	-	-
H	in	15.31	17.28	19.69	23.43	30.59	38.39	45.67	54.72	61.22	71.30	82.80	90.55	102.72	130.98	141.97	145.98	154.49
	mm	389	439	500	595	777	975	1160	1390	1555	1811	2303	2300	2609	3327	3606	3708	3924
W	in	8	8	10	10	14	14	16	18	22	24	25	27	30	24	24	24	24
	mm	200	200	250	250	350	350	400	450	560	600	640	680	760	610	610	610	610
Weight RF	kg	17	23	29	47	80	129	192	287	410	571	720	1170	1466	1931	2380	2490	3600
