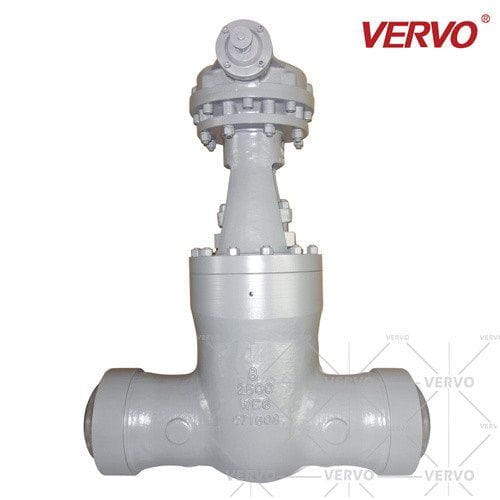

ASTM A216 WCB Gate Valve, 3 Inch, 900 LB, API 600, BW

Name: ASTM A216 WCB Gate Valve, 3 Inch, 900 LB, API 600, BW
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Discover high-quality ASTM A216 WCB gate valves at our factory. Available in a variety of specifications including 3-inch size, 900 LB pressure rating, API 600 compliant, DN80 and PN150 standards. These bolted bonnet gate valves feature butt weld ends and are suitable for a wide range of applications. Choose from a size range of 1/2 to 32 inches and pressure ratings from Class 150 to 2500 LB. Ensure reliable and efficient fluid control with our top-notch ASTM A216 WCB gate valves.

Request a quote

Detail Information

Gate valve, carbon steel, bolted bonnet, NPS 3, 900 LB, WCB, BW.

Valve description:
Gate valve, bolted bonnet, Butt weld.
Design: API 600.
Body: ASTM A216 WCB
Nominal size: 3 Inch.
Nominal class: 900 LB.
End Connection: Butt weld.
Face to face: ASME B16.10.
Test and inspection: API 598.

Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 32 Inch (DN15 - DN800).
End connection: BW, Flanged.
Pressure range: Class 150 - 2500 LB (PN16 - PN250).
Working temperature: -29℃ - +429℃.

Technical parameters and characteristics

Product	Gate valve.
Nominal diameter	1/2 Inch - 32 Inch.
Design temp.	Down to -29℃.
Design pressure	Class 150 - 2500 LB.
Material	Carbon Steel.
Design standard	API 600.
Face to face	ASME B16.10.
Connection end	BW, Flange.
Test standard	API 598.
Package	Plywood
Application	The oil and gas industry
Special test	Impact test.
