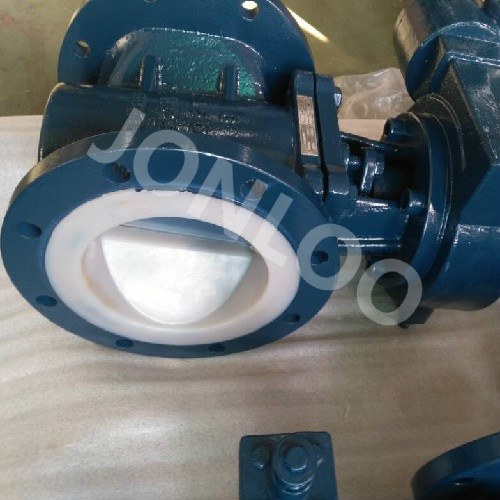

ANSI B16.34 Plug Valve, 2 Inch, 150 LB, API 6D, API 599

Name: ANSI B16.34 Plug Valve, 2 Inch, 150 LB, API 6D, API 599
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Shop our high-quality 2-inch carbon steel plug valve with a 150 LB rating. Manufactured according to industry standards such as API 6D, API 599, and ANSI B16.34, this valve guarantees reliable performance. With DN50 and PN20 specifications, it is designed to meet your specific needs. Made from ASTM A216 WCB carbon steel, this bolted bonnet valve ensures durability and longevity. The handle operation adds convenience to its operation. Order now for a dependable solution to your valve requirements.

Request a quote

Detail Information

Plug valve, carbon steel, NPS 2, 150 LB, WCB.

Valve description:
Plug valve, carbon steel, bolted bonnet
Design: ANSI B16.34, API 6D, API 599
Body: ASTM A216 WCB
Nominal size: 2 Inch.
Nominal class: 150 LB.
End Connection: RF
Test and inspection: BS 5146.
Operation: Handle

Product Range:
Body material: Carbon steel.
Normal diameter: 2 - 24 Inch (DN15 - DN150).
End connection: Flange, Socket weld, Screw.
Pressure range: Class 150 - 1500 LB (PN16 - PN160).
Working temperature: -29℃ - +429℃.

Technical parameters and characteristics

Product	Plug valve.
Nominal diameter	2 Inch - 24 Inch.
Design temp.	Down to -29℃.
Design pressure	Class 150 - 1500 LB.
Material	Carbon Steel.
Design standard	ANSI B16.34, API6D, API 599
Connection end	Flange, Socket weld, Screw.
Test standard	BS 5146.
Package	Plywood
Operation	Handle,Gear
