900LB-1500LB Globe Valve, Bolted Bonnet, Full & Standard Port
Key Specifications / Features
900LB-1500LB Globe Valve Manufacturer: 900LB-1500LB Globe Valve, 1/4-2 Inch, DN8-DN50, Bolted Bonnet, Full & Standard Port, Spiral-Wound Gasket.
Request a quote
Detail Information
Design Construction:
ASME B16.34, BS 5352
Testing according to api 598
Socket Weld Ends to ASME B16.11
Screwed Ends (NPT) to ASME B1.20.1
Butt Welding Ends to ASME B16.25
Spiral-wound gasket
Integal backseat
Loose solid disc
Marking MSS SP25
Outsind Screw and Yoke(OS&Y)
Self aligning two piece packing gland
Ratings:
- carbon steel class 800 1975 psig @ 100°F 138 bar + 38°C
- carbon steel class 1500 3705 psig @ 100°F 255 bar + 38°C

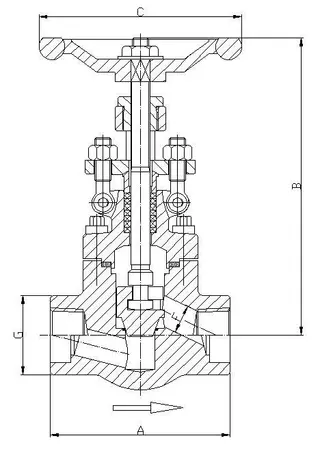

900 LB-1500 LB |
NPS | （in） | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 |
| DN | mm | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | |
| F | 7 | 10 | 13 | 18 | 24 | 29 | 36.5 | 46.5 | ||
| A | 111 | 111 | 111 | 130 | 152 | 172 | 220 | 236 | ||
| H | 207 | 207 | 207 | 240 | 258 | 290 | 337 | 354 | ||
| C | 100 | 100 | 100 | 125 | 160 | 160 | 180 | 240 | ||
| kg | 2.4 | 2.2 | 2.0 | 3.8 | 4.2 | 8.0 | 13.2 | 16.8 | ||
