150LB-800LB Globe Valve, Bolted Bonnet, Full & Standard Port
Model Number: YV-GBV-08
Key Specifications / Features
150LB-800LB Globe Valve Manufacturer: 150LB-800LB Globe Valve, 1/4-2 Inch, DN8-ND50, Bolted Bonnet, Full & Standard Port, ASME B16.34, BS 5352.
Detail Information
Design Construction:
ASME B16.34, BS 5352
Testing according to api 598
Socket Weld Ends to ASME B16.11
Screwed Ends (NPT) to ASME B1.20.1
Butt Welding Ends to ASME B16.25
Spiral-wound gasket
Integal backseat
Loose solid disc
Marking MSS SP25
Outsind Screw and Yoke(OS&Y)
Self aligning two piece packing gland
Ratings:
- carbon steel class 800 1975 psig @ 100°F 138 bar + 38°C
- carbon steel class 1500 3705 psig @ 100°F 255 bar + 38°C

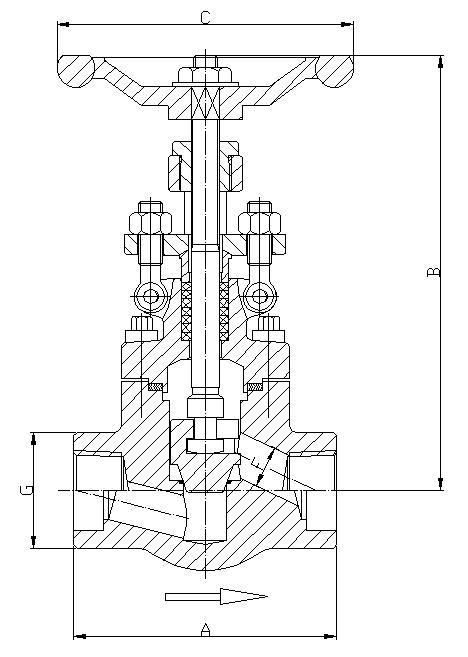

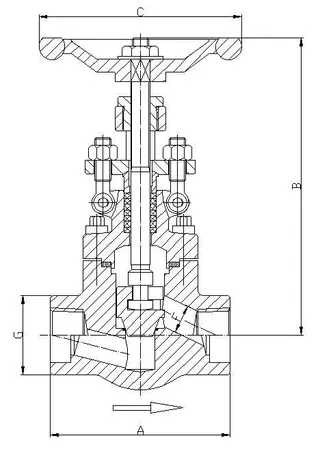

150LB-800LB |
DN |
R.P |
mm | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | - |
| (in) | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | - | |||
| F.P |
mm | - | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | ||
| (in) | - | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | |||
F |
R.B | 7 | 10 | 10 | 13 | 18 | 24 | 29 | 36.5 | - | ||
| F.B | - | 7 | 10 | 13 | 18 | 24 | 29 | 36.5 | 46.5 | |||
A |
R.B | 79 | 79 | 79 | 92 | 111 | 120 | 152 | 172 | - | ||
| F.B | - | 79 | 79 | 92 | 111 | 120 | 152 | 172 | 200 | |||
H |
R.B | 153 | 153 | 158 | 163 | 193 | 250 | 250 | 291 | - | ||
| F.B | - | 153 | 158 | 163 | 193 | 250 | 250 | 291 | 360 | |||
C |
R.B | 100 | 100 | 100 | 100 | 125 | 160 | 160 | 180 | - | ||
| F.B | - | 100 | 100 | 100 | 125 | 160 | 160 | 180 | 240 | |||
kg |
R.B | 1.9 | 1.8 | 2.1 | 2.1 | 3.3 | 7.5 | 7.5 | 11.4 | - | ||
| F.B | - | 2.1 | 2.3 | 2.3 | 3.6 | 7.8 | 8.2 | 12.0 | 15.0 | |||
