900LB-1500LB Gate Valve, Bolted Bonnet, Full & Standard Port
Key Specifications / Features
900LB-1500LB Gate Valve Manufacturer: 900LB-1500LB Gate Valve, 1/4-2 Inch, DN8-ND50, Full & Standard Port, Self Aligning Two Piece Packing Gland.
Request a quote
Detail Information
Design Construction:
API 602, ASME B16.34, BS 5352
Testing according to API 598
Spiral-wound gasket
Integral backseat
Socket Weld Ends to ASME B16.11
Screwed Ends (NPT) to ASME B1.20.1
Butt Welding Ends to ASME B16.25
Marking MSS SP25
Outside Screw and Yoke (OS&Y)
Self aligning two piece packing gland
Ratings:
- carbon steel class 800 1975 psig @ 100°F 138 bar + 38°C
- carbon steel class 1500 3705 psig @ 100°F 255 bar + 38°C

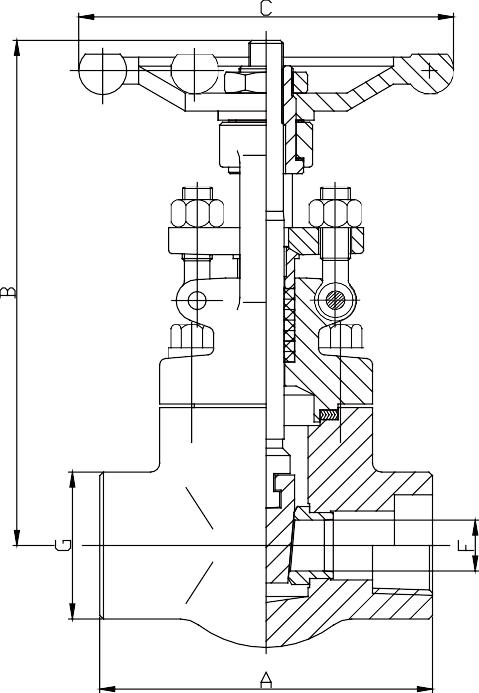

| 900LB-1500LB | NPS | （in） | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 |
| DN | mm | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | |
| F | 7 | 10 | 13 | 18 | 24 | 29 | 36.5 | 46.5 | ||
| A | 102 | 102 | 102 | 111 | 120 | 120 | 140 | 178 | ||
| B | 166 | 166 | 169 | 193 | 230 | 246 | 283 | 330 | ||
| W | 120 | 120 | 120 | 125 | 160 | 160 | 180 | 200 | ||
| kg | 3.6 | 3.5 | 3.4 | 3.8 | 7.8 | 11.9 | 12.2 | 21.9 | ||
