150LB-800LB Gate Valve, Bolted Bonnet, Full & Standard Port
Model Number: YV-GTV-07
Key Specifications / Features
150LB-800LB Gate Valve Manufacturer: 150LB-800LB Gate Valve, 1/4-2 Inch, DN8-ND50, Bolted Bonnet, Full & Standard Port, API 602, ASME B16.34, BS 5352.
Detail Information
Design Construction:
API 602, ASME B16.34, BS 5352
Testing according to API 598
Spiral-wound gasket
Integral backseat
Socket Weld Ends to ASME B16.11
Screwed Ends (NPT) to ASME B1.20.1
Butt Welding Ends to ASME B16.25
Marking MSS SP25
Outside Screw and Yoke (OS&Y)
Self aligning two piece packing gland
Ratings:
- carbon steel class 800 1975 psig @ 100°F 138 bar + 38°C
- carbon steel class 1500 3705 psig @ 100°F 255 bar + 38°C

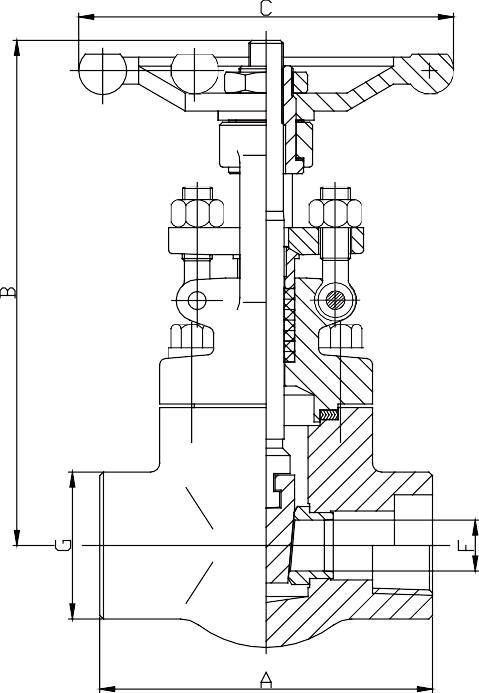

| 150LB-800LB | DN |
R.P | mm | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | - |
| (in) | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | - | |||
| F.P | mm | - | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | ||
| (in) | - | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | |||
| F | R.P | 7 | 10 | 10 | 13 | 18 | 24 | 29 | 36.5 | - | ||
| F.P | - | 7 | 10 | 13 | 18 | 24 | 29 | 36.5 | 46.5 | |||
| A | R.P | 79 | 79 | 79 | 92 | 111 | 120 | 120 | 140 | - | ||
| F.P | - | 79 | 79 | 92 | 111 | 120 | 120 | 140 | 178 | |||
| H | R.P | 149 | 151 | 151 | 158 | 185 | 239 | 243 | 279 | - | ||
| F.P | - | 149 | 151 | 158 | 158 | 239 | 243 | 279 | 328 | |||
| C | R.P | 100 | 100 | 100 | 100 | 125 | 160 | 160 | 180 | - | ||
| F.P | - | 100 | 100 | 100 | 125 | 160 | 160 | 180 | 200 | |||
| kg | R.P | 1.9 | 1.9 | 1.9 | 2.1 | 3.2 | 6.9 | 6.9 | 10.4 | - | ||
| F.P | - | 1.9 | 1.9 | 2.1 | 3.2 | 6.9 | 6.9 | 10.4 | 15.8 | |||
