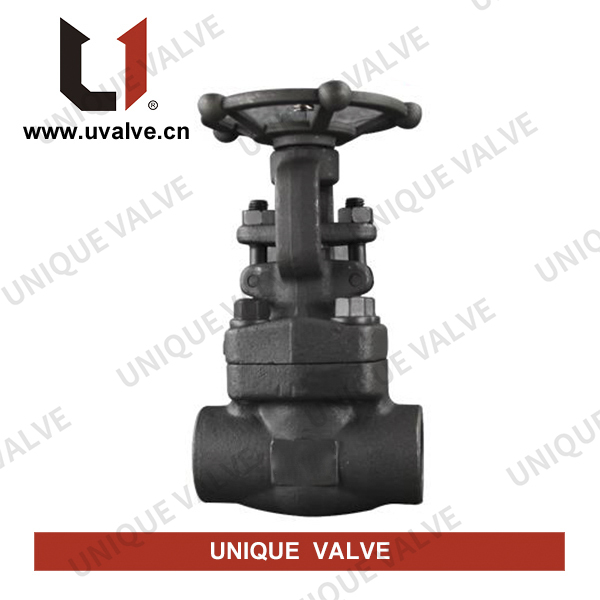

API 602 Gate Valve
Key Specifications / Features
API 602 Gate Valve Maker in China: API 602 Gate Valve, Full Port, DN15-DN50, 1/2-2 Inch, PN10-PN420, Class 150-2500 LB, API 602, BS 5352, BB or PSB.
Request a quote
Detail Information
API 602 Gate Valve, Forged Steel Gate Valve, Class 800 Gate Valve.
Construction is as follows:
Full Port or Standard Port.
Outside Screw and Yoke (OS & Y).
Bolted Bonnet with spiral-would gasket, threaded and seal welded bonnet and threaded
and pressure seal bonnet.
Integral Backseat.
Loose solid disc.
Socket Weld Ends to ASME B16.11.
Butt Weld Ends to ASME B16.25.
Screwed Ends to ANSI, ASME B1.20.1.
Flanged Ends to ASME B16.5.
| Product Name | Forged Gate Valve |
| Valve Type | Forged Gate Valve |
| Size Range | DN15-DN50, 1/2 Inch-2 Inch |
| Pressure Range | PN10-PN420, CLASS150-2500 |
| Connection End | SW, BW, NPT, RF, RTJ |
| Standard | API602, BS 5352, API 598, MSS SP-25 |
| Operation Way | Manual, Pneumatic Actuator, Electric Actuator |
| Packing Method | Standard Export worthy duly wooden boxes |
| Shipment Way | By Express, By Air or BySea, as customer request |
Construction is as follows:
Full Port or Standard Port.
Outside Screw and Yoke (OS & Y).
Bolted Bonnet with spiral-would gasket, threaded and seal welded bonnet and threaded
and pressure seal bonnet.
Integral Backseat.
Loose solid disc.
Socket Weld Ends to ASME B16.11.
Butt Weld Ends to ASME B16.25.
Screwed Ends to ANSI, ASME B1.20.1.
Flanged Ends to ASME B16.5.
| Part Names | Part Materials | |||||||
| Body | ASTM A105 | ASTM A182 LF2 | ASTM A182 F22 | ASTM A182 F304 | ASTM A182 F316 | ASTM A182 F304L | ASTM A182 F316L | B62 |
| Bonnet | ASTM A105 | ASTM A182 LF2 | ASTM A182 F22 | ASTM A182 F304 | ASTM A182 F316 | ASTM A182 F304L | ASTM A182 F316L | B62 |
| Disc/Ball/Wedge | ASTM A105 | SS 304 | ASTM A182 F22 | ASTM A182 F304 | ASTM A182 F316 | ASTM A182 F304L | ASTM A182 F316L | B62 |
| Stem | ASTM A105 | ASTM A182 F304 | ASTM A182 F6a | ASTM A182 F304 | ASTM A182 F316 | ASTM A182 F304L | ASTM A182 F316L | B62 |
| Seat/Seat Ring | 13%Cr | SS 304 | 13%Cr | ASTM A182 F304 | ASTM A182 F316 | ASTM A182 F304L | ASTM A182 F316L | B62 |
| Packing | Graphite/PTFE | |||||||
| Gasket | SS304+Graphite/SS304+Graphite | |||||||
| Bolts/Nuts | B7/2H | L7/4 | B16/4 | B8/8 | B8M/8M | B8/8 | B8M/8M | B8M/8M |
| Suitable Medium | W.O.G etc. | HNO3, CH3OOH etc. | Sea Water etc. | |||||
| Suitable Temperature | -29~425 °C | -46~340 °C | -46~340 °C | -196~427 °C | -196~427 °C | -196~427 °C | -196~427 °C | -29~220 °C |
