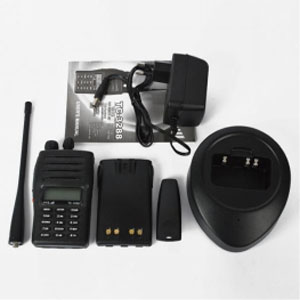

Portable Walkie Talkie TC-3288N
Key Specifications / Features
China Walike Talkie Manufacturer Truest provides Portable Walkie Talkie, long frequency range, LCD Backlight, emergency alarm, can memorize 128 Channels.
Request a quote
Detail Information
Main Features:
1. Three-color LCD Backlight.
2. Scanning function.
3. Emergency Alarm
4. PC Programming.
5. W/N Bandwidth Shift.
6. Keylock.
7. VOX.
8. Squelch Level.
9. Reverse Frequency.
10. Priority Channel Scan.
11. High/Low power.
12. TOT.
13. Call.
14. Channel named by letter.
15. Beep Function.
16. Setting QT.
17. Setting Offset Frequency.
18. Monitor.
19. Offset Frequency Selectable.
20. Frequency Step Selectable.
21. ANI Function (Optional).
22. Scrambler (Optional).
Technical Specifications:
General:
1. Frequency Range: VHF: 136-174MHz, 230-260MHz UHF: 350-390MHz, 400-470MHz, 440-512MHz.
2. Memory Channels: 128.
3. Channel Spacing: 25/12.5KHz.
4. Working Mode: Co-channel or Dis-channel Simplex.
5. Voltage: DC 7.2V.
6. Battery: 1200mAh (Li-ion).
7. Average battery life: About 15 hrs (at 5/5/90 duty cycle with battery saver)
8. Frequency Stability: ±2.5ppm.
9. Operating Temperature: -20°C to +50°C.
10. Antenna Impedance: 50Ω
11. Dimensions (H×W×D)(mm): 100mm×55mm×32mm.
12. Weight: about 220g.
Transmitter: (Measurements made per TIA/EIA-603):
1. Power Output: VHF:5W, UHF:4W.
2. Maximum Deviation: ≤5KHz.
3. Audio Distortion: ≤3%.
4. Modulation Characteristic: +3dB to -3dB.
5. Adjacent Channel Power: ≥65dB.
6. Spurious Radiation: ≤7.5μW.
7. Occupied Bandwidth: ≤16KHz.
8. S/N: 40/34dB.
Receiver (Measurements made per TIA/EIA-603):
1. RF Sensitivity: <0.2μV.
2. Audio Distortion: ≤3%.
3. Audio Response: +2dB to -10dB.
4. Adjacent Channel Selectivity: ≥60dB.
5. Intermodulation Rejection: ≥60dB.
6. Spurious Response: ≥60dB.
7. Block Characteristic: ≥85dB.
8. S/N: 40/34dB.
1. Three-color LCD Backlight.
2. Scanning function.
3. Emergency Alarm
4. PC Programming.
5. W/N Bandwidth Shift.
6. Keylock.
7. VOX.
8. Squelch Level.
9. Reverse Frequency.
10. Priority Channel Scan.
11. High/Low power.
12. TOT.
13. Call.
14. Channel named by letter.
15. Beep Function.
16. Setting QT.
17. Setting Offset Frequency.
18. Monitor.
19. Offset Frequency Selectable.
20. Frequency Step Selectable.
21. ANI Function (Optional).
22. Scrambler (Optional).
Technical Specifications:
General:
1. Frequency Range: VHF: 136-174MHz, 230-260MHz UHF: 350-390MHz, 400-470MHz, 440-512MHz.
2. Memory Channels: 128.
3. Channel Spacing: 25/12.5KHz.
4. Working Mode: Co-channel or Dis-channel Simplex.
5. Voltage: DC 7.2V.
6. Battery: 1200mAh (Li-ion).
7. Average battery life: About 15 hrs (at 5/5/90 duty cycle with battery saver)
8. Frequency Stability: ±2.5ppm.
9. Operating Temperature: -20°C to +50°C.
10. Antenna Impedance: 50Ω
11. Dimensions (H×W×D)(mm): 100mm×55mm×32mm.
12. Weight: about 220g.
Transmitter: (Measurements made per TIA/EIA-603):
1. Power Output: VHF:5W, UHF:4W.
2. Maximum Deviation: ≤5KHz.
3. Audio Distortion: ≤3%.
4. Modulation Characteristic: +3dB to -3dB.
5. Adjacent Channel Power: ≥65dB.
6. Spurious Radiation: ≤7.5μW.
7. Occupied Bandwidth: ≤16KHz.
8. S/N: 40/34dB.
Receiver (Measurements made per TIA/EIA-603):
1. RF Sensitivity: <0.2μV.
2. Audio Distortion: ≤3%.
3. Audio Response: +2dB to -10dB.
4. Adjacent Channel Selectivity: ≥60dB.
5. Intermodulation Rejection: ≥60dB.
6. Spurious Response: ≥60dB.
7. Block Characteristic: ≥85dB.
8. S/N: 40/34dB.
