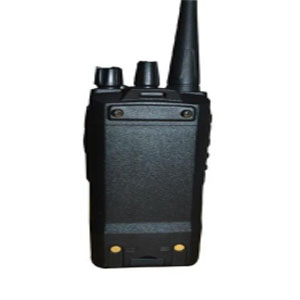

High Power Walike Talkie TC-8W
Key Specifications / Features
China Walike Talkie Manufacturer Truest provides High Power Walike Talkie, TC-8W, 400-470MHZ, 8w, for construction site, with voice prompt and flashlight.
Request a quote
Detail Information
Main Features:
1. Busy Channel Lock.
2. Battery Save.
3. Monitor Function.
4. Flashlight.
5. CTCSS,DCS.
6. TOT.
7. Low Power Remind.
8. Voice Prompt.
9. 3000mAh High Capacity Lithium Polymer Battery Pack.
Technical Specifications:
General:
1. Frequency Range: 400-470MHZ.
2. Frequency combination: Phase lock loop frequency synthesize.
3. Memory Channels: 16 Channels.
4. Operating Voltage: DC 7.4V.
5. Channel Spacing: 12.5/25KHz.
6. Battery Capacity: 3000MAH (Lithum Polymer battery).
7. Frequency Stability: ±2.5PPM.
8. CTCSS/DSC: CTCSS:50, DCS:105, Selectable.
9. Antenna Impedance: 50Ω.
10. Operating Temperature: -10℃ to +60℃.
11. Weight(approx.): 268g (Except battery and antenna).
12. Dimension (approx.): 136×56×40mm (Except Antenna).
Transmitter (Testing under TIA/EIA-603 standard):
1. Output Power: 8W (High), 3W (Low).
2. Modulation Mode: 16KF3E.
3. MAX. Frequency: ≤±5.0KHz.
4. Frequency Stability: ±5ppm.
5. Spurious Radiation: ≤60dB.
6. Residual Modulation: ≤-35dB.
7. Modulation Distortion: ≤5%(300-3000Hz).
8. FM Noise: ≤-40dB.
9. Audio Distortion: ≤5%.
10. CTCSS Frequency Deviation: 0.75KHz±50Hz.
1. Busy Channel Lock.
2. Battery Save.
3. Monitor Function.
4. Flashlight.
5. CTCSS,DCS.
6. TOT.
7. Low Power Remind.
8. Voice Prompt.
9. 3000mAh High Capacity Lithium Polymer Battery Pack.
Technical Specifications:
General:
1. Frequency Range: 400-470MHZ.
2. Frequency combination: Phase lock loop frequency synthesize.
3. Memory Channels: 16 Channels.
4. Operating Voltage: DC 7.4V.
5. Channel Spacing: 12.5/25KHz.
6. Battery Capacity: 3000MAH (Lithum Polymer battery).
7. Frequency Stability: ±2.5PPM.
8. CTCSS/DSC: CTCSS:50, DCS:105, Selectable.
9. Antenna Impedance: 50Ω.
10. Operating Temperature: -10℃ to +60℃.
11. Weight(approx.): 268g (Except battery and antenna).
12. Dimension (approx.): 136×56×40mm (Except Antenna).
Transmitter (Testing under TIA/EIA-603 standard):
1. Output Power: 8W (High), 3W (Low).
2. Modulation Mode: 16KF3E.
3. MAX. Frequency: ≤±5.0KHz.
4. Frequency Stability: ±5ppm.
5. Spurious Radiation: ≤60dB.
6. Residual Modulation: ≤-35dB.
7. Modulation Distortion: ≤5%(300-3000Hz).
8. FM Noise: ≤-40dB.
9. Audio Distortion: ≤5%.
10. CTCSS Frequency Deviation: 0.75KHz±50Hz.
