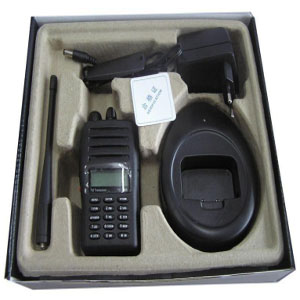

Dual Band Two Way Radio TC-3288
Model Number: TC-3288
Key Specifications / Features
China Two Way Radio Manufacturer Truest provides Dual Band Two Way Radio, TC-3288, large LCD Screen, Squelch Level, Priority Channel Scan, ANI Function.
Contact Supplier
Detail Information
Main Features:
1. Three-color LCD Backlight.
2. Scanning Function.
3. Emergency Alarm.
4. PC Programming.
5. W/N Bandwidth Shift.
6. Keylock.
7. VOX.
8. Squelch Level.
9. Reverse Frequency.
10. Priority Channel Scan.
11. High/Low power.
12. TOT.
13. Call.
14. Channel named by letter.
15. Beep Function.
16. Setting QT.
17. Setting Offset Frequency.
18. Monitor.
19. Offset Frequency Selectable.
20. Frequency Step Selectable.
21. ANI Function (Optional).
22. Scrambler (Optional).
Technical Specifications:
General:
1. Frequency Range: VHF: 136-174MHz, 230-260MHz UHF：350-390MHz, 400-470MHz, 440-512MHz.
2. Memory Channels: 128.
3. Channel Spacing: 25/12.5KHz.
4. Working Mode: Co-channel or Dis-channel Simplex.
5. Voltage: DC 7.2V.
6. Battery: 1400mAh (Li-ion).
7. Average battery life (at 5/5/90 duty cycle with battery saver): About 15 hrs.
8. Frequency Stability: ±2.5ppm.
9. Operating Temperature: -20℃ to 50℃.
10. Antenna Impedance: 50Ω.
11. Dimensions (H×W×D): 100mm×55mm×32mm.
12. Weight: about 220g.
Transmitter (Measurements made per TIA/EIA-603):
1. Power Output: VHF: 5W, UHF: 4W.
2. Maximum Deviation: ≤5KHz.
3. Audio Distortion: ≤3%.
4. Modulation Characteristic: ＋3dB to－3dB.
5. Adjacent Channel Power: ≥65dB.
6. Spurious Radiation: ≤7.5μW.
7. Occupied Bandwidth: ≤16KHz.
8. S/N: 40/34dB.
Receiver (Measurements made per TIA/EIA-603):
1. RF Sensitivity: ＜0.2μV.
2. Audio Distortion: ≤3%.
3. Audio Response: ＋2dB to 10dB.
4. Adjacent Channel Selectivity: ≥60dB.
5. Intermodulation Rejection: ≥60dB.
6. Spurious Response: ≥60dB.
7. Block Characteristic: ≥85dB.
8. S/N: 40/34dB.
1. Three-color LCD Backlight.
2. Scanning Function.
3. Emergency Alarm.
4. PC Programming.
5. W/N Bandwidth Shift.
6. Keylock.
7. VOX.
8. Squelch Level.
9. Reverse Frequency.
10. Priority Channel Scan.
11. High/Low power.
12. TOT.
13. Call.
14. Channel named by letter.
15. Beep Function.
16. Setting QT.
17. Setting Offset Frequency.
18. Monitor.
19. Offset Frequency Selectable.
20. Frequency Step Selectable.
21. ANI Function (Optional).
22. Scrambler (Optional).
Technical Specifications:
General:
1. Frequency Range: VHF: 136-174MHz, 230-260MHz UHF：350-390MHz, 400-470MHz, 440-512MHz.
2. Memory Channels: 128.
3. Channel Spacing: 25/12.5KHz.
4. Working Mode: Co-channel or Dis-channel Simplex.
5. Voltage: DC 7.2V.
6. Battery: 1400mAh (Li-ion).
7. Average battery life (at 5/5/90 duty cycle with battery saver): About 15 hrs.
8. Frequency Stability: ±2.5ppm.
9. Operating Temperature: -20℃ to 50℃.
10. Antenna Impedance: 50Ω.
11. Dimensions (H×W×D): 100mm×55mm×32mm.
12. Weight: about 220g.
Transmitter (Measurements made per TIA/EIA-603):
1. Power Output: VHF: 5W, UHF: 4W.
2. Maximum Deviation: ≤5KHz.
3. Audio Distortion: ≤3%.
4. Modulation Characteristic: ＋3dB to－3dB.
5. Adjacent Channel Power: ≥65dB.
6. Spurious Radiation: ≤7.5μW.
7. Occupied Bandwidth: ≤16KHz.
8. S/N: 40/34dB.
Receiver (Measurements made per TIA/EIA-603):
1. RF Sensitivity: ＜0.2μV.
2. Audio Distortion: ≤3%.
3. Audio Response: ＋2dB to 10dB.
4. Adjacent Channel Selectivity: ≥60dB.
5. Intermodulation Rejection: ≥60dB.
6. Spurious Response: ≥60dB.
7. Block Characteristic: ≥85dB.
8. S/N: 40/34dB.
