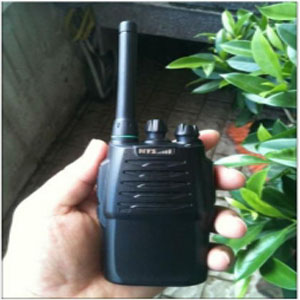

Mini Ham Two Way Radio TC-S1

China Two Way Radio Manufacturer Truest provides Mini Ham Two Way Radio, TC-S1, 3w, 400 - 470MHz, new designed style, monitor function, built-in QT and DQT.

Main Features:
1. Frequency range: 400 - 470MHz.
2. Output power: 3W.
3. Operating temperate: -20°C to +50°C.
4. Operating voltage: DC 3.6V (Li-ion).
5. simple model: no display, no keypad,    new designed style, exquisite appearance.
6. Push to talk function.
7. Monitor function.
8. voice prompt.
9. Time out timer.
10. Battery save function
11. Low battery warning function
12. Built-in QT and DQT.

Technical Specifications:

General:
1. Frequency Range: UHF: 400-470MHz.
2. Memory Channels: 16.
3. Channel Spacing: 25/12.5KHz.
4. Working Mode: Co-channel sordis-channels simplex.
5. Voltage DC 7.2V.
6. Battery: 1000mAh/1500mAh/1800mAh/2200mAh (Li-ion).
7. Average batteryl: fe (at 5/5/90 duty cycle with battery saver).
8. 1500mAh (Li-ion) About 15hrs.
9. Frequency Stability: ±2.5ppm.
10. Operating Temperature: -20°C to +50°C.
11. AntennaI mpedance: 50Ω.
12. Dimensions (H×W×D) (mm): 100mm×60mm×34mm.
13. Weight Appro: 200g.

Transmitter:
1. Power Output: 2-3W.
2. Maximum Deviation: ≤5KHz.
3. Audio Distortion: ≤3%.
4. Modulation Characteristic: +3dB to -3dB.
5. Adjacent Channel Power: ≥65dB.
6. Spurious Radiation: ≤7.5μW.
7. Occupied Bandwidth: ≤16KHz.
8. S/N: 40/34dB.

Receiver:
1. RF Sensitivity: <0.2μV.
2. Audio Distortion: ≤3%.
3. Audio Response: +2dB—-10dB.
4. Adjacent Channel Selectivity: ≥60dB.
5. Intermodulation Rejection: ≥60dB.
6. Spurious Response: ≥60dB.
7. Block Characteristic: ≥85dB.
8. S/N: 40/34dB.
