Detail Information

Close Coupled Grid Coupling Supplier - T35 Type - China Suoda

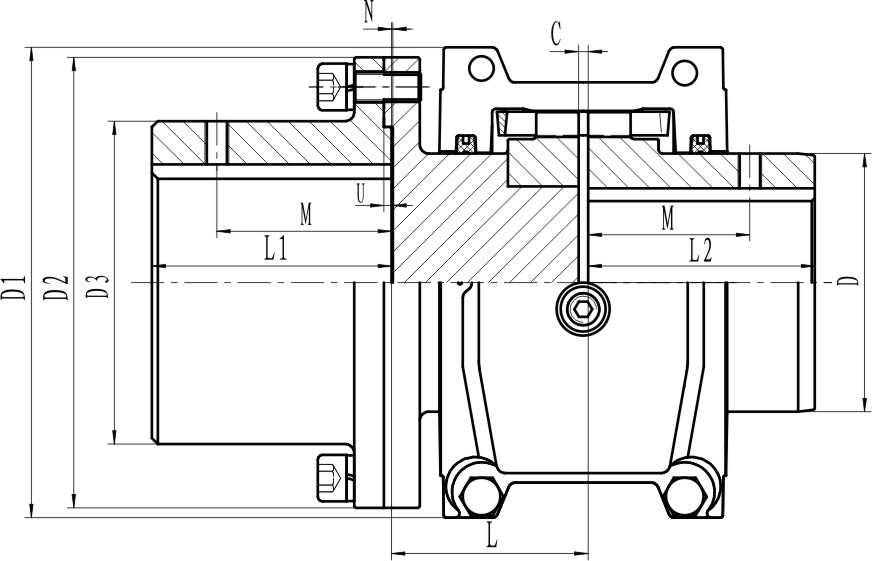

Size	Nominal Toque (Nm)	Allowable speed (rpm)	Bore max		Bore min	Wt (Kg)	Oil injection (Kg)	D1	L1	L		L2	D	D3	N	D2	M		U	C
			Shaft	T						Min	Max						Shaft	T
1020T	52	3600	35	29	13	2.90	0.027	97	35	45	102	48	40	52	1	86	27	39	2	3.2
1030T	150	3600	41	35	13	3.90	0.041	106	41	45	109	48	49	59	1	94	31	39	2	3.2
1040T	250	3600	54	41	13	5.90	0.054	114	54	45	109	51	57	78	1	113	27	40	2	3.2
1050T	435	3600	60	48	13	9.12	0.068	135	60	56	109	60	67	87	1	125	41	45	2	3.2
1060T	680	3600	73	54	19	13.93	0.086	148	73	62	166	64	76	103	2	145	43	52	3	3.2
1070T	990	3600	79	64	19	17.60	0.113	159	79	64	166	76	87	109	2	152	47	54	3	3.2
1080T	2050	3600	89	76	27	28.94	0.172	191	89	78	204	89	105	122	2	178	50	65	3	3.2
1090T	3700	3600	102	76	27	42.82	0.254	211	102	83	204	99	124	143	2	210	57	72	3	3.2
1100T	6300	2440	121	102	41*	66.22	0.426	251	90	103	205	121	142	171	2	251	/	/	3	4.8
1110T	9300	2250	140	114	41*	86.64	0.508	270	104	106	205	127	160	197	2	276	/	/	3	4.8
1120T	13600	2025	159	127	60*	129.27	0.735	308	119	125	205	149	179	226	2	319	/	/	4	6.4
1130T	19800	1800	178	152	67*	178.72	0.907	346	135	130	205	162	217	238	2	346	/	/	4	6.4
1140T	28500	1650	203	184	67*	252.20	1.134	130	152	135	205	184	254	267	2	386	/	/	4	6.4
