Name: Horizontal Grid Coupling - T31 Type
Brand: www.suodacoupling.com
SKU: Suoda 15 T31 01
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Detail Information

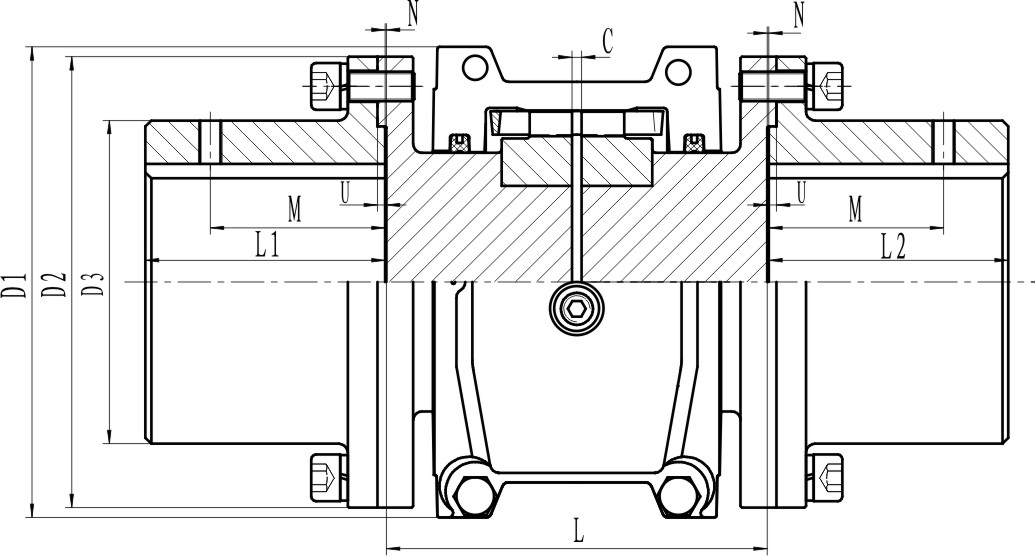

Horizontal Grid Coupling Supplier - T31 Type - China Suoda

Size	Nominal Torque (Nm)	Allowable speed rpm	Wt (Kg)		Oil injection (Kg)	Bore diameter	D1	L	L2	D	D2	L1	S	C	Size	Nominal Torque (Nm)
			max	min
1020T	52	3600	35	13	3.86	0.027	97	35	89	203	52	1	86	27	2	4.8
1030T	150	3600	41	13	5.22	0.041	106	41	89	216	59	1	94	31	2	4.8
1040T	250	3600	54	13	8.44	0.054	114	54	89	216	78	1	113	27	2	4.8
1050T	435	3600	60	13	12.79	0.068	135	60	111	216	87	1	125	41	2	4.8
1060T	680	3600	73	19	20.46	0.086	148	73	122	330	103	2	145	43	3	4.8
1070T	990	3600	79	19	24.77	0.113	159	79	127	330	109	2	152	47	3	4.8
1080T	2050	3600	89	27	39.96	0.172	191	89	155	406	122	2	178	50	3	4.8
1090T	3700	3600	102	27	59.87	0.254	211	102	164	406	143	2	210	57	3	4.8
1100T	6300	2440	121	38	90.26	0.426	251	90	203	406	171	2	251	/	3	6.4
1110T	9300	2250	140	51	118.39	0.508	270	104	210	406	197	2	276	/	3	6.4
1120T	13600	2025	159	64	177.81	0.735	308	119	246	406	226	2	319	/	4	9.5
1130T	19800	1800	178	76	236.78	0.907	346	135	257	406	238	2	346	/	4	9.5
1140T	28500	1650	203	89	326.59	1.134	384	152	267	406	267	2	386	/	4	9.5
