Tuned Grid Coupling Manufacturer - T63 Type - China Suoda

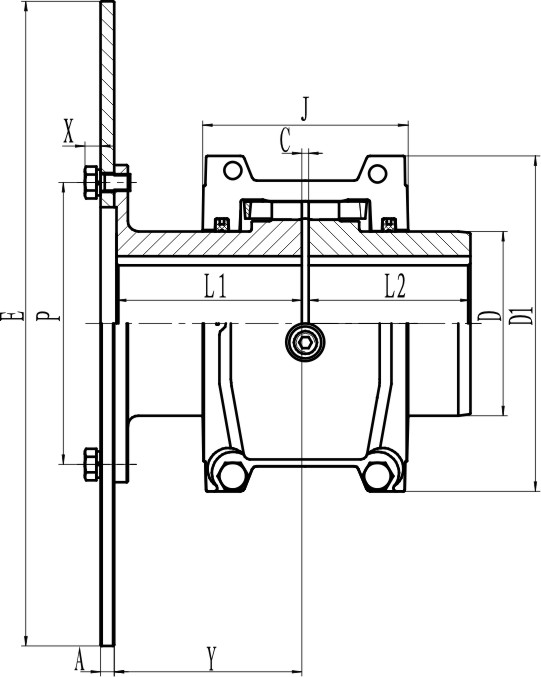

Size	Braking torque (Nm)	Brake disc size*thickness (E×A)	Allowable speed	Bore diameter		Wt	Oil injection	D1	L2	D	Y	J	P	L1	X	C
Size	Braking torque (Nm)	Brake disc size*thickness (E×A)	rpm	Bore diameter		(Kg)	(Kg)	D1	L2	D	Y	J	P	L1	X	C
				max	min
20T	0.9	Φ203*6.4	4500	29	13	2.55	0.027	102	48	40	60	67	71	60	12	3.2
30T	2.9	Φ254*6.4	4500	35	13	3.31	0.041	111	48	49	60	68	79	60	12	3.2
40T	5.4	Φ254*6.4	4500	41	13	4.26	0.054	117	51	57	60	70	98	60	12	3.2
50T	9.8	Φ254*6.4	4150	48	13	6.35	0.068	138	60	67	60	79	108	60	13	3.2
60T	17.4	Φ305*6.4	3800	54	19	9.57	0.086	151	64	76	89	92	125	88	15	3.2
70T	27.5	Φ305*6.4	3250	64	19	12.34	0.113	162	76	87	89	95	133	88	15	3.2
80T	53	Φ305*6.4	2850	76	27	19.78	0.172	194	89	105	89	116	152	88	18	3.2
90T	90	Φ406*12.7	2700	89	27	28.39	0.254	213	99	124	88	122	179	88	27	3.2
100T	158	Φ406*12.7	2400	102	41	47.72	0.426	251	121	142	119	155	216	119	29	4.8
110T	237	Φ457*12.7	2250	114	41	64.86	0.508	270	127	160	146	162	241	146	29	4.8
120T	361	Φ508*12.7	2025	127	60	92.08	0.735	308	149	179	150	192	276	149	33	6.4
130T	508	Φ559*12.7	1800	152	67	131.54	0.907	346	162	217	153	195	295	152	36	6.4
140T	734	Φ610*12.7	1650	184	67	184.61	1.134	384	184	254	160	201	330	159	38	6.4
150T	1016	Φ762*12.7	1500	203	108	253.1	1.905	453	183	269	180	271	368	183	31	6.4
160T	1411	Φ914*12.7	1350	229	121	336.11	2.812	501	198	305	195	279	400	198	31	6.4
