Detail Information
JBB series mechanical diaphragm metering pumps are spring type pumps with mirco motor and reducer. It is robust and oil-free design. The rated power is only 60W, while the max pressure can be up to 10 bars, and max capacity can be up to 130lph. It is an ideal metering pump for all chemical dosing applications.
Features:
l Compact and robust design.
l Multilayer compostie PTFE diaphragm, long service life.
l Reinforced plate design after the diaphragm.
l Flow adjustment by the micrometer manually.
l Fluid max temperture: 70℃(158℉）
Materials:
l Pump head: PVC, PTFE,SS304,SS316
l Diaphragm: Composite PTFE diaphragm
l Check Valve: PVC, PTFE,SS304,SS316 (same as pump head selection)
l Valve ball: Ceramic or SS304
l Valve seat: PTFE,SS316
Power Supply:
380V 3 phase on standard, single phase or other voltage on request; DC powered motor 12V or 24V is available.
Parameter Table:
| Model | 50Hz | 60 Hz | Pressure | Diaphragm Dia. (mm) |
Power | |||||
| Flow (lph) |
Flow (gph) |
SPM | Flow (gph) |
Flow (lph) |
SPM | (Bar) | (Psi) | |||
| JBB15/1.0 | 14 | 3.7 | 100 | 4.4 | 17 | 120 | 10 | 145 | 60 | 60W |
| JBB25/1.0 | 25 | 6.6 | 100 | 7.9 | 30 | 120 | 10 | 145 | ||
| JBB40/0.7 | 38 | 10 | 150 | 12 | 46 | 180 | 7 | 102 | ||
| JBB60/0.6 | 60 | 16 | 100 | 19 | 72 | 120 | 6 | 87 | 84 | |
| JBB80/0.5 | 80 | 21 | 100 | 25 | 96 | 120 | 5 | 73 | ||
| JBB100/0.4 | 100 | 26 | 150 | 32 | 120 | 180 | 4 | 58 | ||
| JBB130/0.4 | 130 | 34 | 150 | 41 | 156 | 180 | 4 | 58 | ||
Standard Connection
| Model | PVC | PTFE | SS |
| JBB15~JBB40 | 6.5*10mm PE hose | RC 1/2"F | DN15 welding union |
| JBB60~JBB130 | 10*14mm PE hose | RC 1/2"F | DN15 welding union |

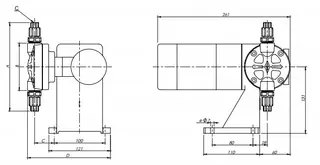

Installation Drawing:
