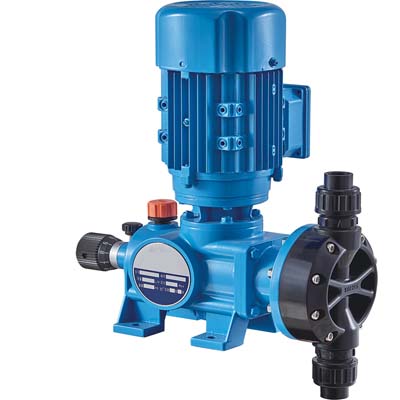

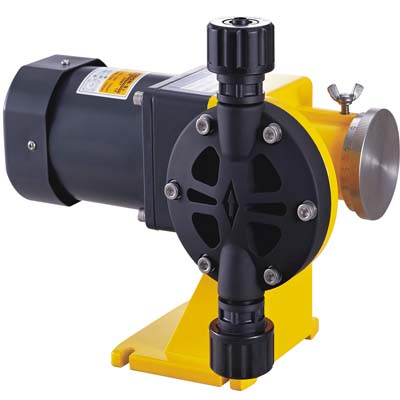

GM mechanical diaphragm metering pump which is reliable pump require minimal maintenance with high performance. It has long-term cost benefits of low lifecycle cost. Double-diaphragm design is available for sensitive liquid dosing. Each pump with the reinforced plate to protect the diaphragm to increase the working life. Both stroke length and stroke speed can be adjusted to alter capacity.GM pump are very durable for chemicals dosing such as aluminum sulfate, polymers, alkalis, sodium hydroxide, acids, anti-scaling and anti-foaming agents ,chlorine and so on. It is widely used in waste treatment treatment, industrial chemical process, agriculture, and many more applications.
Features:
l Capacity range: 25 lph -500lh under 50Hz
l Pressue range: 5-10 bars
l Max Processing Temperature: from 70℃ (158℉)
l Stroke Adjustment: 0-100%
l Suction lift: 1.5m
l Accuracy: ±2% of set point
Materials:
l Pump head: PVC, PTFE,SS304,SS316
l Diaphragm: Composite PTFE diaphragm
l Check Valve: PVC, PTFE,SS304,SS316 (same as pump head selection)
l Valve ball: Ceramic, SS304,SS316
Power Supply:
380V 3 phase on standard, single phase or other voltage on request; EX-proof motor is available on request.
Parameter Table:
| Model | 50Hz | 60 Hz | Pressure | Diaphragm Dia. (mm) |
Power kW(HP) |
|||||
| Flow (lph) |
Flow (gph) |
SPM | Flow (gph) |
Flow (lph) |
SPM | (Bar) | (Psi) | |||
| GM 25/1.0 | 25 | 6.6 | 48 | 7.9 | 30 | 58 | 10 | 145 | 60 | 0.37(0.5) |
| GM 50/1.0 | 50 | 13 | 96 | 16 | 60 | 115 | 10 | 145 | ||
| GM 80/0.7 | 80 | 21 | 48 | 25 | 96 | 58 | 7 | 102 | 112 | |
| GM 120/0.7 | 120 | 32 | 48 | 38 | 144 | 58 | 7 | 102 | ||
| GM 170/0.7 | 170 | 45 | 96 | 54 | 204 | 115 | 7 | 102 | ||
| GM 240/0.5 | 240 | 63 | 96 | 76 | 288 | 115 | 5 | 73 | ||
| GM 320/0.5 | 310 | 82 | 144 | 98 | 372 | 173 | 5 | 73 | ||
| GM 420/0.5 | 420 | 111 | 144 | 133 | 504 | 173 | 5 | 73 | ||
| GM 500/0.5 | 480 | 127 | 144 | 152 | 576 | 173 | 5 | 73 | ||
Standard Connection
| Model | PVC | PTFE | SS |
| GM25~GM50 | 6.5*10mm PE hose | RC 1/2"F | DN15 welding union |
| GM80~GM120 | DN15 glue union | RC 1/2"F | DN15 welding union |
| GM170~GM500 | DN15 glue union | RC 3/4"F | RC 3/4"F |

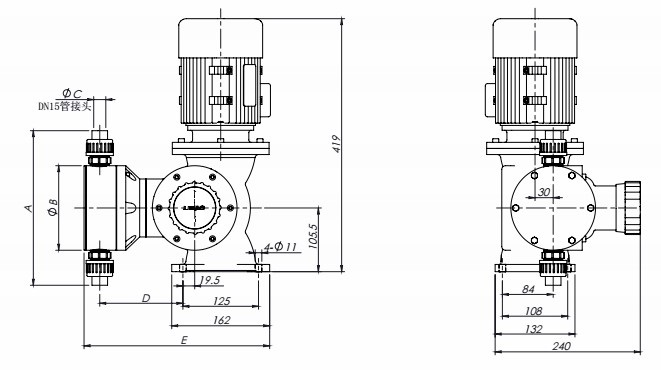

Installation Drawing:
