KD mechanical diaphragm metering pump is driven by motor pump, metering pump, suitable for low pressure fluid precise measurement, there are a variety of optional material pump, PTFE diaphragm with multilayer composite material. Because of its high measuring accuracy and stable performance and high requirements, and is widely applied in wastewater treatment, food agent added, all kinds of special medium transport. It is capable of handling chemicals range from 15lph-180 lph with pressure 8-5 bars.
Features:
l Compact and simle design.
l Multilayer compostie PTFE diaphragm , long service life.
l Reinforced plate design after the diaphragm.
l Flow adjustment by the micrometer manually.
l Fluid max temperture: 70℃(158℉）
Materials:
l Pump head: PVC, PTFE,SS304,SS316
l Diaphragm: Composite PTFE diaphragm
l Check Valve: PVC, PTFE,SS304,SS316 (same as pump head selection)
l Valve Ball: Ceramic;SS304;SS316
l Valve Seat: PTFE,SS316
Power Supply:
380V 3 phase on standard, single phase or other voltage on request; EX-proof motor is available on request.
Parameter Table:
| Model | 50Hz | 60 Hz | Pressure | Power (kW) |
|||||
| Flow (lph) |
Flow (gph) |
SPM | Flow (gph) |
Flow (lph) |
SPM | (Bar) | (Psi) | ||
| KD 15/0.8 | 15 | 4.0 | 48 | 4.8 | 18 | 58 | 8 | 116 | 0.18 |
| KD 20/0.8 | 20 | 5 | 48 | 6 | 24 | 58 | 8 | 116 | |
| KD 40/0.8 | 40 | 11 | 96 | 13 | 48 | 115 | 8 | 116 | |
| KD 60/0.6 | 60 | 16 | 48 | 19 | 72 | 58 | 6 | 87 | |
| KD 80/0.6 | 80 | 21 | 96 | 25 | 96 | 115 | 6 | 87 | |
| KD 120/0.5 | 120 | 32 | 96 | 38 | 144 | 115 | 5 | 73 | |
| KD 180/0.5 | 180 | 47.6 | 144 | 57.1 | 216 | 173 | 5 | 73 | |
Standard Connection
Model PVC PTFE SS KD15~KD40 6.5*10mm PE hose RC 1/2"F DN15 welding union
KD60~KD180 DN15 glue union RC 1/2"F DN15 welding union
| Model | PVC | PTFE | SS |
| KD15~KD40 | 6.5*10mm PE hose | RC 1/2"F | DN15 welding union |
| KD60~KD180 | DN15 glue union | RC 1/2"F | DN15 welding union |

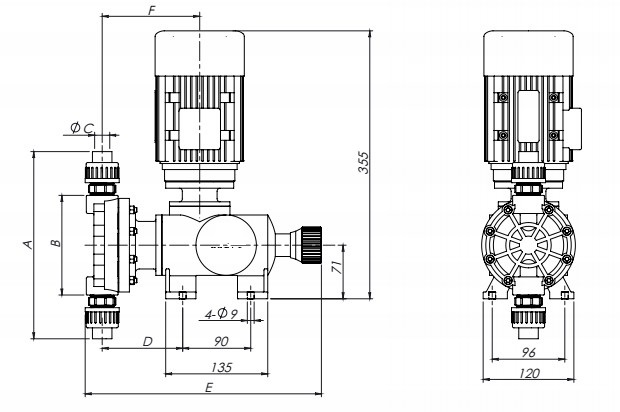

Installation Drawing:
