GB-S Duplex Heads Mechanical Metering Pump (1300lph-3600lph, 5-3bars)
Key Specifications / Features
China Metering Pump Manufacturer Shinjo Supplies GB-S Duplex Heads Mechanical Metering Pump (1300lph-3600lph, 5-3bars).
Request a quote
Detail Information
GB-S duplex heads mechanical diaphragm metering pump with high flow rate design. It is also robust and compact design which is easy for installation and cost effective. The duplex heads can reduce the pulse and energy. It is capable of handling flow rate up to 3600lph and pressure up to 5 bars.
Features:
l Capacity range: 1300 l/h -3600lh under 50Hz
l Pressue range: 3-5 bars
l Max Processing Temperature: from 0-70℃ (158℉)
l Stroke Adjustment: 0-100%
l Suction lift: 1.5m
l Accuracy: ±2% of set point
Materials:
l Pump head: PVC, PTFE,SS304,SS316
l Diaphragm: Composite PTFE diaphragm
l Check Valve: PVC, PTFE,SS304,SS316 (same as pump head selection)
l Valve ball: Ceramic, SS304,SS316
Power Supply:
380V 3 phase on standard, single phase or other voltage on request; EX-proof motor is available on request.
Parameter Table:
| Model | 50Hz | 60 Hz | Pressure | Diaphragm Dia. (mm) |
Power kW(HP) |
|||||
| Flow (lph) |
Flow (gph) |
SPM | Flow (gph) |
Flow (lph) |
SPM | (Bar) | (Psi) | |||
| GB-S1300/0.5 | 1300 | 343 | 96 | 412 | 1560 | 115 | 5 | 73 | 148 | 0.75(1) |
| GB-S1700/0.5 | 1700 | 449 | 144 | 539 | 2040 | 173 | 5 | 73 | 1.5(2) | |
| GB-S2000/0.4 | 2000 | 528 | 634 | 2400 | 4 | 58 | ||||
| GB-S2800/0.3 | 2800 | 740 | 888 | 3360 | 3 | 44 | 185 | |||
| GB-S3600/0.3 | 3600 | 951 | 1141 | 4320 | 3 | 44 | ||||
Standard Connection
| Model | PVC | PTFE | SS |
| GB-S1300~GB-S2000 | DN25 Glue union | DN25 PVC Flange | RC 1"F |
| GB-S2800~GB-S3600 | DN40 Glue union | DN40 PVC Flange | RC 1.5"F |

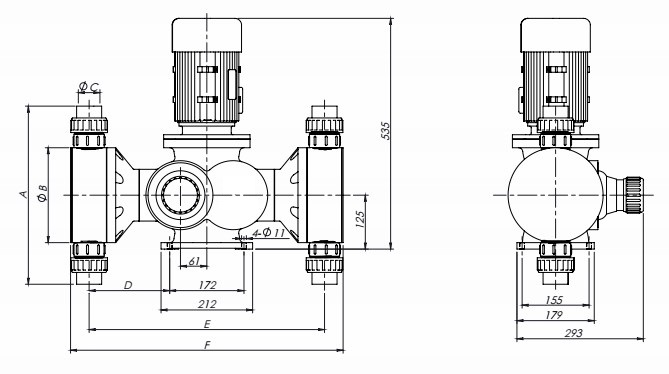

Installation Drawing:
