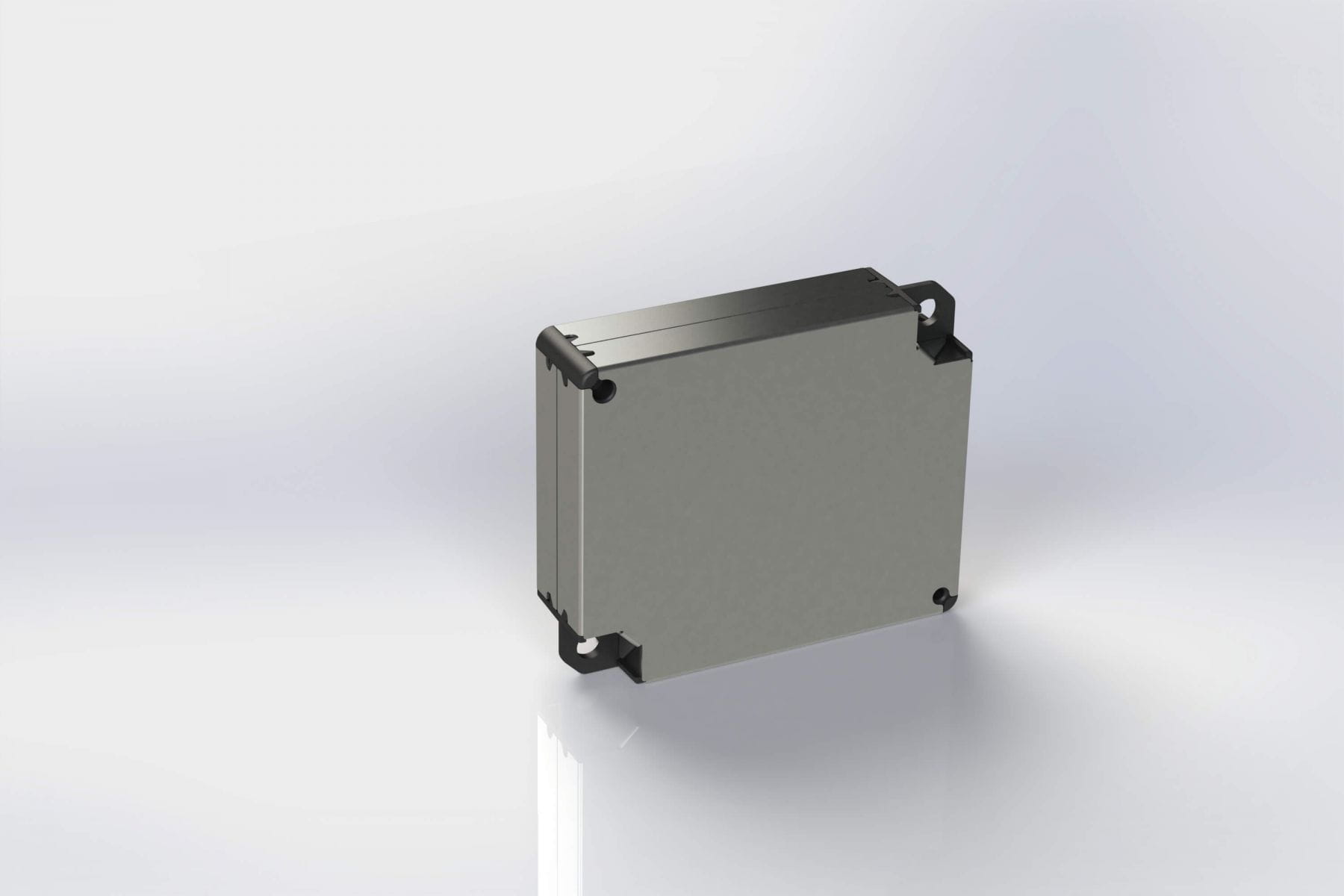

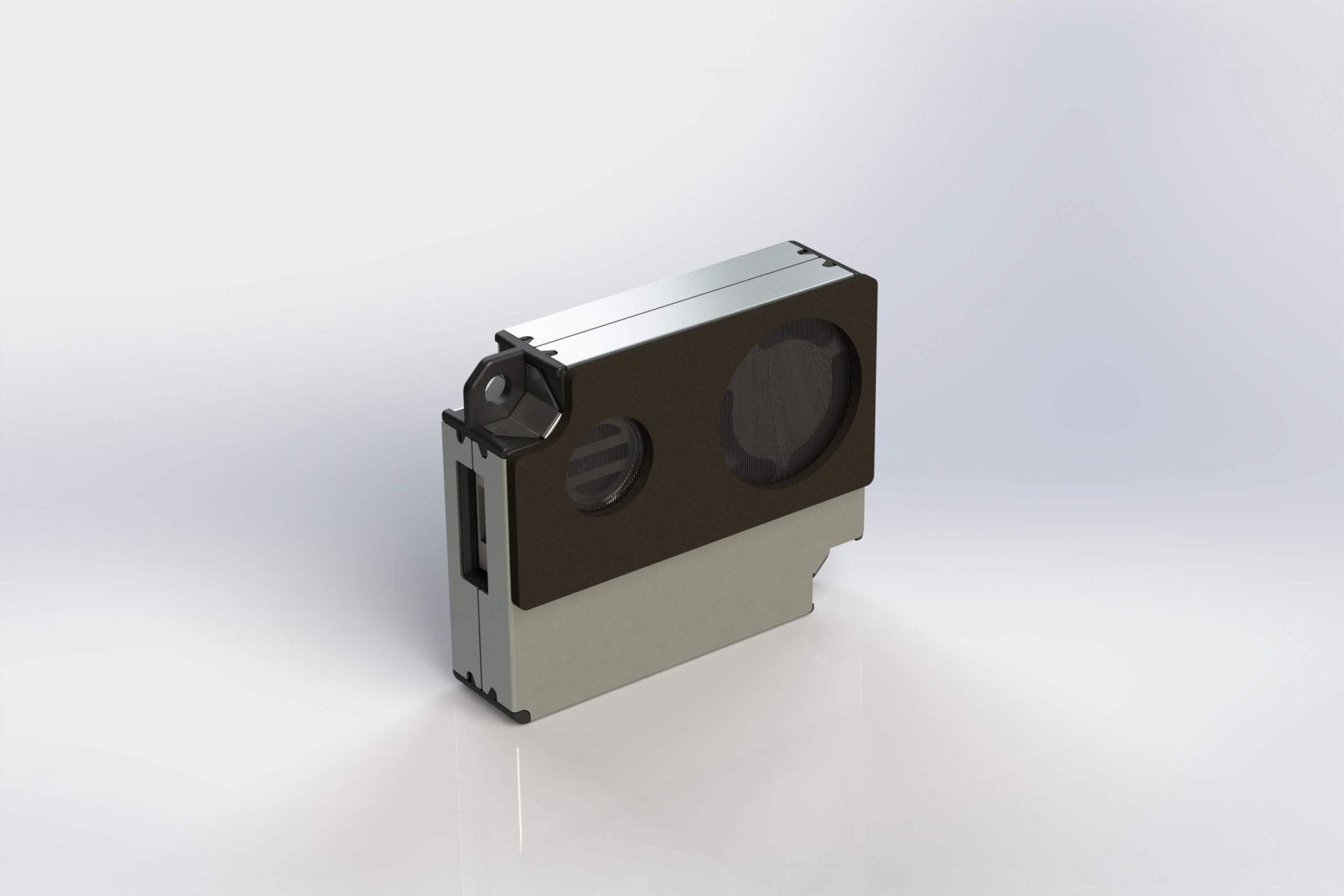

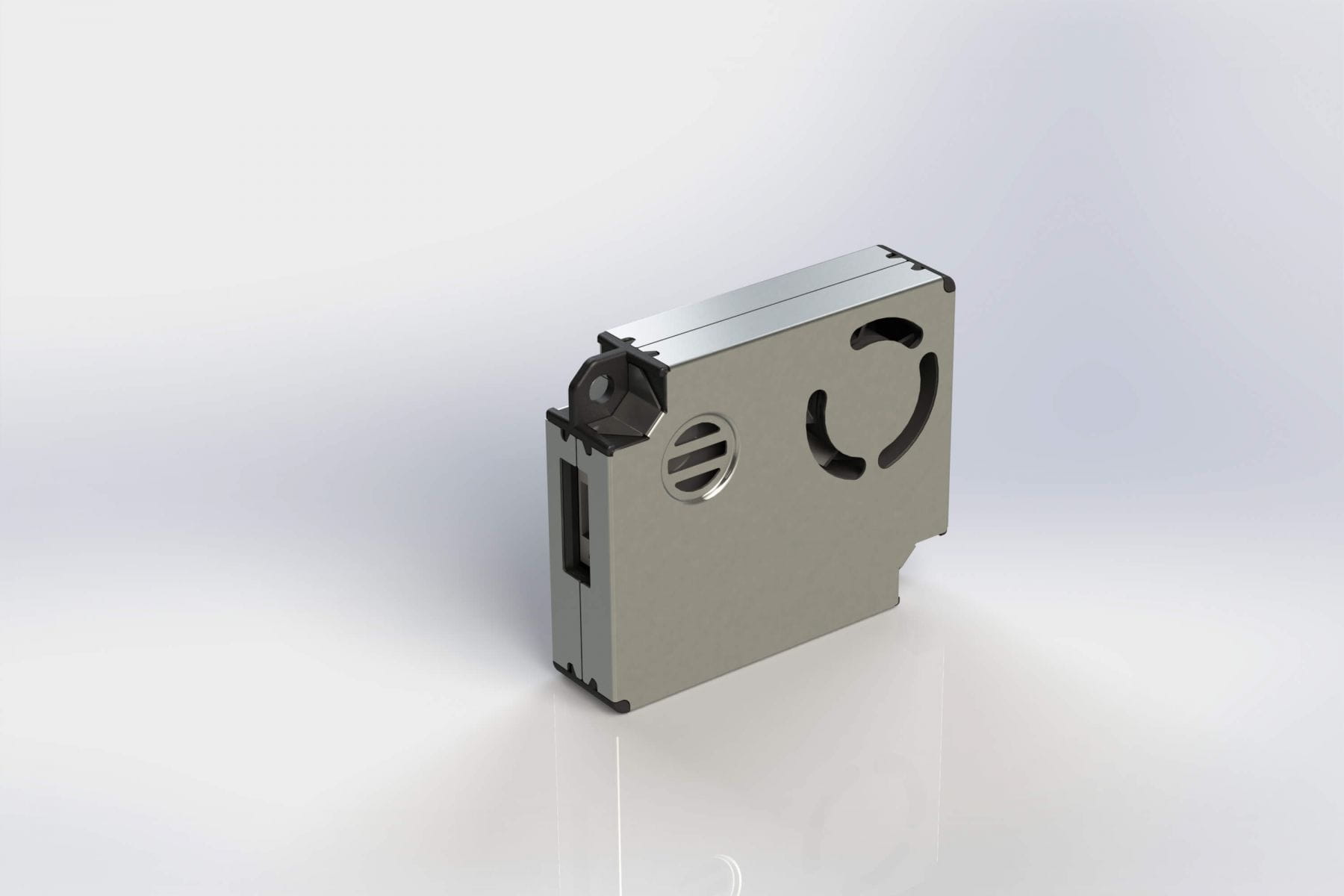

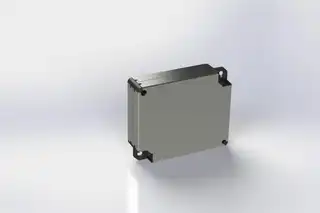

Laser Type PM Sensor, High Accuracy, Fast Response
Key Specifications / Features
Laser Type PM Sensor Manufacturer: High Accuracy Laser PM Sensors, Synchronous PM1.0, PM2.5, PM10, BSP Detection, Fast Response, TTL Serial Port Output.
Request a quote
Detail Information
Features
·Synchronous detection of PM1.0, PM2.5, PM10, BSP
·Laser scattering principle
·High accuracy and fast response
·Reliable digital output
·Ultra-low power consumption
·Strong anti-interference capability
·Standard TTL serial port output of data
·Effective large particulate matter detection
·Intelligent identification technology for dust source and particle size
·Integrated calibration
Application Environments
·Air Purifier
·Fresh Air System
·Air Conditioner
·Car Air Purifier
·Air Quality Detector
·Environmental Monitoring
·Handheld Air Quality Detector
Technical Measurement Indexes
(*: The concentration level ranges from 0-100. The mass concentration of particles＜6μg/m3 corresponds to level 0; 6-12μg/m3 corresponds to level 1, and so on; 600μg/m3 and above corresponds to level 100.)
Specification Parameters
Data Interface: UART TTL, 9600 bps
Power Supply: DC 5±0.5V, Ripple＜50mV
Working Condition: Temp: -15-60℃; Humidity: 0-90% RH
Storage Condition: Temp: -30-70℃; Humidity: 0-90% RH
Weight: 26g
Size: 48mm x 37mm x 12mm
MTTF: ≥30000H
Product Classification
·Synchronous detection of PM1.0, PM2.5, PM10, BSP
·Laser scattering principle
·High accuracy and fast response
·Reliable digital output
·Ultra-low power consumption
·Strong anti-interference capability
·Standard TTL serial port output of data
·Effective large particulate matter detection
·Intelligent identification technology for dust source and particle size
·Integrated calibration
Application Environments
·Air Purifier
·Fresh Air System
·Air Conditioner
·Car Air Purifier
·Air Quality Detector
·Environmental Monitoring
·Handheld Air Quality Detector
Technical Measurement Indexes
| Parameter | Range | Accuracy |
| PM1.0 | 0-1000μg/m3 | ±10% or ±10μg/m3 |
| PM2.5 | 0-1000μg/m3 | ±10% or ±10μg/m3 |
| PM10 | 0-1000μg/m3 | ±25% or ±25μg/m3 |
| BSP (Large Particulate Concentration Levels)* | 0-100Lev | ±25% or ±25μg/m3 |
Specification Parameters
Data Interface: UART TTL, 9600 bps
Power Supply: DC 5±0.5V, Ripple＜50mV
Working Condition: Temp: -15-60℃; Humidity: 0-90% RH
Storage Condition: Temp: -30-70℃; Humidity: 0-90% RH
Weight: 26g
Size: 48mm x 37mm x 12mm
MTTF: ≥30000H
Product Classification
| PN | Range (μg/m3) | Product Type | Packing Specification | L*W*H (mm) |
| PS5308-M/B | 0-1000 | PM1.0, PM2.5, PM10, BSP | 70 pcs/layer, 6 layers/ctn | 510*295*295 |
