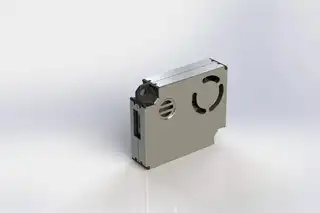

Laser PM2.5 Air Quality Sensor with Compact Structure
Key Specifications / Features
Laser PM2.5 Sensor Factory: Laser PM2.5 Air Quality Sensors, Low Power Consumption, Compact Structure, DC 5±0.5V, Ripple＜50mV, MTTF≥30000 Hours.
Request a quote
Detail Information
Features
·Standard TTL serial port data output
·Low power consumption
·Principle of laser scattering
·Continuous and real-time detection
·Detect particles as small as 0.3μm
·Laser anti-attenuation & constant brightness function
·Compact structure
·Hexahedral metal shielding
Application Environments
·Air Purifier
·Fresh Air System
·Air Conditioner
·Car Air Purifier
·Air Quality Detector
·Environmental Monitoring
·Handheld Air Quality Detector
Specification Parameters
Measurement Type: PM2.5
Measurement Range: 0-1000μg/m3
Measurement Consistency: ≥100μg/m3: ±10%; ＜100μg/m3: ±10μg/m3
Measurement Accuracy (Reference Standard: TSI 8530): ≥100μg/m3: ±10%; ＜100μg/m3: ±10μg/m3
Data Interface: UART TTL, 9600 bps
Inlet and Outlet: Front
Power Supply: DC 5±0.5V, Ripple＜50mV
Working Condition: Temp: -15-60℃; Humidity: 0-90% RH
Storage Condition: Temp: -30-70℃; Humidity: 0-90% RH
Weight: 26g
Size: 48mm x 37mm x 12mm
MTTF: ≥30000H (Intermittent Mode: Intermittent Operation)
Product Classification
·Standard TTL serial port data output
·Low power consumption
·Principle of laser scattering
·Continuous and real-time detection
·Detect particles as small as 0.3μm
·Laser anti-attenuation & constant brightness function
·Compact structure
·Hexahedral metal shielding
Application Environments
·Air Purifier
·Fresh Air System
·Air Conditioner
·Car Air Purifier
·Air Quality Detector
·Environmental Monitoring
·Handheld Air Quality Detector
Specification Parameters
Measurement Type: PM2.5
Measurement Range: 0-1000μg/m3
Measurement Consistency: ≥100μg/m3: ±10%; ＜100μg/m3: ±10μg/m3
Measurement Accuracy (Reference Standard: TSI 8530): ≥100μg/m3: ±10%; ＜100μg/m3: ±10μg/m3
Data Interface: UART TTL, 9600 bps
Inlet and Outlet: Front
Power Supply: DC 5±0.5V, Ripple＜50mV
Working Condition: Temp: -15-60℃; Humidity: 0-90% RH
Storage Condition: Temp: -30-70℃; Humidity: 0-90% RH
Weight: 26g
Size: 48mm x 37mm x 12mm
MTTF: ≥30000H (Intermittent Mode: Intermittent Operation)
Product Classification
| PN | Range (μg/m3) | Product Type | Packing Specification | L*W*H (mm) |
| PS5308A | 0-1000 | PM2.5 | 70 pcs/layer, 6 layers/ctn | 510*295*295 |
