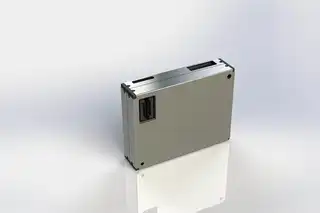

Laser Dust Concentration Sensor for PM2.5 Detection
Key Specifications / Features
Laser Dust Concentration Sensor Supplier: Small Size Laser Dust Sensors, PM2.5 Detection, 0-1000μg/m3 Measurement Range, Side Inlet & Outlet, 9600 bps.
Detail Information
Features
·Real-time detection output
·High anti-interference capability
·Excellent accuracy measurement
·Good sensitivity and consistency
·Minimum particle resolution of 0.3μm in size
·Small size for easy installation and use
·Ultra-thin design
Application Environments
·Air Purifier
·Fresh Air System
·Air Conditioner
·Car Air Purifier
·Air Quality Detector
·Environmental Monitoring
·Handheld Air Quality Detector
Specification Parameters
Measurement Type: PM2.5
Measurement Range: 0-1000μg/m3
Measurement Consistency: ＞100μg/m3: ±10%; ＜100μg/m3: ±10μg/m3
Measurement Accuracy (Reference Standard: TSI 8530): ＞100μg/m3: ±10%; ＜100μg/m3: ±10μg/m3
Data Interface: UART 9600 bps
Inlet and Outlet: Side
Power Supply: DC 5±0.5V
Working Condition: Temp: -15°C - 60°C; Humidity: 0-90% RH
Storage Condition: Temp: -30°C - 70°C; Humidity: 0-90% RH
Weight: 24g
Size: 48mm x 37mm x 12mm
MTTF: ≥30000H (Intermittent Mode: Intermittent Operation)
Product Classification
| PN | Range (μg/m3) | Product Type | Packing Specification | L*W*H (mm) |
| PS5306 | 0-1000 | PM2.5 | 70 pcs/layer, 6 layers/ctn | 510*295*295 |
