ASTM A536 GR. 65-45-12 Y Strainer, AISI 304 Screen, 500 PSI

Name: ASTM A536 GR. 65-45-12 Y Strainer, AISI 304 Screen, 500 PSI
Brand: www.landee.cn
SKU: LD-20241212-YS-01
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Model Number: LD-20241212-YS-01

Key Specifications / Features

This Ductile Iron Y-Type Strainer is manufactured with an ASTM A536 Grade 65-45-12 body. It features a high-quality AISI 304 stainless steel screen for effective filtration, capable of withstanding pressures up to 500 PSI. The strainer is equipped with ANSI/ASME B1.20.1 threaded ends for secure installation and comes with a painted surface.

Ductile Iron Y Strainer 500 PSI Y Strainer ASTM A536 Grade 65-45-12 Y Strainer

Detail Information

Product Item: Threaded Y-Type Strainer

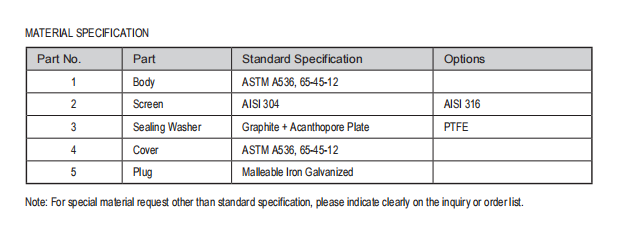

Body Material: Ductile Iron ASTM A536 Grade 65-45-12
Screen Material: AISI 304
Connection Ends: Thread to ANSI/ASME B1.20.1
Working Pressure: 500 PSI
Coating: Painting

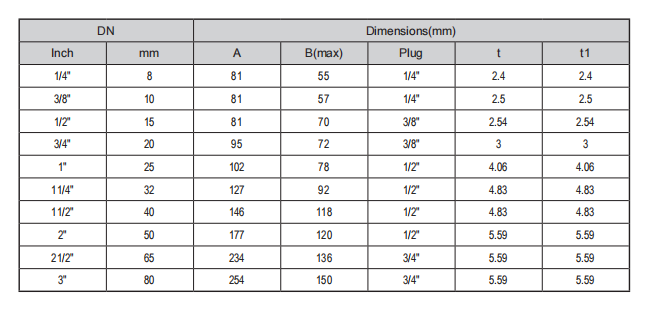

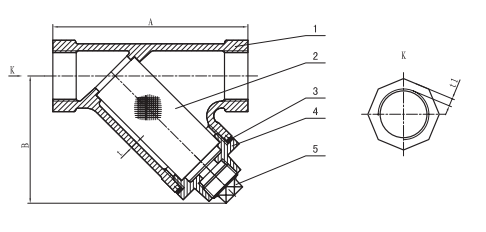

ASTM A536 Grade 65-45-12 Y Strainer Design Drawing
